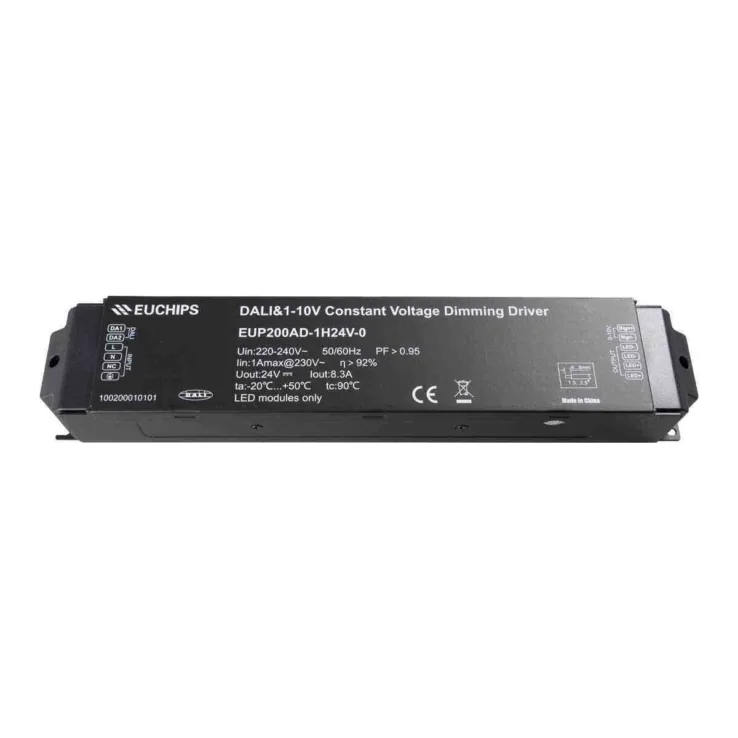

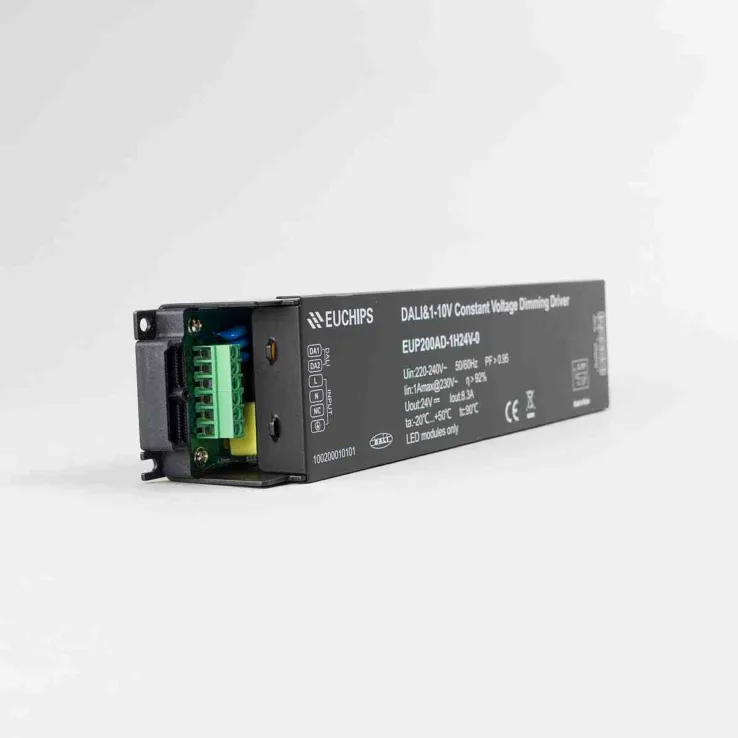

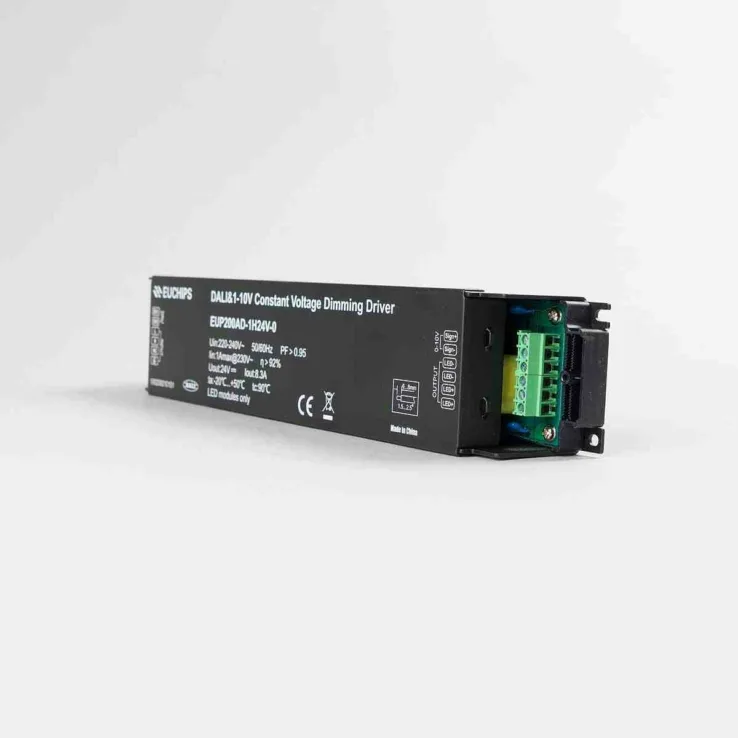

EUP200AD Series DALI Dimmable Constant Voltage LED Drivers 200W

Download Datasheet
Models:
  • EUP200AD-1H12V-0
  • EUP200AD-1H24V-0
Manufacturer: EUCHIPS
Type: Constant Voltage LED Drivers

EUP200AD Series Features:

Single channel constant voltage output

Support a variety of dimming mode (DALI/0/1-10V active signal/adjustable resistance/PWM/Touch DIM)

Other features:

  • High range of input voltage 220VAC - 240VAC
  • Built-in active PFC function
  • Dimming effect smooth, no flicker
  • Over temperature protection; Over voltage protection; Short circuit protection
  • Suitable for indoor LED lighting application, such as LED strips, spot light, wall washer,and so on
Wattage 200 200
Input Voltage 220-240VAC 220-240VAC
Output Current 16.6 8.3
Output Voltage 12V 24V
Output Voltage Options Single Single
Dimensions 310 x 60 x 45 310 x 60 x 45
Working Temperature -20 - +50C
Safety Standards EN61347, GB19510, I/P-O/P: 3000VAC/1min/5mA, L-N:1KV, IEC 62386-101: 2014, IEC 62386-102: 2014; IEC 62386-207: 2009, DALI 1.0
EMC Standards EN50515, EN61000-3-2, EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547
