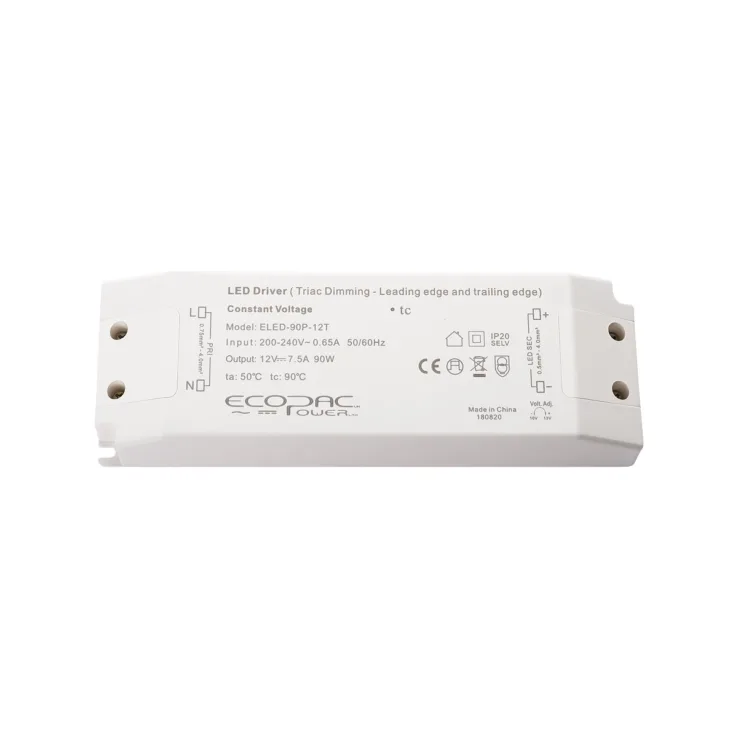

ELED-90P T Series TRIAC Dimmable Constant Voltage LED Drivers 90W

Download Datasheet
Models:
  • ELED-90P-12T
  • ELED-90P-24T
Manufacturer: ELED
Type: Constant Voltage LED Drivers

ELED-90P T Series Features:

Works with leading edge and trailing edge TRIAC dimmers

PWM Output

Output constant voltage

Other features:

  • High efficiency up to 86%
  • Protections: Short circuit/over loading/over temperature/Over Current
  • Cooling by free air convection
  • IP20 design for outdoor installation
  • 3 years warranty
Wattage 90 90
Input Voltage 200-240VAC 200-240VAC
Output Voltage 12 24
Output Voltage Options Single Single
DC output adjustment N/A N/A
Dimensions 180x 60x 35 180x 60x 35
Working Temperature -40 ~ +70°C
Safety Standards EN61347-1 EN61347-2-13
EMC Standards Complianceto EN55015, EN61000-3-2,3 (>60%load)
