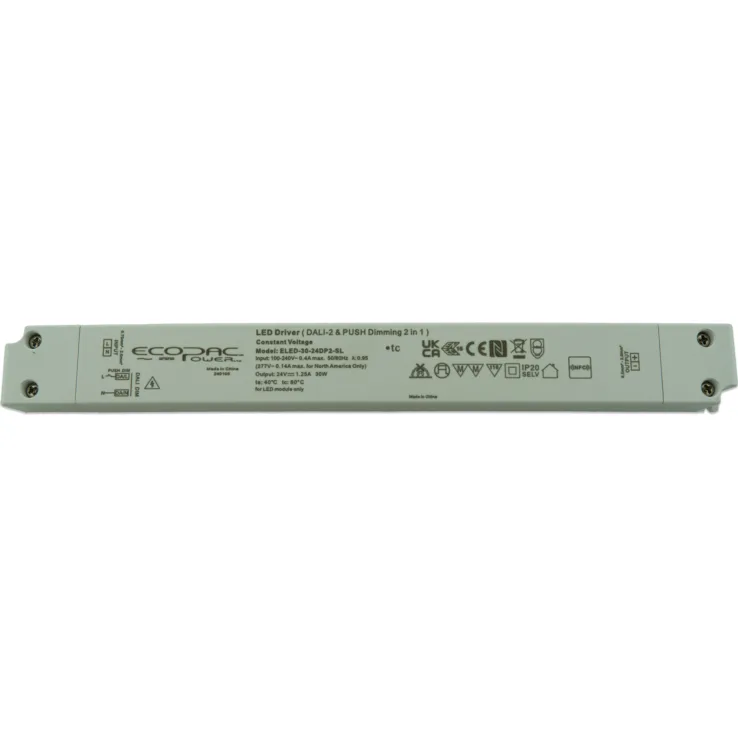

ELED-30-DP2-SL DALI-2 Constant Voltage LED Drivers 30W

Models:	ELED-30-12DP2-SL ELED-30-24DP2-SL ELED-30-48DP2-SL
Manufacturer:	ELED
Type:	Constant Voltage LED Drivers

ELED-30-DP2-SL Features:

30W DALI 2 & Push Dimmable LED Driver

Features:
Constant voltage
DALI & Push dimming function (0-100%)
AC input: 100-277VAC
Built-in active PFC function
Efficiency up to 84%
Protections: Short circuit/ Over load/ Over temperature
Cooling by free air convection
IP20 design for indoor installation
Suitable for intelligent LED lighting
5 years warranty

Spec	ELED-30-12DP2-SL	ELED-30-24DP2-SL	ELED-30-48DP2-SL
Wattage	30	30	30
Input Voltage	100-277VAC	100-277VAC	100-277VAC
Output Current	2.5A	1.25A	0.625A
Output Voltage	12V (12-13.5V adjust by NFC)	24V (24-26V adjust by NFC)	48V (48-50V adjust by NFC)
Dimensions	260x 30 x 18.5 mm	260x 30 x 18.5 mm	260x 30 x 18.5 mm
Working Temperature	-40~+60°C (Refer to derating curve)
Safety Standards	EN61347-1 EN61347-2-13(EU) & UL8750 UL1310(US)
EMC Standards	EN55015 EN61000-3-2,3 (≥50%) (EU) & FCC Part 15 Subpart B(US), EN61000-4-2,3,4,5,6,11 EN61547
