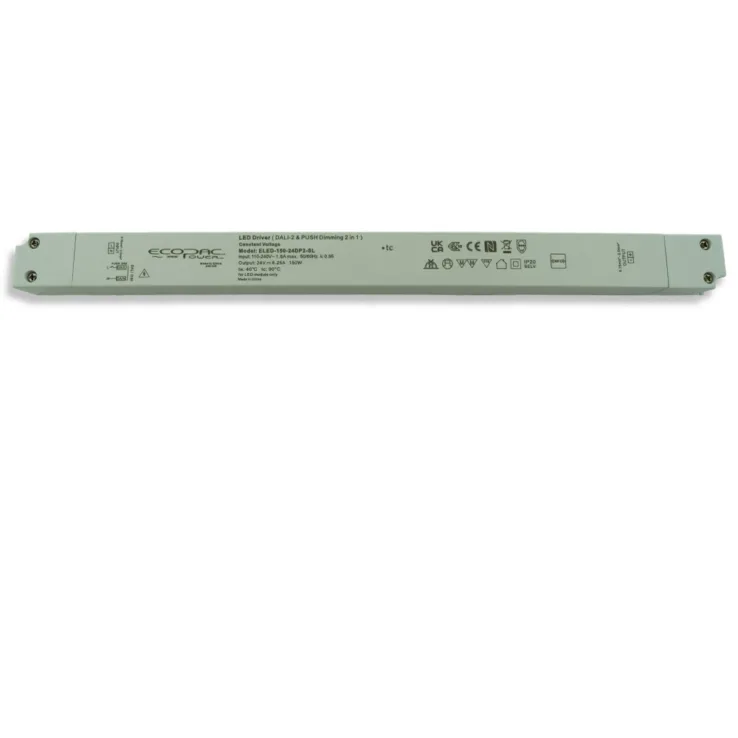

ELED-150-DP2SL DALI-2 Constant Voltage LED Drivers 150W

Models:	ELED-150-12DP2-SL ELED-150-24DP2-SL ELED-150-48DP2-SL
Manufacturer:	ELED
Type:	Constant Voltage LED Drivers

ELED-150-DP2SL Features:

150W DALI 2 & Push Dimmable Slimline LED Driver

Features:
• Constant voltage/ PWM Output (NFC regulation)
• DALI & Push dimming function (0-100%)
• AC input: 100-277VAC
• Built-in active PFC function
• Efficiency up to 93%
• Protections: Short circuit/ Over load/ Over temperature
• Cooling by free air convection
• IP20 design for indoor installation
• Suitable for intelligent LED lighting
• 5 years warranty

Spec	ELED-150-12DP2-SL	ELED-150-24DP2-SL	ELED-150-48DP2-SL
Wattage	150	150	150
Input Voltage	100-277VAC	100-277VAC	100-277VAC
Output Current	12.5A	6.25A	3.12A
Output Voltage	12V (12-13.5V adjust by NFC)	24V (24-26V adjust by NFC)	48V (48-50V adjust by NFC)
Dimensions	367.8 x 29.9 x 22.5mm	367.8 x 29.9 x 22.5mm	367.8 x 29.9 x 22.5mm
Working Temperature	-40~+60°C (Refer to derating curve)
Safety Standards	EN61347-1 EN61347-2-13 (EU) & UL8750 UL1310(US)
EMC Standards	EN55015 EN61000-3-2,3 (≥50%) (EU) & FCC Part 15 Subpart B(US), EN61000-4-2,3,4,5,6,11 EN61547
