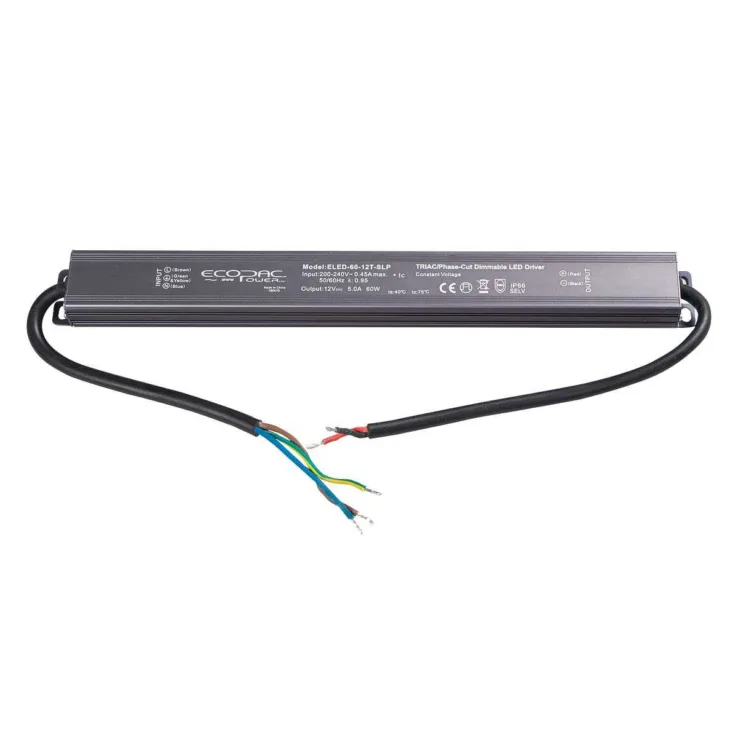

ELED ELED-60P-T-SLP Series TRIAC Dimmable Constant Voltage LED Drivers 60W

Download Datasheet
Models:
  • ELED-60P-12T-SLP
  • ELED-60P-24T-SLP
Manufacturer: ELED
Type: Constant Voltage LED Drivers

ELED-60P-T-SLP Series Features:

Slimline Constant Voltage Driver, Flicker free

Built in active PFC Function

Other features:

  • AC input: 200-240VAC
  • Efficiency up to 85%
  • Dimming range: 0-100%, Load: 10-100%
  • PWM Output
  • Protections: short circuit/ over loading/over temperature
  • Cooling by free air convection
  • IP66 design
Wattage 60 60
Input Voltage 200-240VAC 200-240VAC
Output Current 5A 2.5A
Output Voltage 12V 24V
Output Voltage Options Single Single
DC output adjustment N/A N/A
Dimensions 300 x 32 x 20 300 x 32 x 20
Working Temperature -40 - +60C
Safety Standards EN613471, EN61347-2-13, EN62493, IP66 EN61347-1, EN61347-2-13, EN62493, IP66
EMC Standards EN55015, EN61000-3-2, EN61000-3-3, EN61000-4-2,3,4,5,6,11, EN61547
