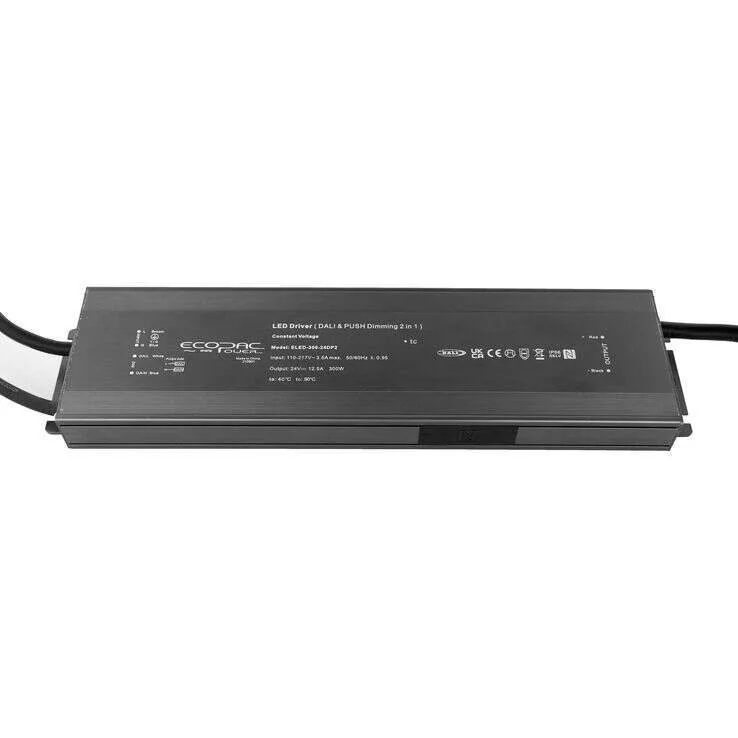

ELED-300-DP2 Constant Voltage LED Drivers 300W

Models:	ELED-300-12DP2 ELED-300-24DP2 ELED-300-48DP2
Manufacturer:	ELED
Type:	Constant Voltage LED Drivers

ELED-300-DP2 Features:

300W DALI 2 & Push Dimmable LED Driver

Features:
• Constant voltage/ PWM Output (NFC regulation)
• DALI & Push dimming function (0-100%)
• AC input: 110-277VAC
• Built-in active PFC function
• Efficiency up to 91%
• Protections: Short circuit/ Over load/
Over temperature
• Cooling by free air convection
• IP66 design for indoor and outdoor installation.
• Suitable for intelligent LED lighting

Spec	ELED-300-12dp2	ELED-300-24DP2	ELED-300-48DP2
Wattage	300	300	300
Input Voltage	100-277VAC	100-277VAC	100-277VAC
Output Current	25a	12.5A	6.25A
Output Voltage	12V (12-13.5V adjust by NFC)	24V (24-25.5V adjust by NFC)	48V (48-49.5V adjust by NFC)
Dimensions	301x 78 x 25.1 mm	301x 78 x 25.1 mm	301x 78 x 25.1 mm
Working Temperature	-40~+60°C (Refer to derating curve)
Safety Standards	EN61347-1, EN61347-2-13, EN62493, UL8750 (US)IP66
EMC Standards	Compliance to EN55015, EN61000-3-2, EN61000-3-3 (≥60% load), Compliance to EN61000-4-2,3,4,5,6,11, EN61547
