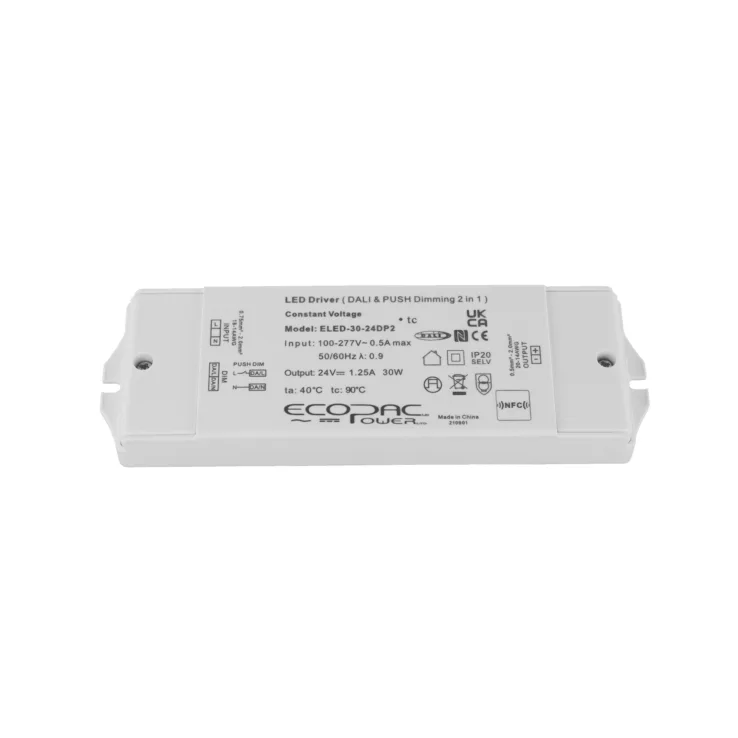

ELED-30-DP2 Series DALI-2 Constant Voltage LED Drivers 30W

Download Datasheet
Models:
  • ELED-30-12DP2
  • ELED-30-24DP2
Manufacturer: ELED
Type: Constant Voltage LED Drivers

ELED-30-DP2 Series Features:

Features:

  • Constant voltage/ PWM Output (NFC regulation)
  • DALI2 & Push dimming function (0-100%)
  • Compatible with DALI and DALI2 dimming system
  • AC input: 100~277VAC
  • Built in active PFC function
  • Efficiency up to 83%
  • Protections: Short circuit/ Over load/Over temperature
  • Cooling by free air convection
  • IP20 design for indoor installation.
  • Suitable for intelligent LED lighting
Wattage 30 30
Input Voltage 100~277VAC 100~277VAC
Output Current 2.5 1.25
Output Voltage 12 24
Dimensions 171.5x 54 x 20 mm 171.5x 54 x 20 mm
Working Temperature -40~60°C
Safety Standards EN61347-1, EN61347-2-13, EN62493, IP20 , UL8750 (US)
EMC Standards Compliance to EN55015, EN61000-3-2, EN61000-3-3 (≥60% load)
