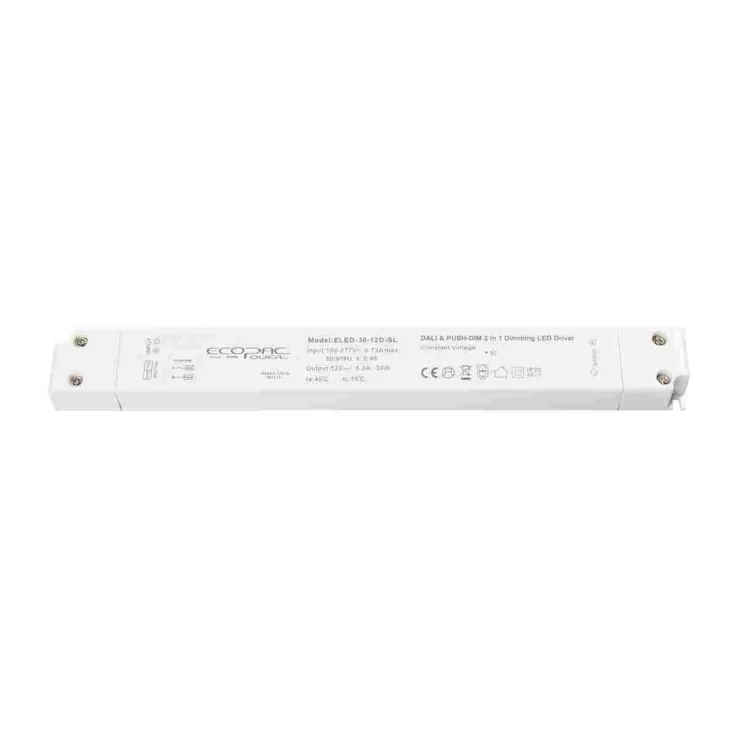

ELED-30-D-SL Series DALI Dimmable Constant Voltage LED Drivers 30W

Download Datasheet
Models:
  • ELED-30-12D-SL
  • ELED-30-24D-SL
Manufacturer: ELED
Type: Constant Voltage LED Drivers

ELED-30-D-SL Series Features:

Slimline Constant Voltage Driver, Flicker free

AC input: 100-277VAC

Other features:

  • Built in active PFC Function, >0.98
  • Efficiency up to 81%
  • Dimming range: 0-100%
  • Protections: short circuit/ over loading/ over temperature
  • Dimming function: Built in DALI interface dimming function conform to DALI Protocol IEC62386
  • 3 years warranty
Wattage 30 30
Input Voltage 100-277VAC 100-277VAC
Output Current 2.5A 1.25A
Output Voltage 12V 24V
Output Voltage Options Single Single
DC output adjustment N/A N/A
Dimensions 260 x 30 x 18.5 260 x 30 x 18.5
Working Temperature -40 - +60°C
Safety Standards EN61347-1, EN61347-2-13 (EU), UL8750 (US)
EMC Standards EN55015, EN61000-3-2 (b %60%load) (EU) and FCC Part 15 (US), Compliance to EN61000-4-2,3,4,5,6,11, EN61547, light industry
