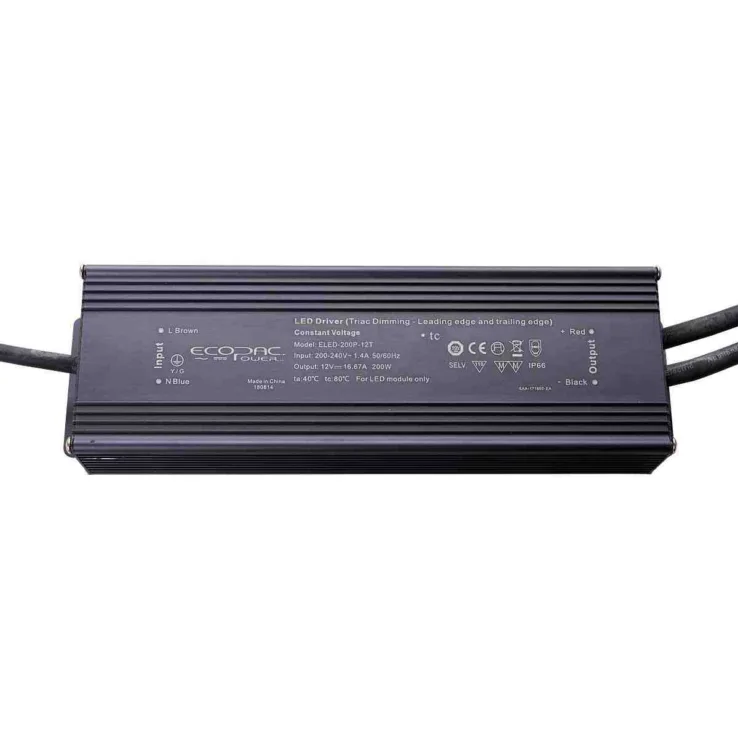

ELED-200P-T Series TRIAC Dimmable Constant Voltage LED Drivers 200W

Download Datasheet
Models:
  • ELED-200P-12T
  • ELED-200P-24T
Manufacturer: ELED
Type: Constant Voltage LED Drivers

ELED-200P-T Series Features:

Constant voltage/ PWM Output

Leading & Trailing edge dimmable

Other features:

  • AC input: 200-240VAC
  • Built-in active PFC function
  • Efficiency up to 87%
  • Protections: Short circuit/ Over load/Over temperature/Over Current
  • Cooling by free air convection
  • IP66 design
Wattage 200 200
Input Voltage 200-240VAC 200-240VAC
Output Current 16.6A 8.3A
Output Voltage 12V 24V
Output Voltage Options Single Single
DC output adjustment N/A N/A
Dimensions 265 x 78 x 47 265 x 78 x 47
Working Temperature -40 - +60°C
Safety Standards EN61347-1, EN61347-2-13, IP66
EMC Standards Compliance to EN55015, EN61000-3-2, 3 (>60%load), EN61000-4-2,3,4,5,6,11, EN61547
