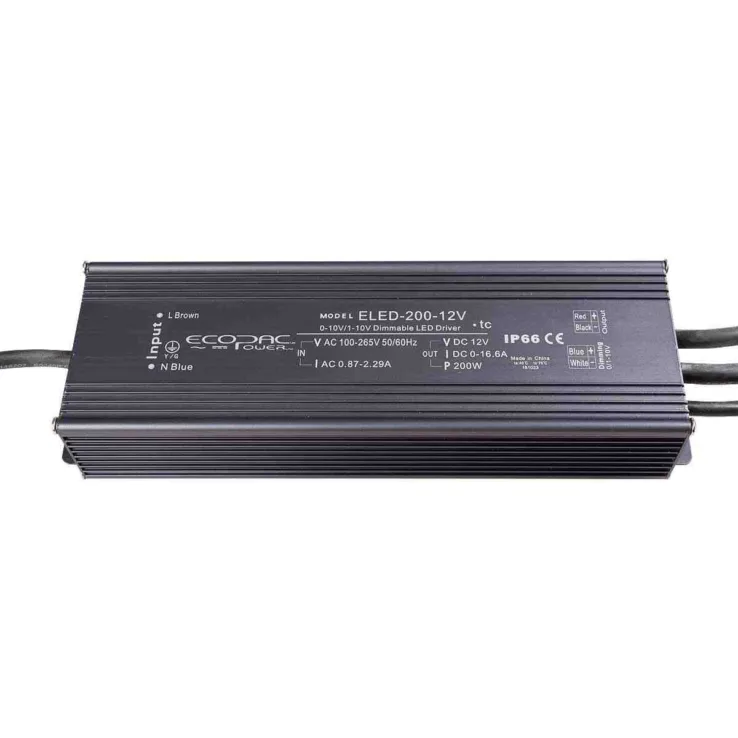

ELED-200-V Series 0-10V Dimmable Constant Voltage LED Drivers 200W

Download Datasheet
Models:
  • ELED-200-12V
  • ELED-200-24V
  • ELED-200-48V
Manufacturer: ELED
Type: Constant Voltage LED Drivers

ELED-200-V Series Features:

Three in one dimming function (0/10Vdc or PWM signal or resistance)

Output constant voltage

Other features:

  • AC input: 200-240VAC
  • Built-in active PFC function
  • Efficiency up to 89%
  • Protections: Short circuit/ Over load/Over Current
  • Cooling by free air convection
  • IP66 design
Wattage 200 200 200
Input Voltage 200-240VAC 200-240VAC 200-240VAC
Output Current 16.67A 8.34A 4.17A
Output Voltage 12V 24V 48V
Output Voltage Options Single Single
DC output adjustment N/A N/A
Dimensions 256 x 78 x 47 256 x 78 x 47 256 x 78 x 47 mm
Working Temperature -40 - +60°C -40~+60°C (Refer to derating curve)
Safety Standards EN61347-1, EN61347-2-13, IP66 EN61347-1, EN61347-2-13
EMC Standards Compliance to EN55015, EN61000-3-2, EN61000-3-3, Compliance to EN61000-4-2,3,4,5,6,11, EN61547, light industry Level (surge 4KV) Criteria A Compliance to EN55015,EN61000-3-2 (≥60%load) Compliance to EN61000-4-2,3,4,5,6,11, EN61547, light industry Level Criteria A
