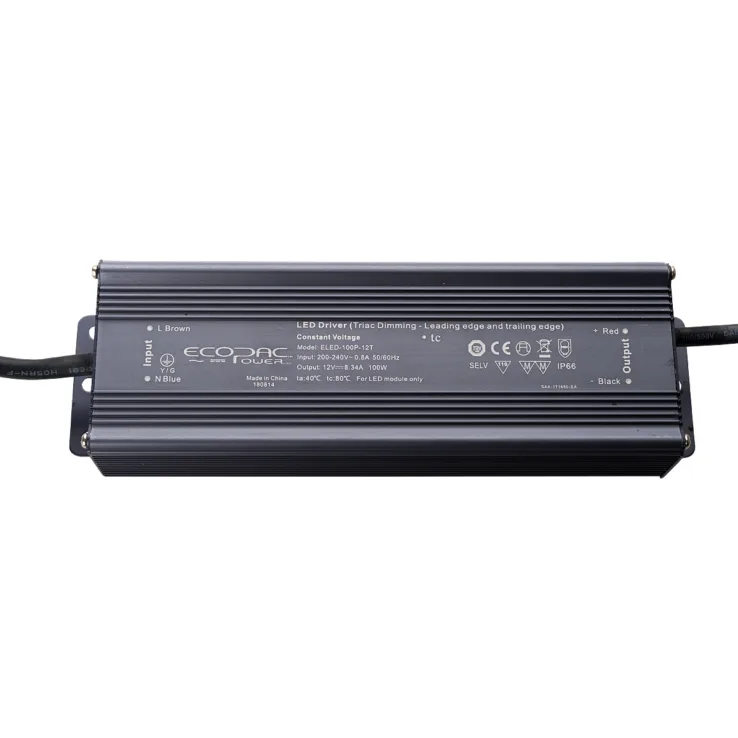

ELED-100P-T Series TRIAC Dimmable Constant Voltage LED Drivers 100W

Download Datasheet
Models:
  • ELED-100P-12T
  • ELED-100P-24T
  • ELED-100P-48T
Manufacturer: ELED
Type: Constant Voltage LED Drivers

ELED-100P-T Series Features:

Constant Voltage Design

Works with leading and trailing edge TRIAC dimmers

PWM Output

Protections: Short circuit/ Over Loading/ Over Temperature

Other features:

  • AC input 200-240VAC
  • IP66 Design for outdoor installation
  • Cooling by free air convection
  • 84% efficiency
  • 3 years warranty
Wattage 100 100 100
Input Voltage 200-240VAC 200-240VAC 200-240VAC
Output Current 8.3A 4.16A 2.09A
Output Voltage 12 24 48
Output Voltage Options Single Single
DC output adjustment N/A N/A
Dimensions 230x 70x 46 230x 70x 46 230 x 70 x 43 mm
Working Temperature -40~+60°C -40~+60°C (Refer to derating curve)
Safety Standards EN61347-1, EN61347-2-13
EMC Standards Compliance to EN55015, EN61000-3-2 (>60% load) Compliance to EN61000-4-2,3,4,5,6,11 EN61547 Compliance to EN55015, EN61000-3-2, 3 (>60%load) Compliance to EN61000-4-2,3,4,5,6,11, EN61547
