MEAN WELL

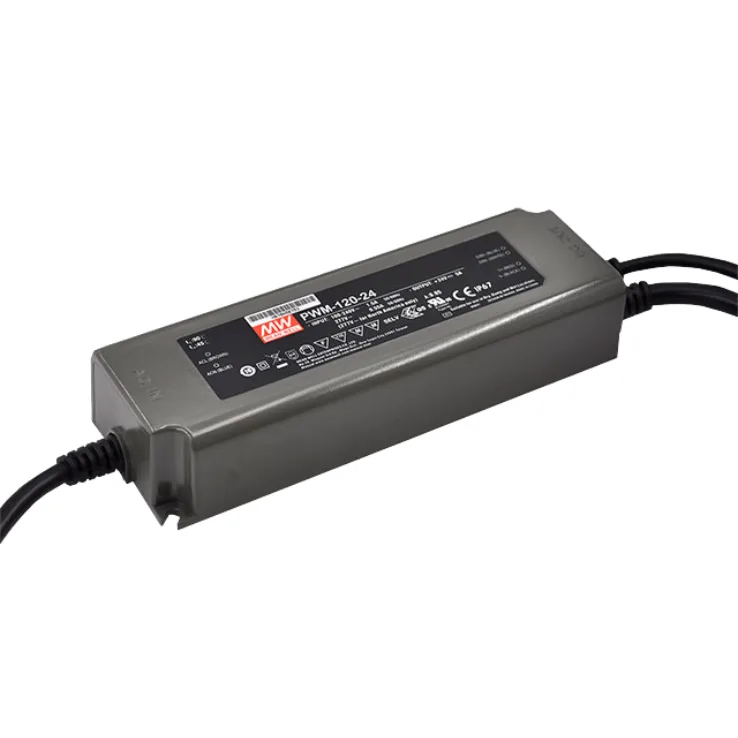

PWM-120 Series 120–122.4W
Download Datasheet
| Models: |
|
| Manufacturer: | MEAN WELL |
PWM-120 Series Features:
0-10V Constant Voltage LED Driver
Constant Voltage PWM style output with frequency up to 4KHz compliant IEEE1789-2015 no-risk
Other features:
- Plastic housing with class II design
- built-in active PFC function
- Standby power consumption <0.5W
- Typical lifetime >50.000 hours
- 5 years warranty
| Wattage | 120 | 120 | 122.4 | 120 |
|---|---|---|---|---|
| Input Voltage | 90-305VAC | 90-305VAC | 90-305VAC | 90-305VAC |
| Output Voltage | 12 | 24 | 36 | 48 |
| Output Voltage Options | Single | Single | Single | Single |
| Dimensions | 191x 63x 37.5 | 191x 63x 37.5 | 191x 63x 37.5 | 191x 63x 37.5 |
| Working Temperature | -40-+70°C | |||
| Safety Standards | UL8750, CSA C22.2 No. 250. 13-12, ENEC EN61347-1, EN61347-2-13,EN62384 independent, IP67 approved; Design refer to EN60335-1 | |||
| EMC Standards | Compliance to EN55015, EN61000-3-2 Class C (>60% load) ; EN61000-3-3, Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547,Light industry level (Surge L-N : 2KV), criteria A | |||
