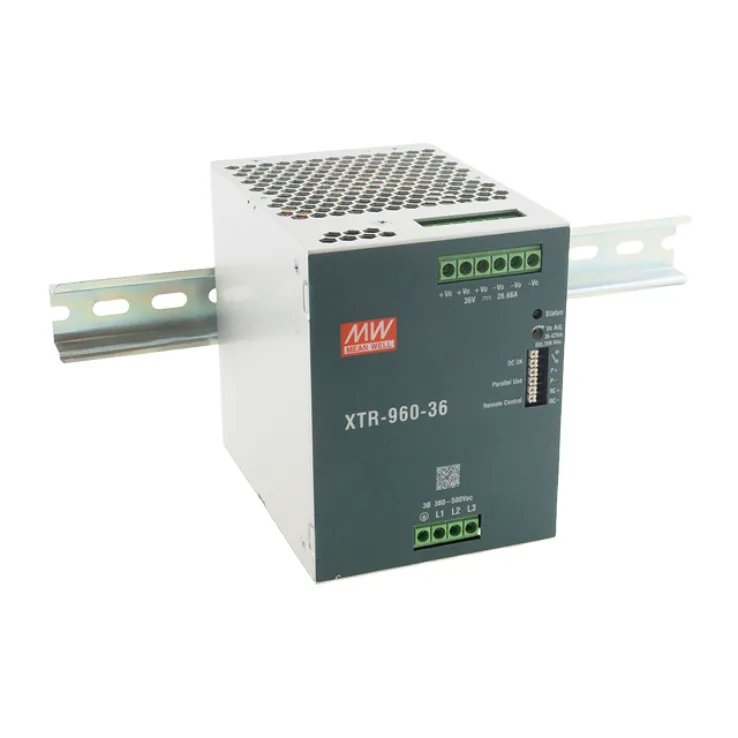

XTR-960 Series DIN Rail Power Supplies 957.6–960W

XTR-960 Series Features:

The XTR-960 series is a 960W AC/DC ultra slim industrial high-reliability DIN rail power supply

Features:

• Three-Phase 320~600Vac wide range input (Dual phase operation possible)
• 96mm Ultra slim width
• High efficiency up to 95.5% and low power dissipation<9W
• 200% Peak Power capability
• Built-in constant current limiting circuit
• Current sharing up to 3840W(3+1) for parallel use
• Protections: Short circuit / Overload / Over voltage / Over temperature
• Fanless design, cooling by free air convection
• Over voltage category III (OVC III)
• -40~+85C wide range operation temperature (>+60C derating)
• Operating altitude up to 5000 meters
• DC OK relay contact
• Ultra low inrush current <10A
• Built-in OR-ing FET
• Tool free terminal block (LA type)
• Conformal coating
• Can be installed on DIN Rail TS-35/7.5 or 15
• 5 years warranty
