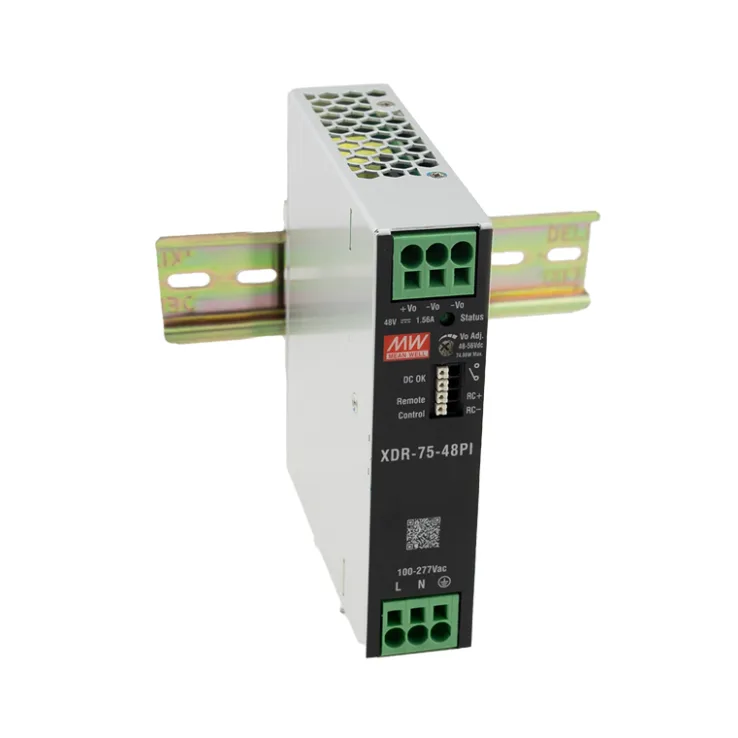

XDR-75 PI DIN Rail Power Supplies 75.6–76.8W

XDR-75 PI Features:

The XDR-75PI series is a 75W AC/DC high-end ultra slim industrial DIN rail power supply.

Features:

• 85~305Vac input (277Vac available)
• 30mm ultra slim width
• High efficiency up to 91% and low power dissipation<2W
• 200% peak power capability
• 600% pulse current capability @2ms
• Built-in constant current limiting circuit
• Protections: Short circuit / Overload / Over voltage / Over temperature
• Fanless design, cooling by free air convection
• Over voltage category III (OVC III)
• -40~+85C wide range operation temperature
• Operating altitude up to 5000 meters
• Built-in DC OK relay contact
• Ultra low inrush current <10A
• Tool free terminal block (LA Type)
• Conformal coating
• Can be installed on DIN rail TS-35/75 or 15
• 5 years warranty
