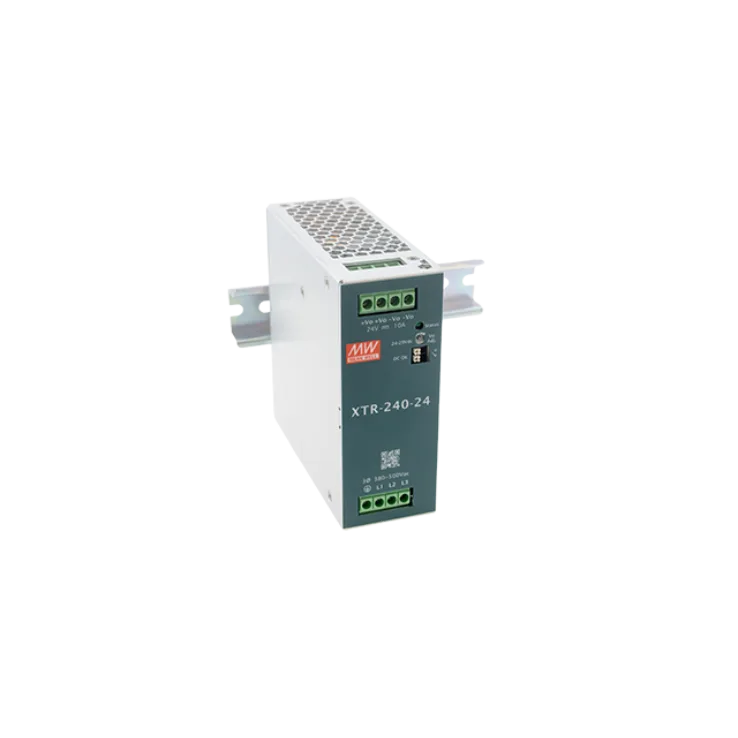

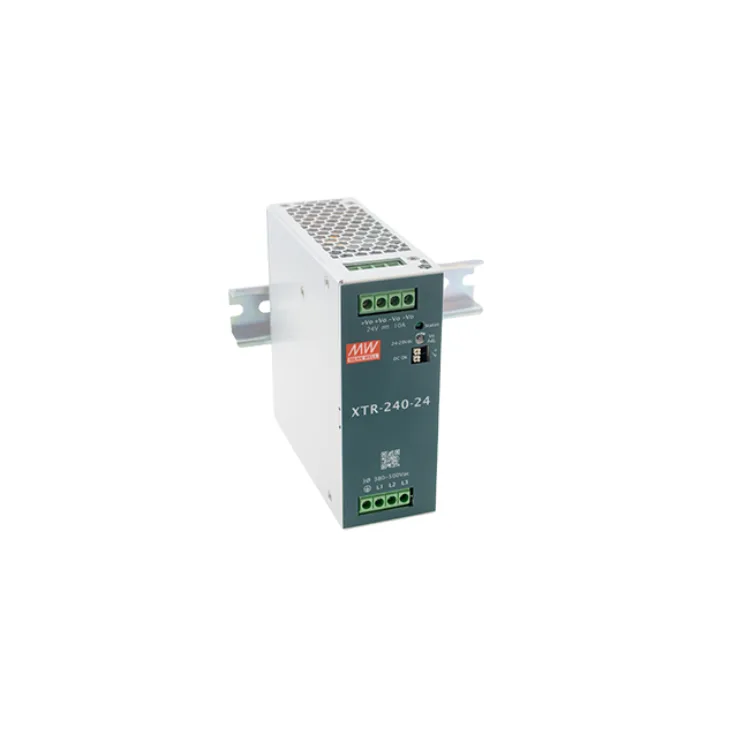

XTR-240 Series DIN Rail Power Supplies 200–240W

XTR-240 Series Features:

The XTR-240 series is a 240W AC/DC ultra slim industrial high-reliability DIN rail power supply.

Features:

• Three-Phase 320~600Vac wide range input, 600~700Vac surge input for 1 sec
• 48mm Ultra slim width
• High efficiency up to 94% and low power dissipation<2.5W
• 150% Peak Power capability, 200% pulse current capability @15ms
• Built-in constant current limiting circuit
• Current sharing up to 960W(3+1)
• Protections: Short circuit / Overload / Over voltage / Over temperature
• Fanless design, cooling by free air convection
• Over voltage category III (OVC III)
• -40~+85C wide range operation temperature (>>+60C derating)
• Operating altitude up to 5000 meters
• DC OK relay contact
• Ultra low inrush current <10A
• OR-in FET (optional)
• Tool free terminal block (LA type)
• Conformal coating
• Can be installed on DIN Rail TS-35/7.5 or 15
• 5 years warranty
