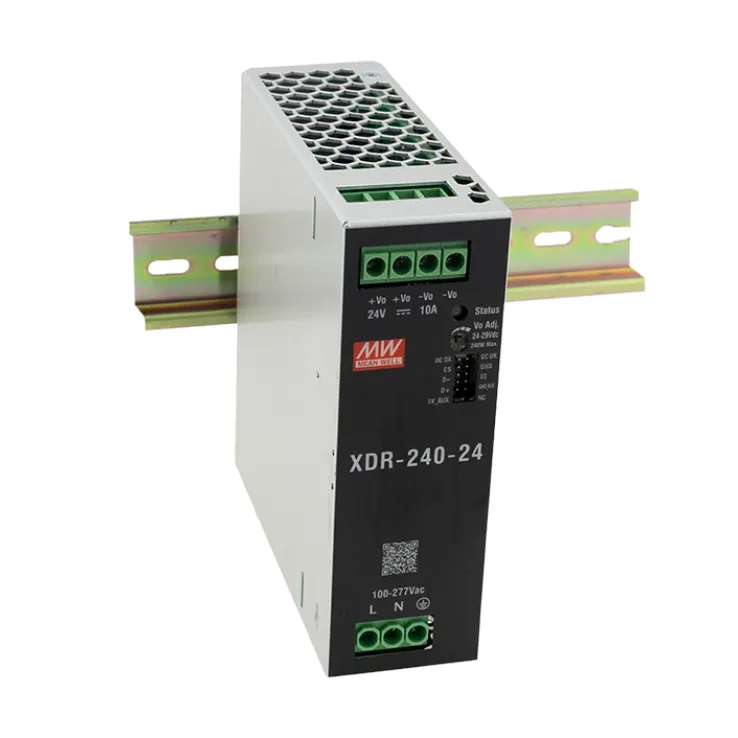

XDR-240 DIN Rail Power Supplies 240W

XDR-240 Features:

The XDR-240 series is a 240W AC/DC high-end ultra slim industrial DIN rail power supply.

Features:

• 85~305Vac input with PFC (277Vac available)
• 40mm ultra slim width
• High efficiency up to 95& and low power dissipation<3W
• Built-in MODBus protocol
• 200% peak power capability
• 600% pulse current capability @15ms
• Built-in constant current limiting circuit
• Current sharing up to 960W (3+1) for parallel use
• Protections: Short circuit / Overload / Over voltage / Over temperature
• Fanless design, cooling by free air convection
• Over voltage category III (OVC III)
• -40~+85C wide range operation temperature (>+60C derating)
• Operating altitude up to 5000 meters
• Built-in DC OK relay contact and remote ON/OFF control
• Ultra low inrush current <10A
• Built-in OR-ing FET
• Tool free terminal block (LA Type)
• Conformal coating
• Can be installed on DIN rail TS-35/75 or 15
• 5 years warranty
