WDR-60 Series DIN Rail Power Supplies 60W

Download Datasheet

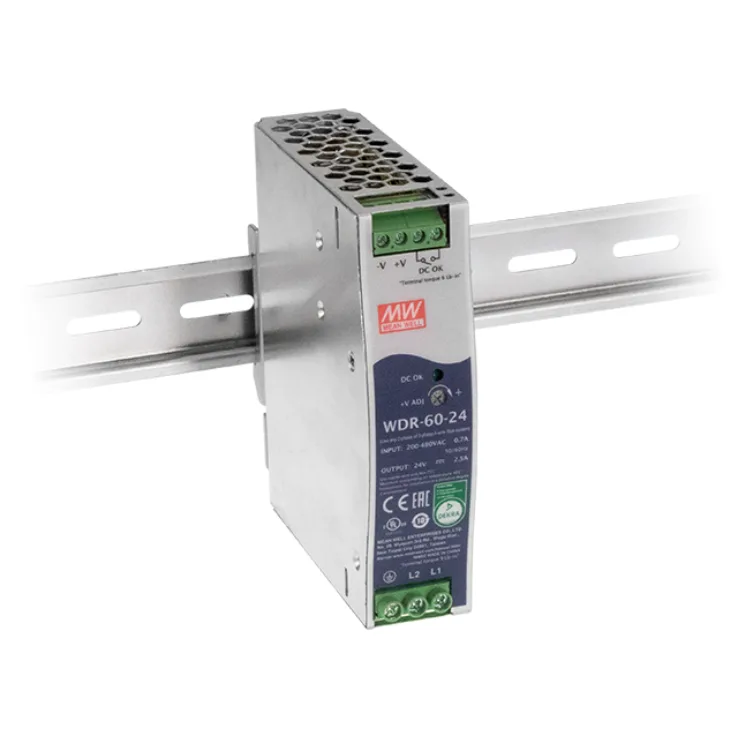

WDR-60 Series

Models:	WDR-60-5 WDR-60-12 WDR-60-24 WDR-60-48
Manufacturer:	MEAN WELL
Type:	DIN Rail Power Supplies

WDR-60 Series Features:

180-550Vac ultra wide input for 1-phase or 2-phase

32mm slim width

Other features:

4.7KVac I/O high isolation(Reinforced isolation)
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection
Can be installed on DIN rail TS-35/7.5 or 15
Over voltage category III
DC OK relay contact
3 years warranty

Spec	WDR-60-5	WDR-60-12	WDR-60-24	WDR-60-48
Wattage	60	60	60	60
Input Voltage	180-550VAC, 254-780VDC	180-550VAC, 254-780VDC	180-550VAC, 254-780VDC	180-550VAC, 254-780VDC
Output Current	10A	5A	2.5A	1.25A
Output Voltage	5	12	24	48
Output Voltage Options	Single	Single	Single	Single
DC output adjustment	5-6V	12-15V	24-29V	48-57V
Dimensions	32 x 125.5 x 102	32 x 125.5 x 102	32 x 125.5 x 102	32 x 125.5 x 102
Working Temperature	-30 - +85°C
Safety Standards	UL61010 EN61558-2-16, EAC TP TC 004 approved; design refer to GL,and EN60204-1(By request)
EMC Standards	EN55032(CISPR32), EN61000-3-2,EN61000-3-3, EN61000-4-2,3,4,5,6,8,11
