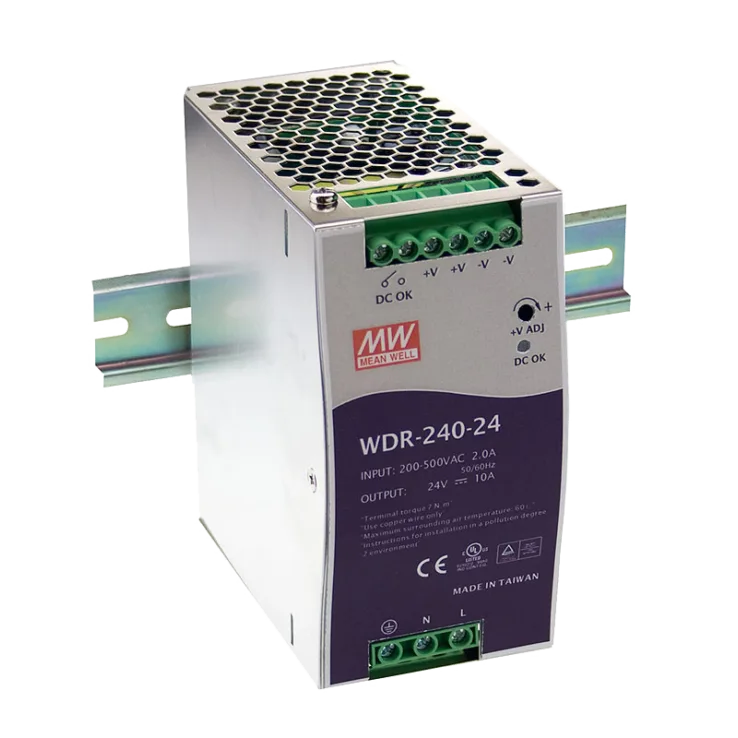

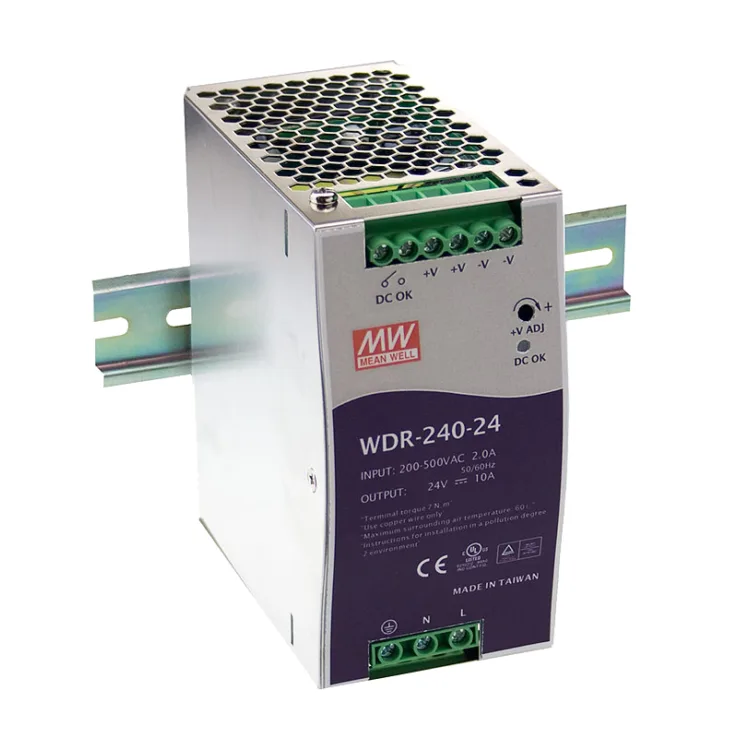

WDR-240 Series DIN Rail Power Supplies 240W

Download Datasheet
Models:
  • WDR-240-24
  • WDR-240-48
Manufacturer: Mean Well
Type: DIN Rail Power Supplies

WDR-240 Series Features:

Single and two phase wide input range 180~550VAC

Built-in active PFC

Protections: Short circuit/ Overload/ Over voltage/ Over temperature

Other features:

  • Cooling by free air convection
  • Built-in constant current limiting circuit
  • Can be installed on DIN rail TS-35/7.5 or 15
  • UL508 (industrial control equipment) approved
  • EN61000-6-2 (EN50082-2) industrial immunity level
  • Built-in DC OK relay contact
  • 100% full load burn-in test
  • 3 years warranty
Wattage 240 240
Input Voltage 180~550VAC(single and two phase); 254~780VDC 180~550VAC(single and two phase); 254~780VDC
Output Current 0~10 0~5.0
Output Voltage 24 48
Output Voltage Options Single Single
DC output adjustment 24~28 48~55V
Dimensions 63x 125.2x 113.5 63x 125.2x 113.5
Working Temperature -30~+70°C (refer to output derating curve)
Safety Standards UL508, IEC60950-1 CB approved by SIQ; Design refer to GL
EMC Standards Compliance to EN55011(CISPR11), EN55022 Class B, EN61000-4-2,3,4,5,6,8,11,EN61000-6-2 (EN50082-2), EN61204-3, heavy industry level
