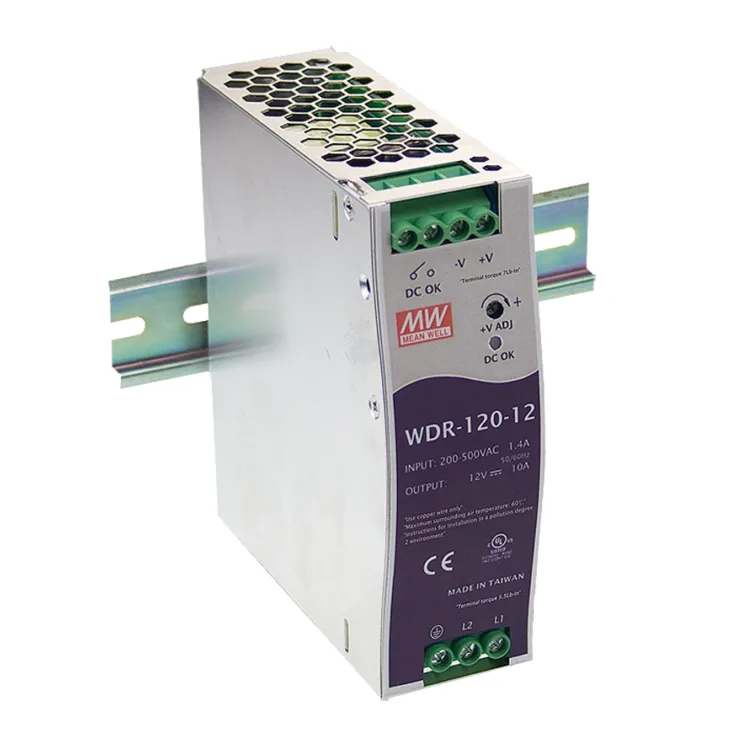

WDR-120 Series DIN Rail Power Supplies 120W

Name: WDR-120 Series | DIN Rail Power Supplies
SKU: WDR-120 Series

WDR-120 Series Features:

Single and two phase wide input range 180-550VAC

Cooling by free air convection

Protections: Short circuit/ Overload/ Over voltage/ Over temperature

Other features:

Spec	WDR-120-12	WDR-120-24	WDR-120-48
Wattage	120	120	120
Input Voltage	180~550VAC(single and two phase): 254~780VDC	85-264VAC	85-264VAC
Output Current	0~10A	0~5.0	0~2.5
Output Voltage	12	24	48
Output Voltage Options	Single	Single	Single
DC output adjustment	12~15V	24~28V	48~53V
Dimensions	40 x 125.2 x 113.5	40 x 125.2 x 113.5	40 x 125.2 x 113.5
Working Temperature	-10~+60°C
Safety Standards	UL508 approved : IEC60950-1 CB approved by SIQ: Design refer to GL	UL508, TUV EN60950-1, approved
EMC Standards	Compliance to EN55011(CISPR11), EN55022 class B, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 (EN50082-2), EN61204-3, heavy industry level	EN55022 class B,EN61000-3-2,-3 , EN61000- 4-2,3,4,5,6,8,11,EN61204-3 , EN61000-6-2 heavy industry level
