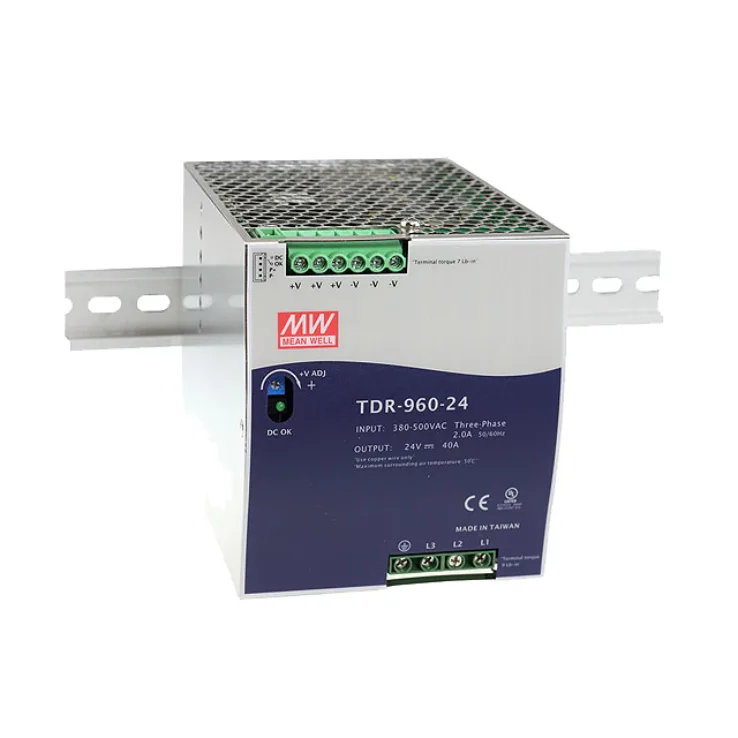

TDR-960 Series DIN Rail Power Supplies 960W

Download Datasheet
Models:
  • TDR-960-24
  • TDR-960-48
Manufacturer: MEAN WELL
Type: DIN Rail Power Supplies

TDR-960 Series Features:

Three-Phase 340~550VAC wide range input (Dual phase operation possible)

Width only 110mm

Protections: Short circuit / Overload / Over voltage / Over temperature

  • High efficiency 94.5% and low power dissipation
  • Cooling by free air convection
  • Built-in active PFC function compliance to EN61000-3-2
  • Built-in constant current limiting circuit
  • Can be installed on DIN rail TS-35/7.5 or 15
  • UL508(industrial control equipment)approved
  • EN61000-6-2(EN50082-2) industrial immunity level
  • Current sharing up to 3840W(3+1)
  • Built-in DC OK relay contact
  • 100% full load burn-in test
  • 3 years warranty
Wattage 960 960
Input Voltage Three-Phase 340~550VAC (Dual phase operation possible) 480~780VDC Three-Phase 340~550VAC (Dual phase operation possible) 480~780VDC
Output Current 0~40A 0~20A
Output Voltage 24 48
Output Voltage Options Single Single
DC output adjustment 24~28V 48~55V
Dimensions 110x 125.2x 150 110x 125.2x 150
Working Temperature 0~+40°C @ 100% load, 60°C @ 50% load 0~40°C@100%, -10°C@80%, 60°C@60% load
Safety Standards UL508 approved, IEC60950-1 CB approved by SIQ
EMC Standards Compliance to EN55022 (CISPR22), EN61204-3 Class B, EN61000-3-2,-3, EN61000-4-2,3,4,5,6,8,11, EN55024, EN61000-6-2 (EN50082-2), EN61204-3, heavy industry level, criteria A
