MEAN WELL

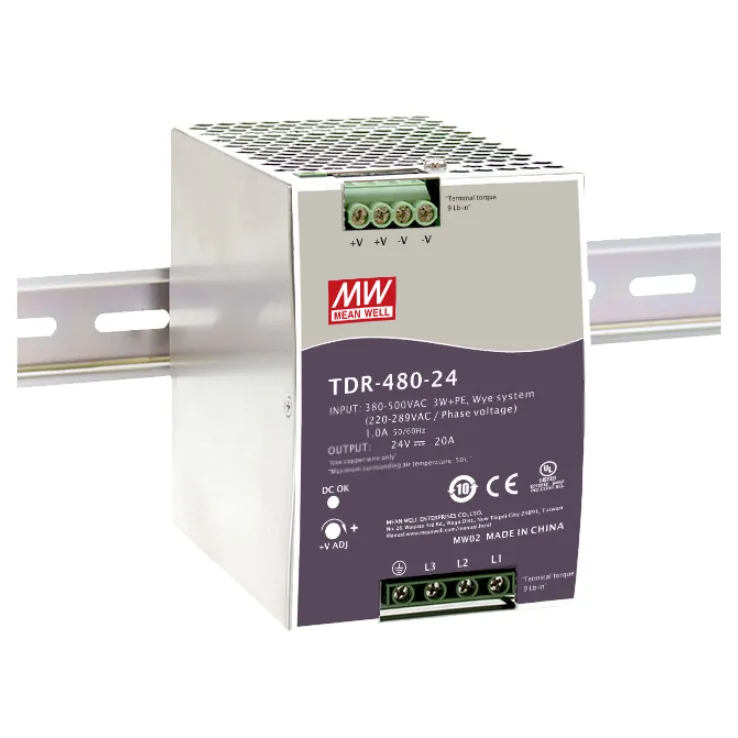

TDR-480 Series DIN Rail Power Supplies 480W
Download Datasheet
| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | DIN Rail Power Supplies |
TDR-480 Series Features:
Three-Phase 340 ~ 550VAC wide range input (Dual phase operation possible)
High efficiency 93% and low power dissipation
Width only 85.5mm
Protections: Short circuit/ Overload/ Over voltage/ Over temperature
Other features:
- Built-in active PFC function compliance to EN61000-3-2
- Built-in constant current limiting circuit
- Can be installed on DIN rail TS-35/7.5 or 15
- Cooling by free air convection
- UL508 (Industrial control equipment) approved
- EN61000-6-2(EN50082-2) industrial immunity level
- Optional DC OK relay contact
- 3 year warranty
| Wattage | 480 | 480 |
|---|---|---|
| Input Voltage | 340-550VAC | 340-550VAC |
| Output Current | 20A | 10A |
| Output Voltage | 24 | 48 |
| Output Voltage Options | Single | Single |
| DC output adjustment | 24-28V | 48-55V |
| Dimensions | 85.5x 125.2x 128.5 | 85.5x 125.2x 128.5 |
| Working Temperature | -30-+70°C | |
| Safety Standards | UL508, IEC60950-1 CB approved by UL | |
| EMC Standards | Compliance to EN55022 (CISPR22), EN55032 (CISPR32) / EN61204-3, EN61000-3-2, EN61000-3-3. Compliance to EN55024, EN60601-1-2, EN61204-3, EN61000-4-2,3,4,5,6,8,11 | |
