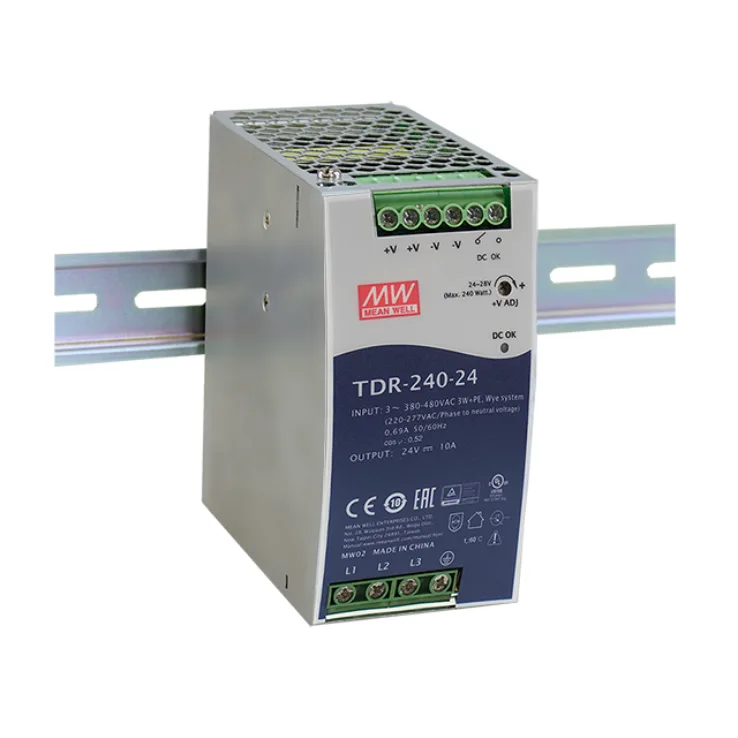

TDR-240 Series DIN Rail Power Supplies 240W

TDR-240 Series Features:

Three Phase 340-550VAC wide range input

63mm slim profile (width)

Other features:

Spec	TDR-240-24	TDR-240-48
Wattage	240	240
Input Voltage	Three-Phase 340 ~ 550VAC (Dual phase operation possible in connecting L1,L3,FG or L2,L3,FG) or 480 ~ 780VDC	Three-Phase 340 ~ 550VAC (Dual phase operation possible in connecting L1,L3,FG or L2,L3,FG) or 480 ~ 780VDC
Output Current	0-10A	0-5A
Output Voltage	24	48
Output Voltage Options	Single	Single
DC output adjustment	24-28V	48-55V
Dimensions	63 x 125.2 x 113.5	63 x 125.2 x 113.5
Working Temperature	-30 - +70°C
Safety Standards	UL61010-1, UL61010-2-201, EN61558-1, EN61558-2-16, EAC TP TC 004 approved
EMC Standards	EN55032(CISPR32)/EN61204-3, EN61000-3-2, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11
