MEAN WELL

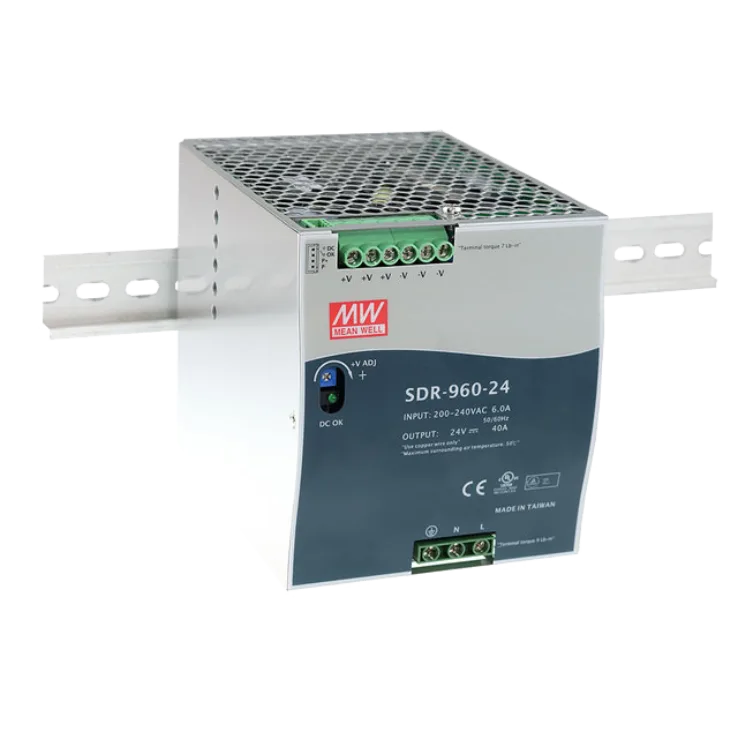

SDR-960 Series DIN Rail Power Supplies 960W
Download Datasheet
| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | DIN Rail Power Supplies |
SDR-960 Series Features:
Width only 110mm
Built-in active PFC function compliance to EN61000-3-2
Protections: Short circuit / Overload / Over voltage / Over temperature
Other features:
- AC input 180~264VAC
- 130% peak load capability
- High efficiency 94% and low power dissipation
- Cooling by free air convection
- Built-in constant current limiting circuit
- Can be installed on DIN rail TS-35/7.5 or 15
- UL508(industrial control equipment)approved
- EN61000-6-2(EN50082-2) industrial immunity level
- Current sharing up to 3840W(3+1)
- Built-in DC OK relay contact
- 100% full load burn-in test
- 3 years warranty
| Wattage | 960 | 960 |
|---|---|---|
| Input Voltage | 180~264VAC 254~370VDC | 180~264VAC 254~370VDC |
| Output Current | 0~40 | 0~20 |
| Output Voltage | 24 | 48 |
| Output Voltage Options | Single | Single |
| DC output adjustment | 24~28V | 48 ~ 55V |
| Dimensions | 110x 125.2x 150 | 110x 125.2x 150 |
| Working Temperature | -25~+70°C | |
| Safety Standards | UL508, UL60950-1, TUV EN60950-1 approved | |
| EMC Standards | Compliance to EN55022 (CISPR22), EN61204-3 , EN61000-3-2,-3, EN61000-4-2,3,4,5,6,8,11, EN55024, EN61000-6-2 (EN50082-2), EN61204-3, heavy industry level, criteria A | |
