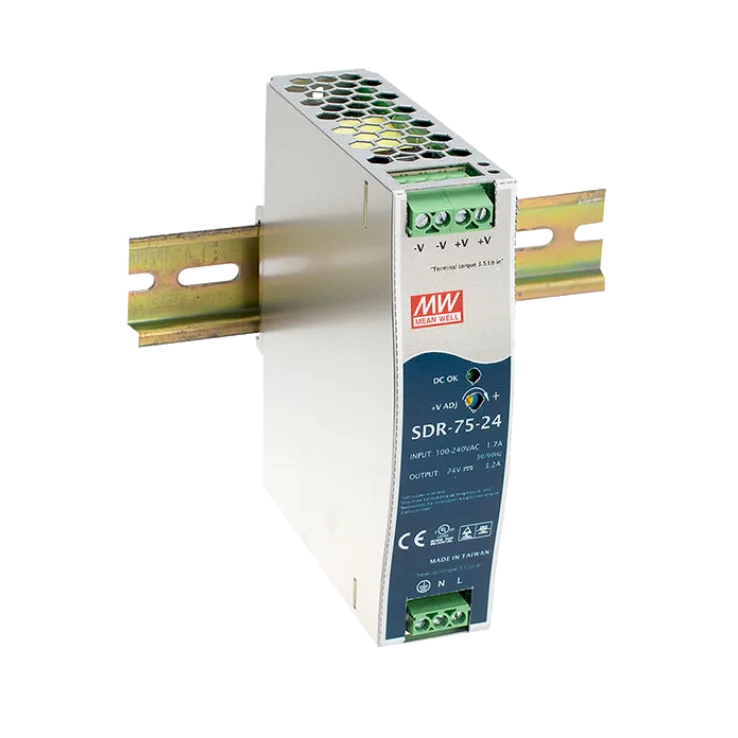

SDR-75 Series DIN Rail Power Supplies 76–77W

Download Datasheet
Models:
  • SDR-75-12
  • SDR-75-24
  • SDR-75-48
Manufacturer: Mean Well
Type: DIN Rail Power Supplies

SDR-75 Series Features:

High efficiency 90% and low power dissipation

Can be installed on DIN rail TS-35/7.5 or 15

Protections: Short circuit / Overload / Over voltage / Over temperature

Other features:

  • Cooling by free air convection
  • Can be installed on DIN rail TS-35/7.5 or 15
  • UL 508 (industrial control equipment) approved
  • EN61000-6-2(EN50082-2) industrial immunity level
  • Built-in DC ok relay contact
  • 100% full load burn-in test
  • 150% peak load capability
  • 3 years warranty
Wattage 76 77 77
Input Voltage 88~264VAC, 124~370VDC 88~264VAC, 124~370VDC 88~264VAC, 124~370VDC
Output Current 0~6.3 0~3.2 0~1.6
Output Voltage 12 24 48
Output Voltage Options Single Single Single
DC output adjustment 12~14V 24~28V 48~55V
Dimensions 32x 125.2x 102 32x 125.2x 102 32x 125.2x 102
Working Temperature -25~+70°C
Safety Standards UL508, TUV EN60950-1 approved, design refer to GL
EMC Standards Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3, EN61000-4-2,3,4,5,6,8,11, EN55024, EN61000-6-2 (EN50082-2), EN61204-3, heavy industry level, criteria A, SEMI F47 approved
