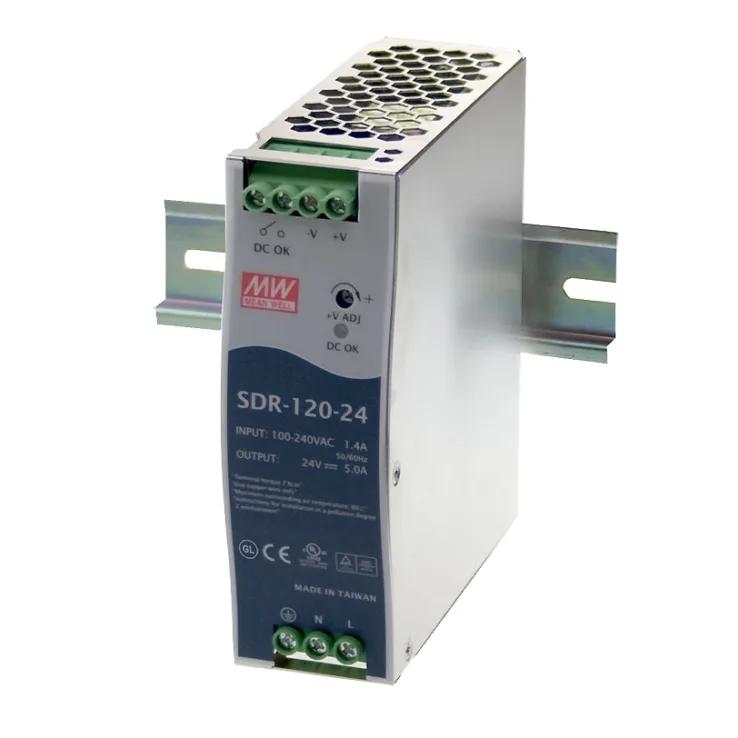

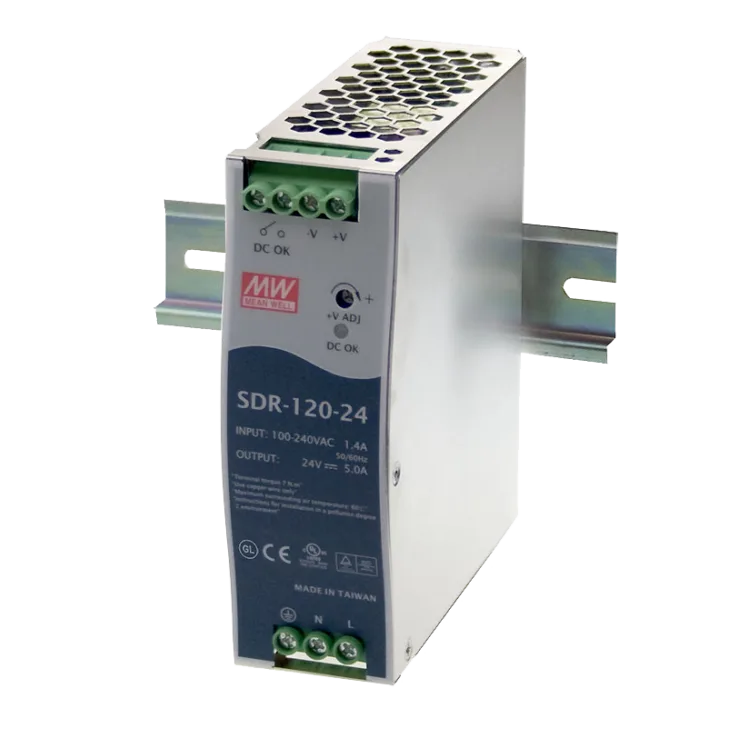

SDR-120 Series DIN Rail Power Supplies 120W

Download Datasheet
Models:
  • SDR-120-12
  • SDR-120-24
  • SDR-120-48
Manufacturer: Mean Well
Type: DIN Rail Power Supplies

SDR-120 Series Features:

Built-in active PFC function, PF>0.93

Universal AC input / Full range

Protections: Short circuit / Overload / Over voltage / Over temperature

Other features:

  • Can be installed on DIN rail TS-35 / 7.5 or 15
  • Cooling by free air convection
  • UL508(industrial control equipment) approved
  • EN6100-2( EN50082-2) industrial immunity level
  • Built-in DC OK relay contact
  • 150% peak load capacity
  • Comply with GL and SEMI f47
  • 3 years warranty
Wattage 120 120 120
Input Voltage 85-264VAC,120-370VDC 88~264VAC, 124~370VDC 88~264VAC, 124~370VDC
Output Current 0~10 0~5 48V ,0~2.5A
Output Voltage 12 24 48
Output Voltage Options Single Single Single
DC output adjustment 12~14V 24~28V 48~55V
Dimensions 40 x 125.2 x 113.5 40 x 125.2 x 113.5 40 x 125.2 x 113.5
Working Temperature -25~+70°C
Safety Standards UL60950-1, TUV EN60950-1 GL approved UL508, TUV EN60950-1, GL approved UL60950-1, TUV EN60950-1 GL approved
EMC Standards Compliance to EN55022 class B, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 (EN50082-2), EN61204-3, Heavy industry level, SEMI F47, GL
