MEAN WELL MEAN WELL logo

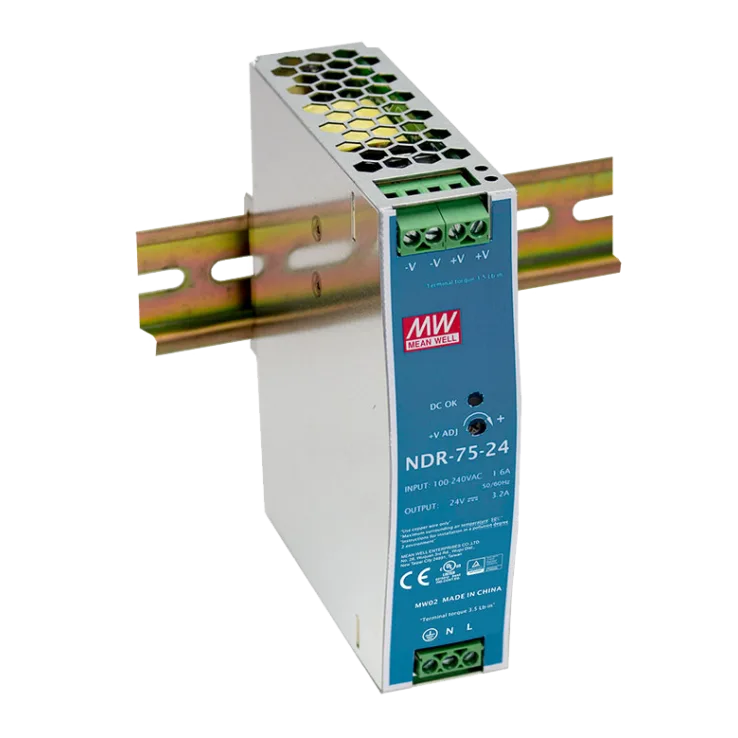

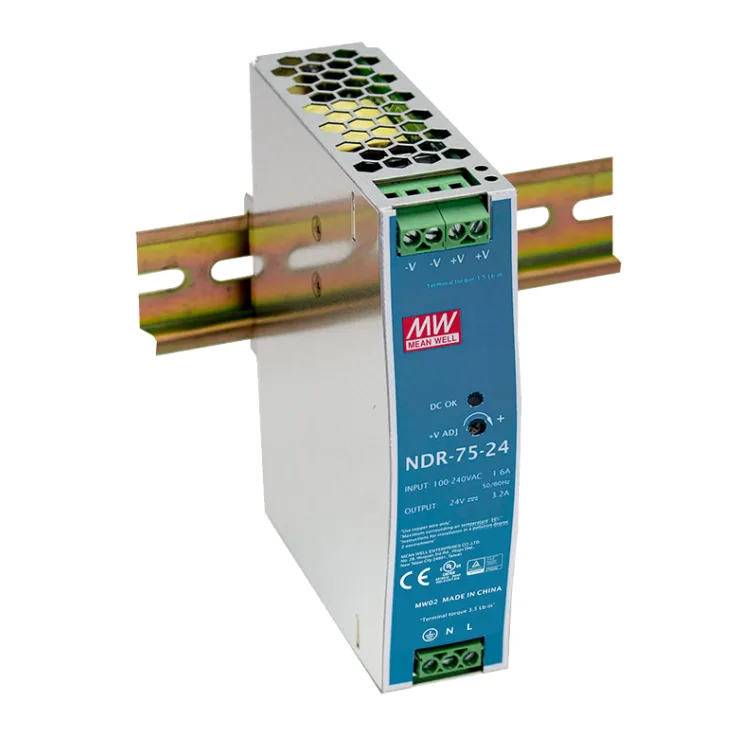

NDR-75 Series DIN Rail Power Supplies 75.6–76.8W

Download Datasheet
Models:
  • NDR-75-12
  • NDR-75-24
  • NDR-75-48
Manufacturer: MEAN WELL
Type: DIN Rail Power Supplies

NDR-75 Series Features:

  • Universal AC input / Full range
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Cooling by free air convection
  • Can be instaled on DIN rail TS-35/7.5 or 15
  • UL 508 (industrial control equipment) approved
  • EN61000-6-2 (EN500082-2) Industrial immunity level
  • 100% full load burn-in test
  • 3 years warranty
Wattage 75.6 76.8 76.8
Input Voltage 90-264VAC 90-264VAC 90-264VAC
Output Current 6.3A 3.2A 1.6A
Output Voltage 12 24 48
Output Voltage Options Single Single Single
Dimensions 32x 125.2x 103 32x 125.2x 104 32x 125.2x 105
Working Temperature -20-+70°C
Safety Standards UL508, TUV EN60950-1 approved
EMC Standards Compliance to EN55022 (CISPR22), EN61204-3 Class B, EN61000-3-2,-3, Compliance to EN61000-4,-2,3,4,5,6,8,11, EN55024, EN61000-6-2 (EN50082-2), EN61204-3, heavy Industry level, criteria A
