MEAN WELL

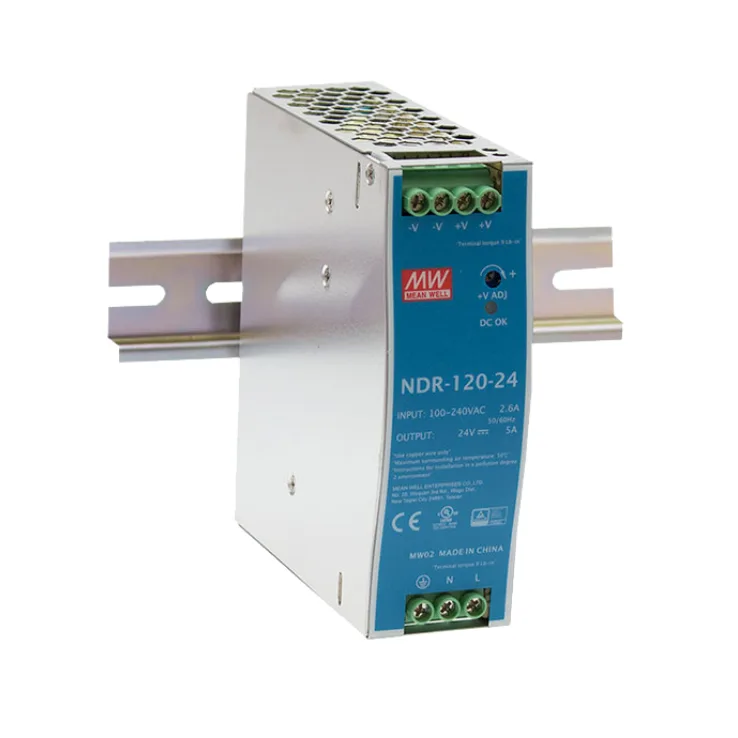

NDR-120 Series DIN Rail Power Supplies 120W
Download Datasheet
| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | DIN Rail Power Supplies |
NDR-120 Series Features:
- Universal AC input / Full range
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Cooling by free air convection
- Can be instaled on DIN rail TS-35/7.5 or 15
- UL 508 (industrial control equipment) approved
- EN61000-6-2 (EN500082-2) Industrial immunity level
- 100% full load burn-in test
- 3 years warranty
| Wattage | 120 | 120 | 120 |
|---|---|---|---|
| Input Voltage | 90-264VAC | 90-264VAC | 90-264VAC |
| Output Current | 10A | 5A | 2.5A |
| Output Voltage | 12 | 24 | 48 |
| Output Voltage Options | Single | Single | Single |
| DC output adjustment | 12-14V | 24-28V | 48-55V |
| Dimensions | 40x 125.2x 113.6 | 40x 125.2x 113.7 | 40x 125.2x 113.8 |
| Working Temperature | -20-+70°C | ||
| Safety Standards | UL508, TUV EN60950-1 approved | ||
| EMC Standards | Compliance to EN55022 (CISPR22), EN61204-3 Class B, EN61000-3-2,-3, Compliance to EN61000-4,-2,3,4,5,6,8,11, EN55024, EN61000-6-2 (EN50082-2), EN61204-3, heavy Industry level, criteria A | ||
