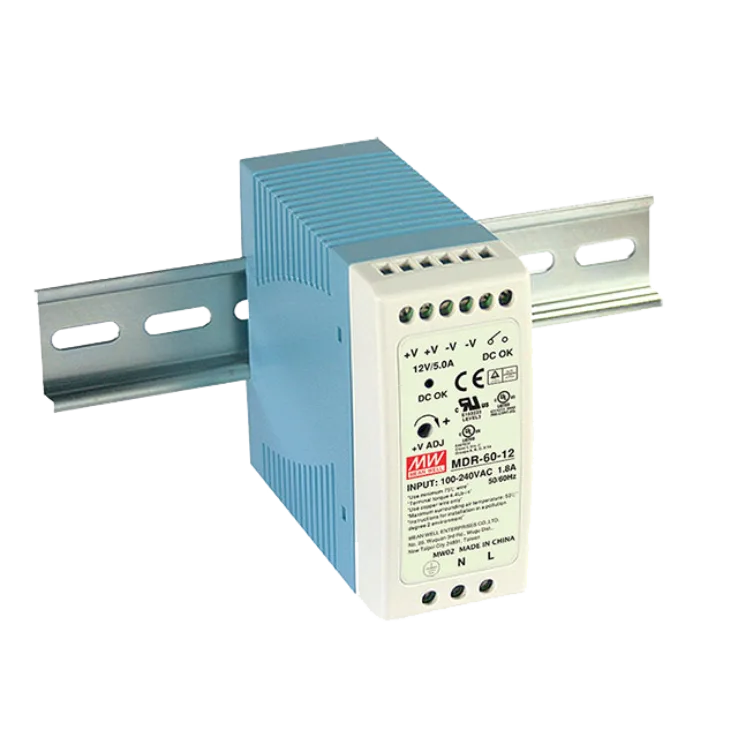

MDR-60 Series DIN Rail Power Supplies 50–60W

MDR-60 Series Features:

No load power consumption <0.75W

Installed on DIN rail TS35 / 7.5 or 15

Protections: Short circuit / Overload / Over voltage

Spec	MDR-60-5	MDR-60-12	MDR-60-24	MDR-60-48
Wattage	50	60	60	60
Input Voltage	85-264VAC, 120-370VDC	85-264VAC, 120-370VDC	85-264VAC, 120-370VDC	85-264VAC, 120-370VDC
Output Current	0~10.0	0~5.00	0~2.50	0~1.25
Output Voltage	5	12	24	48
Output Voltage Options	Single	Single	Single	Single
DC output adjustment	5~6V	12~15V	24~30V	48~56V
Dimensions	40 x 90 x 100	40 x 90 x 100	40 x 90 x 100	40 x 90 x 100
Working Temperature	0~+65°C
Safety Standards	UL508, TUV EN60950-1, approved	UL508, TUV EN60950-1 approved		UL508, TUV EN60950-1, approved, NEC class 2 compliant
EMC Standards	EN55022 class B,EN61000-3-2,-3 , EN61000- 4-2,3,4,5,6,8,11,EN61204-3 , EN61000-6-2 heavy industry level
