ICL-28 Series DIN Rail Power Supplies W

Download Datasheet
Models:

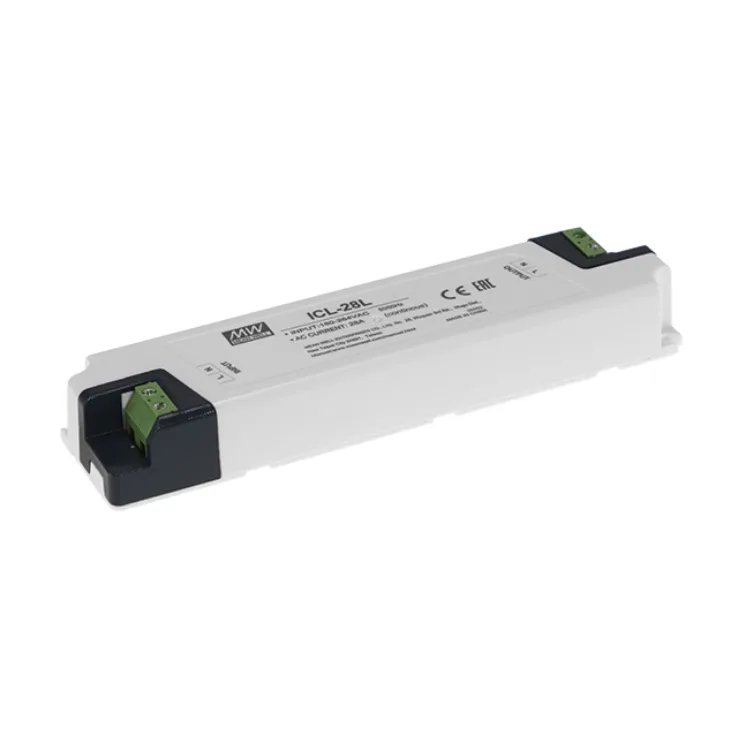

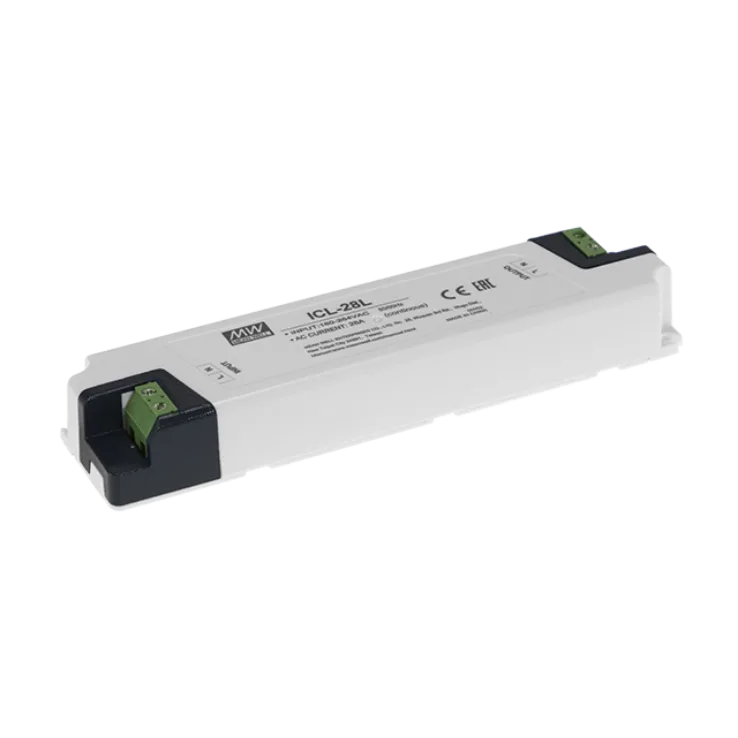

  • ICL-28L

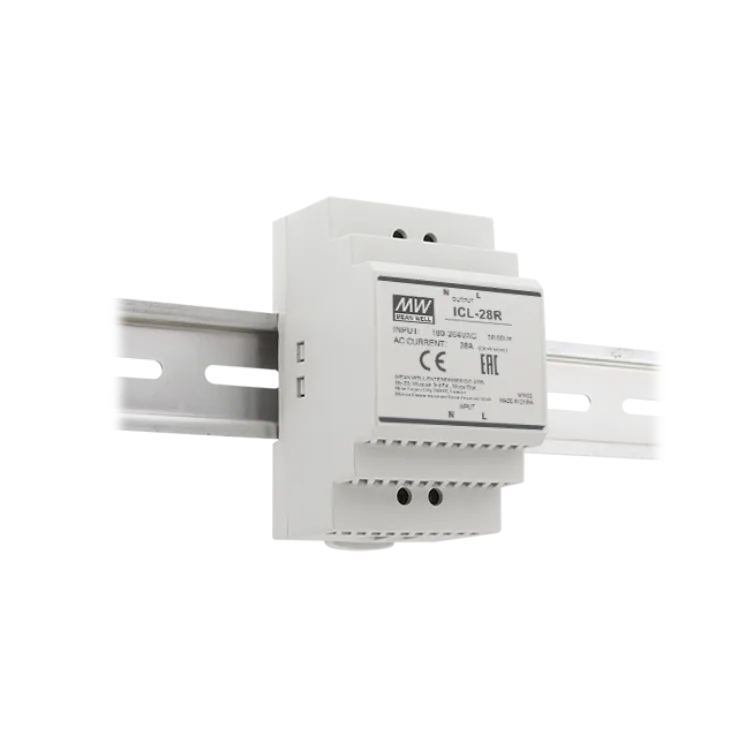

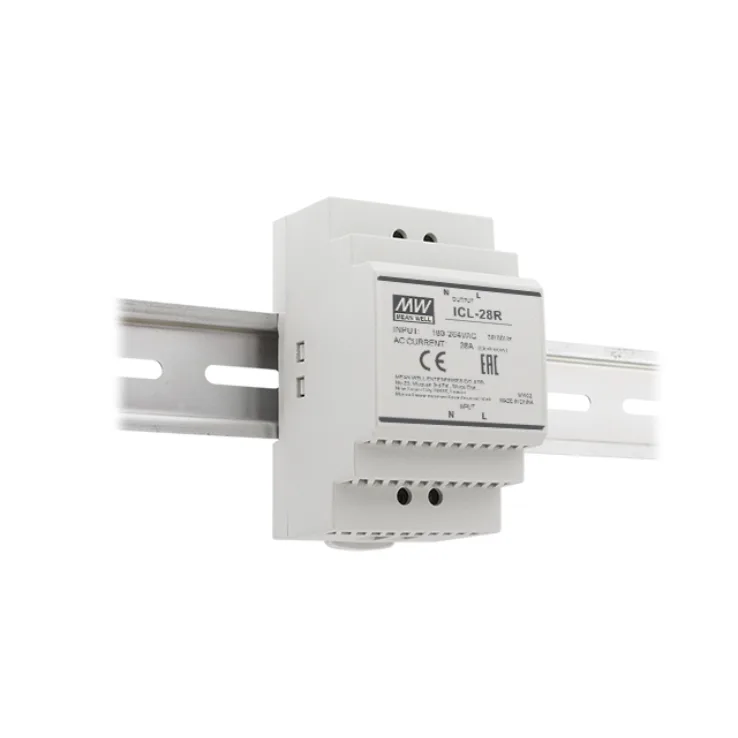

  • ICL-28R
Manufacturer: MEAN WELL
Type: DIN Rail Power Supplies

ICL-28 Series Features:

The ICL-28 is a 28A inrush current limiter that can be used to reduce the high starting current due to capacitive load or inductive causing the circuit breaker to be false triggered.

Features:

  • 48A inrush limiting current, 28A continues
  • 180~264VAC AC input
  • Integrated bypass relay, no simple NTC
  • Internal thermal protection
  • Installed on DIN Rail TS35/7.5 or 15 (ICL-28R)
  • -30~+70°C wide working temperature
  • Over voltage category III
  • Operating altitude up to 5000 meters(Note.2)
Input Voltage 180~264VAC 180~264VAC
Dimensions 175*42*24mm 52.5*90*54.5mm
Working Temperature -30~+70°C
Safety Standards IEC51257*1(LVD)
EMC Standards EN55032, EN61000-3-2, EN61000-3-3
