MEAN WELL

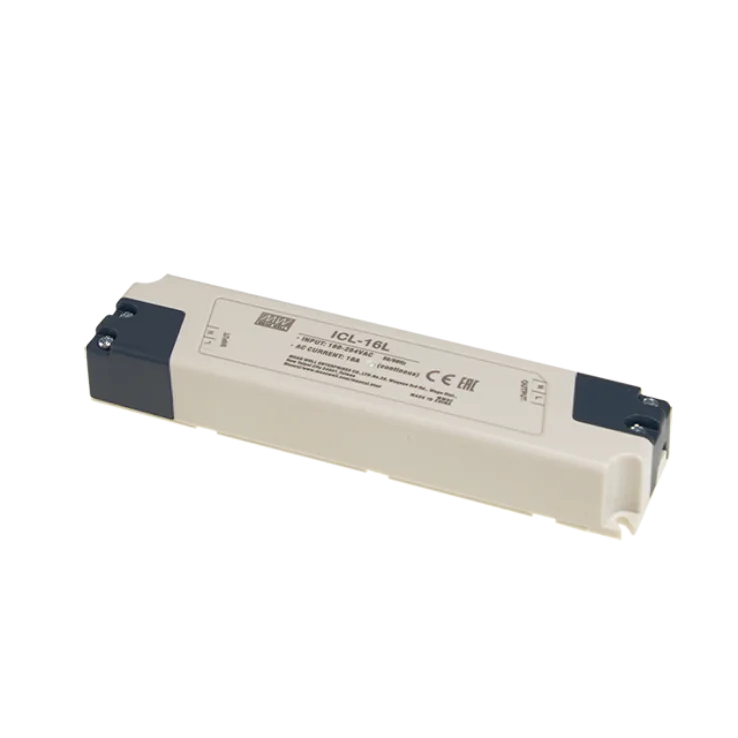

ICL-16 Series DIN Rail Power Supplies 0W
Download Datasheet
| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | DIN Rail Power Supplies |
ICL-16 Series Features:
23A inrush limiting current, 16A continuous
180-264VAC AC input
Other features:
- Integrated bypass relay, no simple NTC
- -Internal thermal protection

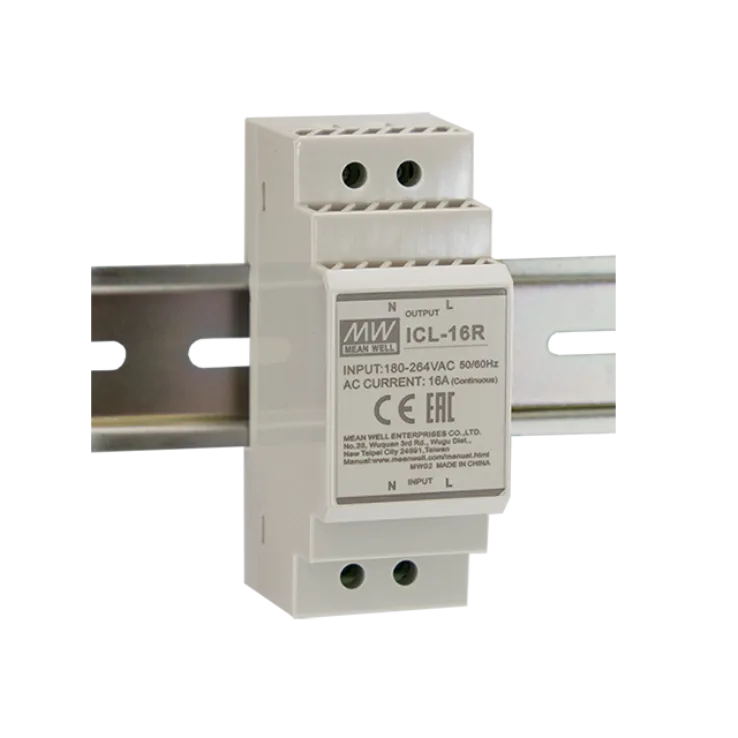

- Installed on DIN Rail TS-35/7.5 or 15 (ICL-16R)
- -30- + 70°C C wide working temperature
| Wattage | 0 | 0 |
|---|---|---|
| Input Voltage | 180-264VAC | 180-264VAC |
| Output Current | 16A | 16A |
| Output Voltage | 0 | 0 |
| Output Voltage Options | Single | Single |
| DC output adjustment | N/A | N/A |
| Dimensions | 175 x 42 x 24 | 35 x 90 x 54.5 |
| Working Temperature | -30 - +70°C | |
| Safety Standards | IEC62368-1(LVD) | |
| EMC Standards | EN55032, EN61000-3-2 , EN61000-3-3 , EN61000-4-2,3,4,5,6,8,11 | |
