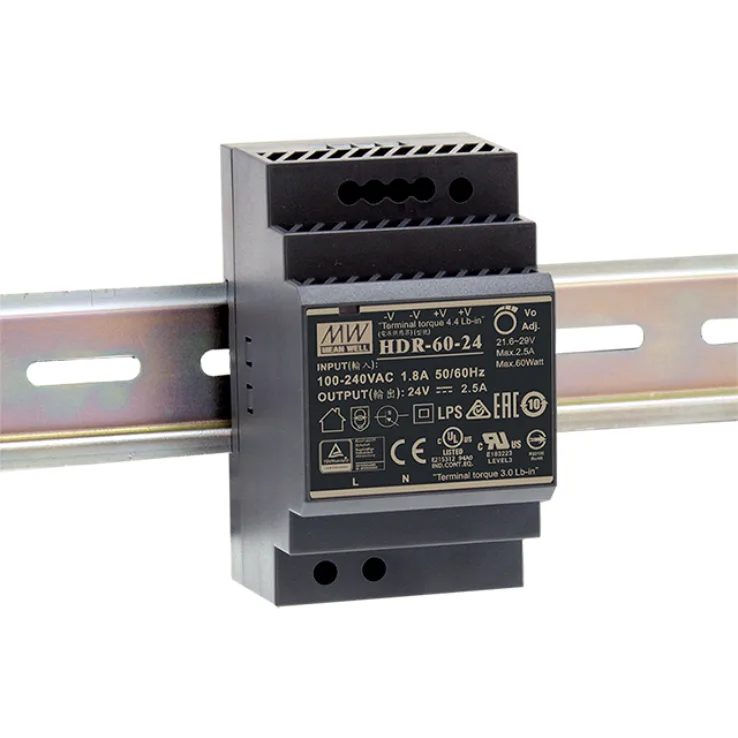

HDR-60 Series DIN Rail Power Supplies 32.5–60W

Name: HDR-60 Series | DIN Rail Power Supplies
SKU: HDR-60 Series

HDR-60 Series Features:

Ultra slim design with 17.5mm (1SU) width

DC output voltage adjustable

No load power consumption <0.3W

Protections: Short circuit/ Overload/ Over voltage

Other features:

Spec	HDR-60-5	HDR-60-12	HDR-60-15	HDR-60-24	HDR-60-48
Wattage	32.5	54	60	60	60
Input Voltage	85-264VAC	85-264VAC	85-264VAC	85-264VAC	85-264VAC
Output Current	6.5A	4.5A	4A	2.5A	1.25A
Output Voltage	5	12	15	24	48
Output Voltage Options	Single	Single	Single	Single	Single
DC output adjustment	5.0-5.5V	10.8-13.8V	13.5-18V	21.6-29V	43.2-55.2V
Dimensions	52.5x 90x 54.5	52.5x 90x 54.5	52.5x 90x 54.5	52.5x 90x 54.5	52.5x 90x 54.5
Working Temperature	-30-+70°C
Safety Standards	UL60950-1, UL508, TUV EN61558-2-16, IEC60950-1 approved; Design refer to EN50178, TUV EN60950-1
EMC Standards	Compliance to EN61204-3 Class B, EN61000-3-2,-3, Compliance to EN61000-4,-2,3,4,5,6,8,11, EN55024, EN61000-6-2 (EN50082-2), EN61204-3, heavy Industry level, criteria A
