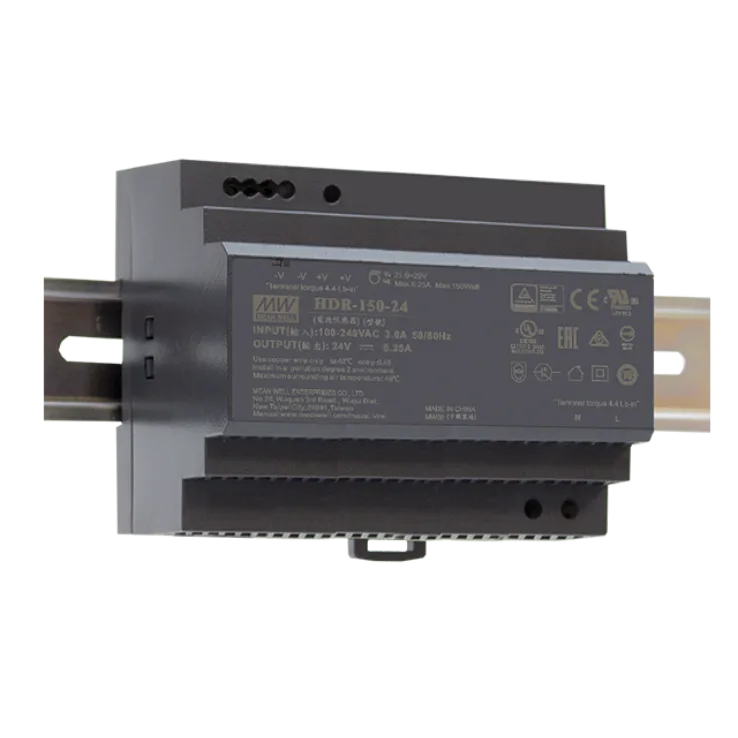

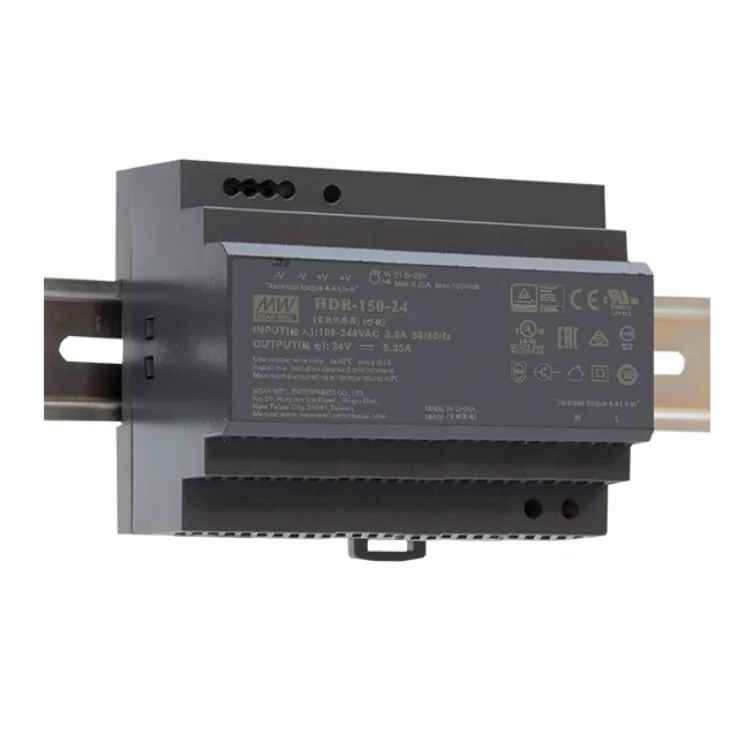

HDR-150 Series DIN Rail Power Supplies 150W

Download Datasheet
Models:
  • HDR-150-12
  • HDR-150-15
  • HDR-150-24
  • HDR-150-48
Manufacturer: Mean Well
Type: DIN Rail Power Supplies

HDR-150 Series Features:

Ultra slim design with 105mm 6SU width

63mm slim profile (width)Universal input 85-264VAC (277VAC operational)

Other features:

  • Isolation class II
  • DC output voltage adjustable
  • DIN rail TS-35/7.5 or 15 mountable
  • Over voltage category III
  • 3 years warranty
Wattage 150 150 150 150
Input Voltage 85-264VAC (277VAC operational ) 120-370VDC (390VDC operational) 85-264VAC (277VAC operational ) 120-370VDC (390VDC operational) 85-264VAC (277VAC operational ) 120-370VDC (390VDC operational) 85-264VAC (277VAC operational ) 120-370VDC (390VDC operational)
Output Current 10.2A-115VAC, 11.3A-230VAC 8.55A-115VAC, 9.5A-230VAC 5.31A-115VAC, 6.25A-230VAC 2.72A-115VAC, 3.2A-230VAC
Output Voltage 12 15 24 48
Output Voltage Options Single Single Single Single
DC output adjustment 10.8-13.8V 13.5-18V 21.6-29V 43.2-55.2V
Dimensions 105 x 90 x 54.5 105 x 90 x 54.5 105 x 90 x 54.5 105 x 90 x 54.5
Working Temperature -30 - +70°C
Safety Standards IEC62368-1, UL62368-1, UL61010, TUV EN61558-2-16, EAC TP TC 004 approved; Design refer to EN50178,TUV EN62368-1
EMC Standards EN55032(CISPR32)/EN61204-3, EN61000-3-2, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11
