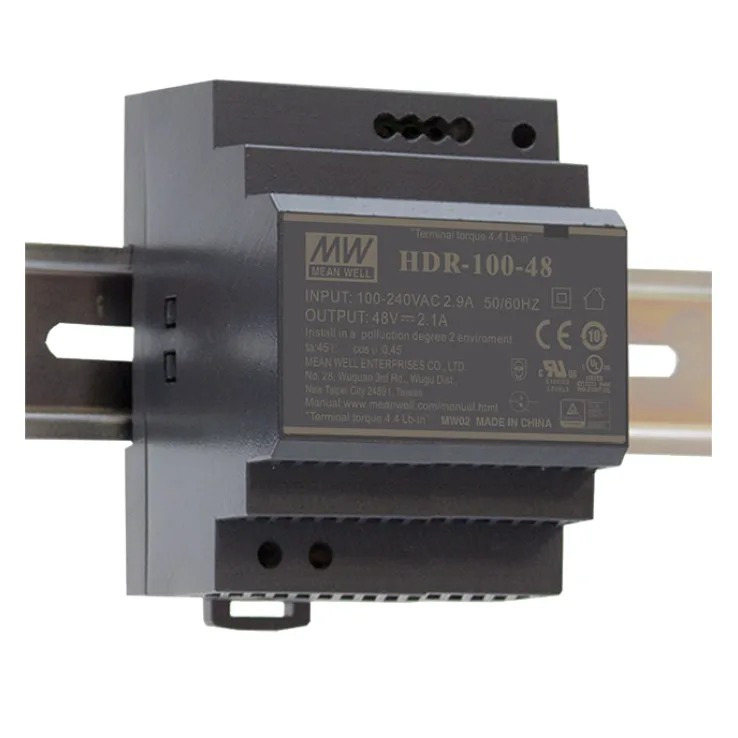

Mean Well HDR-100 Series DIN Rail Power Supplies 85.2–100.8W

Download Datasheet
Models:
  • HDR-100-12
  • HDR-100-12N
  • HDR-100-15
  • HDR-100-15N
  • HDR-100-24
  • HDR-100-24N
  • HDR-100-48
  • HDR-100-48N
Manufacturer: Mean Well
Type: DIN Rail Power Supplies

HDR-100 Series Features:

Ultra slim design with 70mm (4SU) width

DC output voltage adjustable

No load power consumption <0.3W

Protections: Short circuit/ Overload/ Over voltage

Other features:

  • Universal input 85-264VAC (277VAC available)
  • Isolation class II
  • Pass LPS (Limited power source) for blank type
  • Cooling by free air convection (working temperature : -30~+70B0C)
  • Din rail TS-35/7.5 or 15 mountable
  • LED indicator for power on
  • 3 year warranty
Wattage 85.2 90 92 97.5 92 100.8 92.2 100.8
Input Voltage 85-264VAC 85-264VAC 85-264VAC 85-264VAC 85-264VAC 85-264VAC 85-264VAC 85-264VAC
Output Current 7.1A 7.5A 6.13A 6.5A 3.83A 4.2A 1.92A 2.1A
Output Voltage 12 12 15 15 24 24 48 48
Output Voltage Options Single Single Single Single Single Single Single Single
DC output adjustment 12-13V 12-13.8V 15-17V 13.5-18V 24-25.5V 21.6-29V 48-48.7V 43.2-55.2V
Dimensions 70x 90x 54.5 70x 90x 54.5 70x 90x 54.5 70x 90x 54.5 70x 90x 54.5 70x 90x 54.5 70x 90x 54.5 70x 90x 54.5
Working Temperature -30B0C-+70B0C
Safety Standards UL60950-1, UL508, TUV EN61558-2-16, IEC60950-1 approved; Design refer to EN50178, TUV EN60950-1
EMC Standards Compliance to EN55032 (CISPR32) Class B, EN61000-3-2-3 Class A, EN55024, EN61000-6-2, EN61204-3, EN61000-4-2,3,4,5,6,8,11
