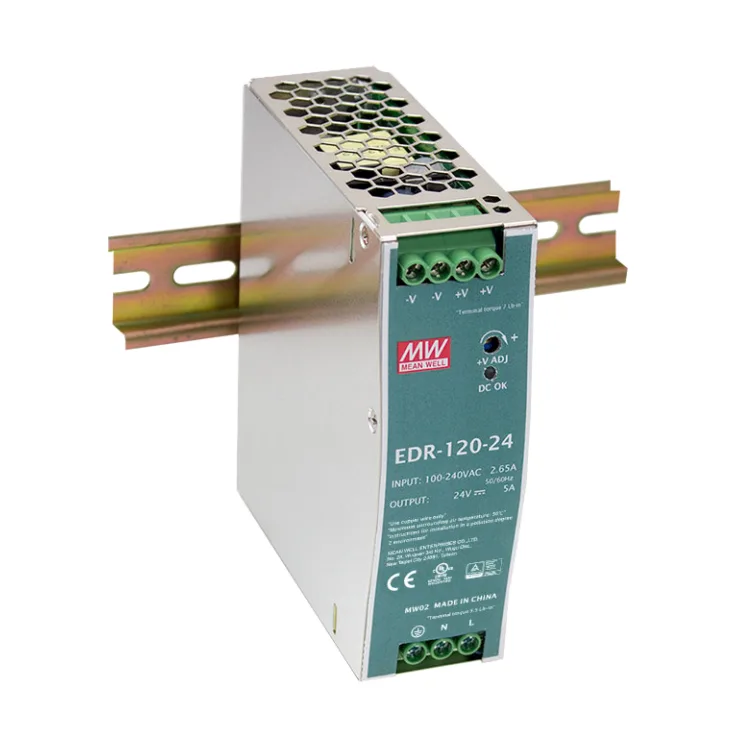

EDR-120 Series DIN Rail Power Supplies 120W

Download Datasheet
Models:
  • EDR-120-12
  • EDR-120-24
  • EDR-120-48
Manufacturer: Mean Well
Type: DIN Rail Power Supplies

EDR-120 Series Features:

EDR-120 is one economical slim 120W DIN rail power supply series, adapt to be installed on TS-35/7.5 or TS-35/15 mounting rails.

Features:

  • Universal AC input/Full range
  • Protections: Short circuit/ Overload/ Over voltage/ Over temperature
  • Cooling by free air convection
  • Can be installed on DIN rail TS-35/7.5 or 15
  • UL 508 (industrial control equipment) approved
  • EN61000-6-2(EN50082-2) industrial immunity level
  • 100% full load burn-in test
  • 2 years warranty
Wattage 120 120 120
Input Voltage 90~264VAC 90~264VAC 90~264VAC
Output Current 10A 5A 2.5A
Output Voltage 12V 24V 48V
Output Voltage Options 12~14V 24~28V 48~55V
Dimensions 40*125.2*113.5mm 40*125.2*113.5mm 40*125.2*113.5mm
Working Temperature -40~+85°C
Safety Standards UL508, TUV EN62368-1, EAC TP TC 004, BSMI CNS14336-1approved;(meet EN60204-1)
EMC Standards Compliance to EN55032 (CISPR32) Class A, EN6...-3-2,-3, EAC TP TC 020, CNS13438 Class A
