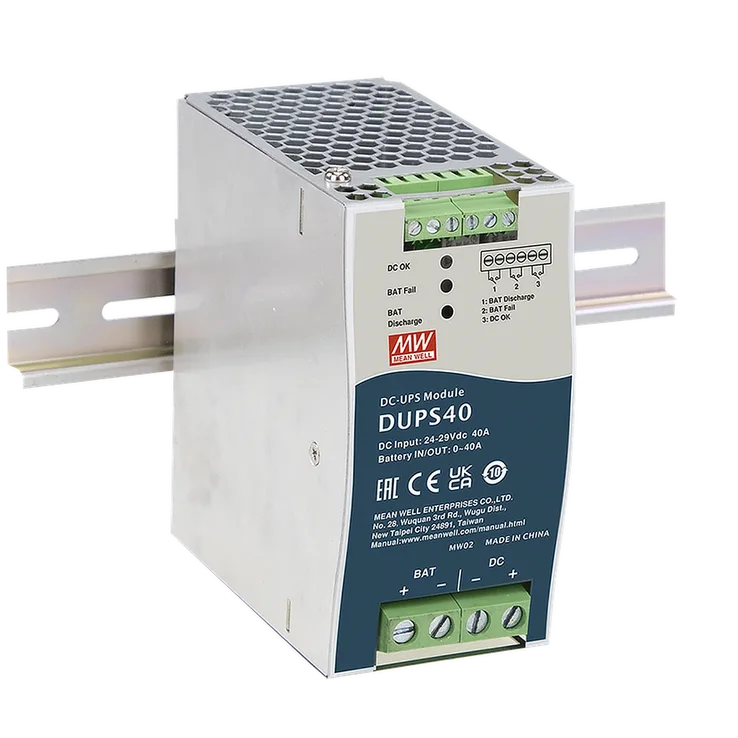

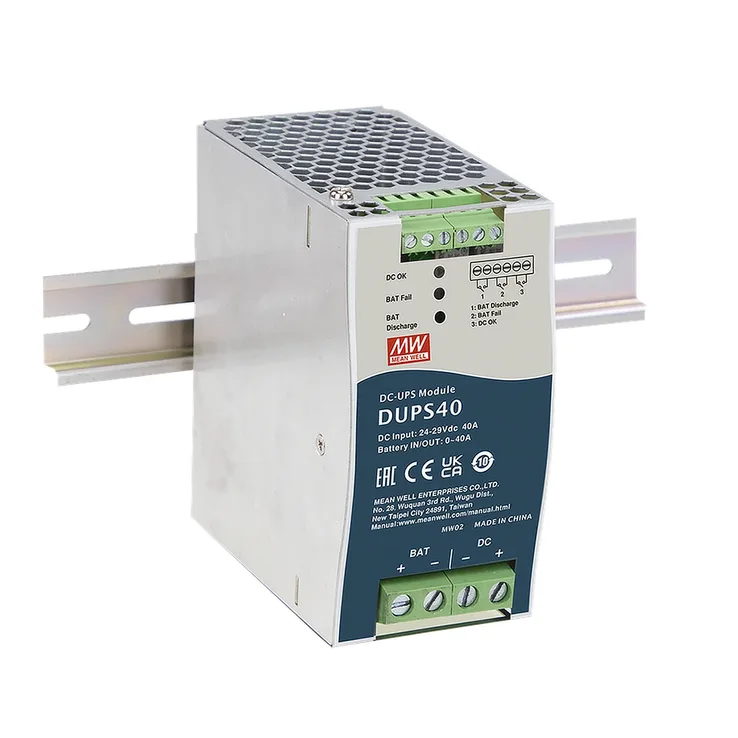

DUPS40 Series DIN Rail Power Supplies

Download Datasheet
Models:
  • DUPS40
Manufacturer: Mean Well
Type: DIN Rail Power Supplies

DUPS40 Series Features:

The DUPS40 is a 40A DIN rail type DC-UPS module, and it is paired with a power supply and an external battery to achieve the backup function.

Features:

  • Uninterruptible DC-UPS controller
  • Parallel connection to DC BUS (power supply + DC-UPS Module + Batteries + Load)
  • Suitable for 24V system, up to 40A
  • 2A Battery charging current
  • Allows 4AH~135AH lead-acid various battery capacities
  • Complete diagnostic and monitoring for DC BUS OK, battery discharge, battery fail
  • LED indicator for signal status
  • Protections: Battery reverse polarity protection & Short circuit (By internal detection)/ Battery discharge/ Over discharge current
  • Cooling by free air convection
  • 3 years warranty
Working Temperature -30~70°C
Safety Standards EAC TP TC 004 approved
EMC Standards BS EN/EN55032(CISPR32)
