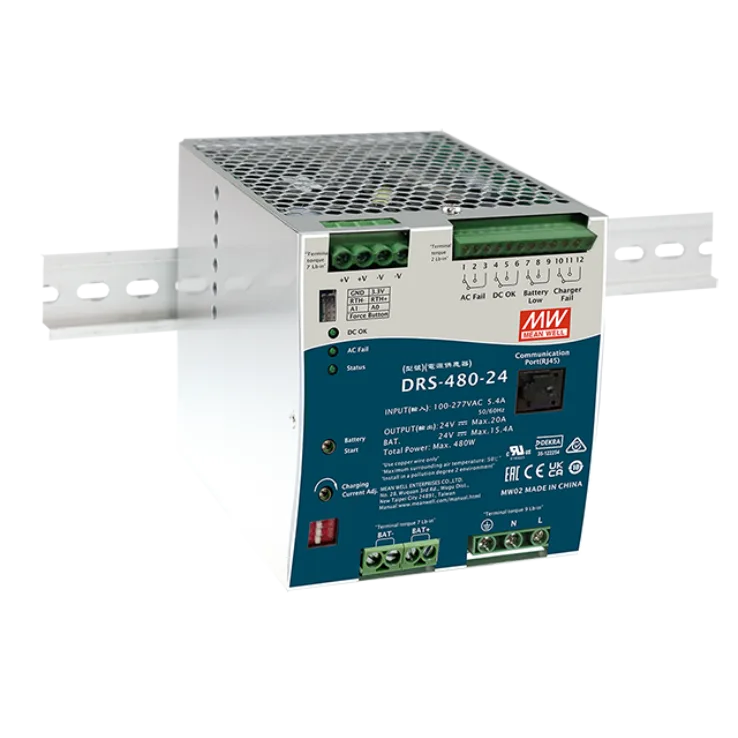

DRS-480 Series Features:

DRS-480 is a 480W AC/DC DIN RAIL type security power supply series.

Features:

Universal input 90~305VAC
All-in-one function with Power supply, DC-UPS, battery charger and status monitoring in ONE compact unit
Signal and alarms design meet UL2524, NFPA 1221, BS EN/EN54-4 and GB17945 requirement, with adjustable parameters configurable by communication interface
Form C relay contacts and LED indicators for AC Fail, Battery Lo, Charger Fail and DC-OK
Load-dependent high speed battery charging
Built-in MODBus protocol, CANBus optional
Protections: Short circuit/ Overload/ Over voltage/ Over temperature (auto derating)/ Battery reverse polarity )No damage)/ Battery cut off
Battery low protection/ Battery reverse polarity protection
-30~70°C wide operating temperature
Cooling by free air convection
Can be installed on DIN rail TS-35/7.5 or 15
Charging curve can be set with SBP-001
20~100% Charging current adjustable by VR
2 or 3-stage selectable by DIP S.W
Suitable for lead acid and lithium-ion batteries
3 years warranty

DIN Rail Power Supplies by MEAN WELL

DIN Rail Power Supplies by MEAN WELL

DIN Rail Power Supplies by MEAN WELL

DIN Rail Power Supplies by MEAN WELL

DIN Rail Power Supplies by MEAN WELL

DIN Rail Power Supplies by MEAN WELL

DIN Rail Power Supplies by MEAN WELL

DIN Rail Power Supplies by MEAN WELL

DIN Rail Power Supplies by MEAN WELL

DIN Rail Power Supplies by MEAN WELL

Spec	DRS-480-24	DRS-480-36	DRS-480-48
Wattage	480	480	480
Input Voltage	90~305VAC	90~305VAC	90~305VAC
Output Current	15.4	7.7	7.7
Output Voltage	24	36	48
Dimensions	110x125.2x150.7mm	110x125.2x150.7mm	110x125.2x150.7mm
Working Temperature	-30~70°C
Safety Standards	UL62368-1, Dekra BS EN/EN62368-1, RCM AS/NE62368.1 approve; EAC TP TC 004pending
EMC Standards	BS EN/EN61000-4-2, BS EN/EN61000-4-3, BS EN/EN61000-4-4, BS EN/EN61000-4-5, BS EN/EN61000-4-6, BS EN/EN61000-4-8

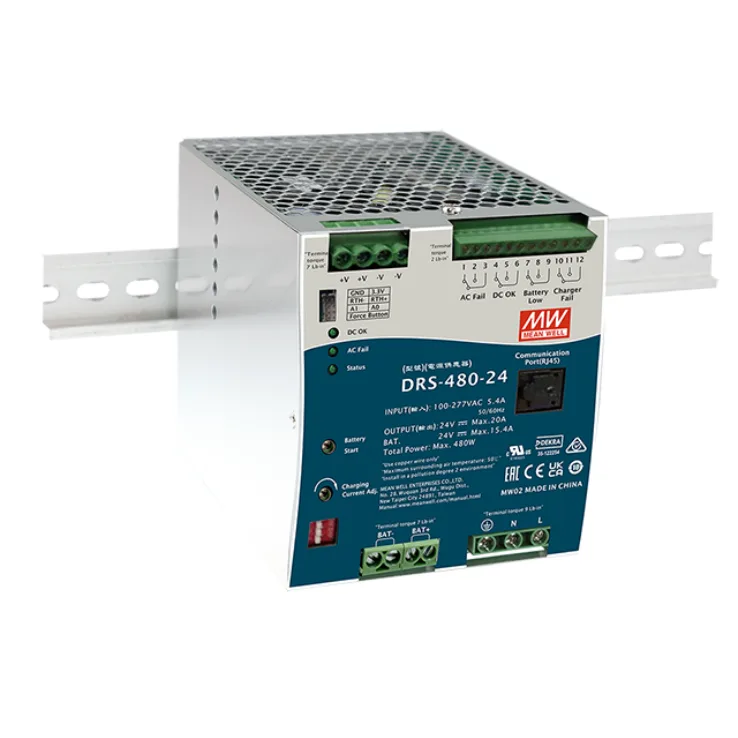

DRS-480 Series DIN Rail Power Supplies 480W
