MEAN WELL

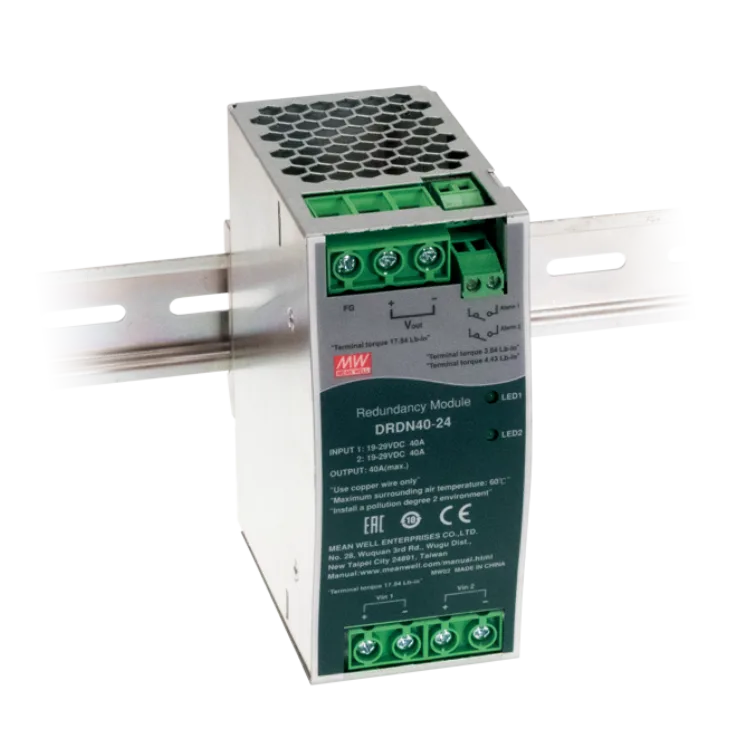

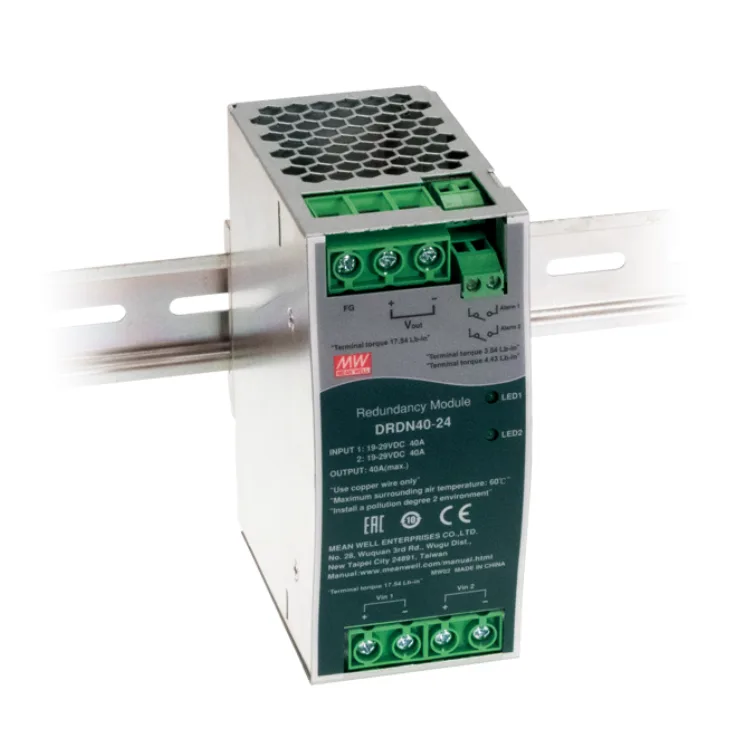

DRDN40 Series DIN Rail Power Supplies 0W
Download Datasheet
| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | DIN Rail Power Supplies |
DRDN40 Series Features:
Support 1+1 and N+1 redundancy system
2 channels input and 1 output
Other features:
- Suitable for redundancy operation of 12V/24V/48 system
- Output current up to 40A
- Cooling by free air convection
- -40~+80 ultra-wide operating temperature (+60 derating)
- 55 mm slim width
- Built-in 2 channels DC OK signal and alarm relay contact
- Installed on DIN Rail TS35/7.5 or 15
- 3 years warranty
| Wattage | 0 | 0 | 0 |
|---|---|---|---|
| Input Voltage | 12V | 24V | 48V |
| Output Current | 0-40A | 0-40A | 0-40A |
| Output Voltage | 12 | 24 | 48 |
| Output Voltage Options | Single | Single | Single |
| DC output adjustment | 0-40A | 0-40A | 0-40A |
| Dimensions | 55 x 125.2 x 100 | 55 x 125.2 x 100 | 55 x 125.2 x 100 |
| Working Temperature | -40 - +85°C | ||
| Safety Standards | IEC62368-1, UL62368-1,approved EAC TP TC 004 | ||
| EMC Standards | EN55032(CISPR32), EN61000-4-2,3,4,5,6,8 | ||
