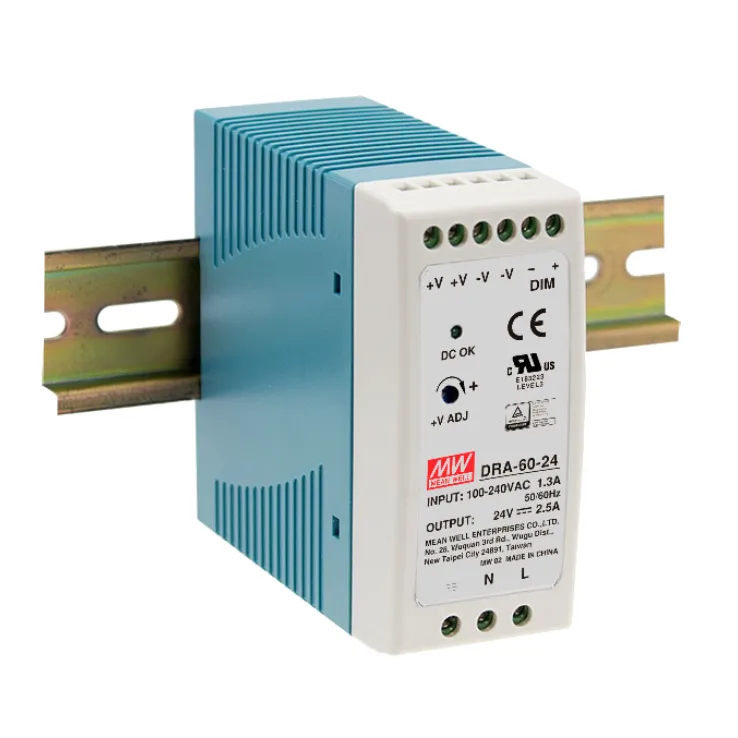

DRA-60 Series DIN Rail Power Supplies 60W

Download Datasheet
Models:
  • DRA-60-12
  • DRA-60-24
Manufacturer: MEAN WELL
Type: DIN Rail Power Supplies

DRA-60 Series Features:

DRA-60 is one 60W AC/DC DIN rail power supply, featuring the adjustable output current. Users are able to easily change the constant output current level, via 1~10Vdc, PWM signal or resistance.

Features:

  • Universal AC input/Full range
  • Protections: Short circuit / Overload / Over voltage
  • Can be installed on DIN rail TS35/7.5 or 15
  • Output voltage adjustable through internal potentiometer
  • Output current adjustable through external 1~10Vdc, PWM signal or resistance
  • Cooling by free air convection
  • Pass LPS
  • LED indicator to power on
  • 100% full load burn-in test
  • 3 years warranty
Wattage 60 60
Input Voltage 90~264 VAC 127~370VDC 90~264VAC 127-370VDC
Output Current 5A 2.5A
Output Voltage 12V 24V
Output Voltage Options 3~12V 3~24V
Dimensions 40*90*100MM (W*H*D) 40*90*100MM (W*H*D)
Working Temperature -30~70°C
Safety Standards UL62368-1, TUV EN62368-1, EAC TP TC 004 approved
EMC Standards Compliance to EN55032 (CISPR32) Class B, EN61000-3-2, -3, EAC TP TC 020
