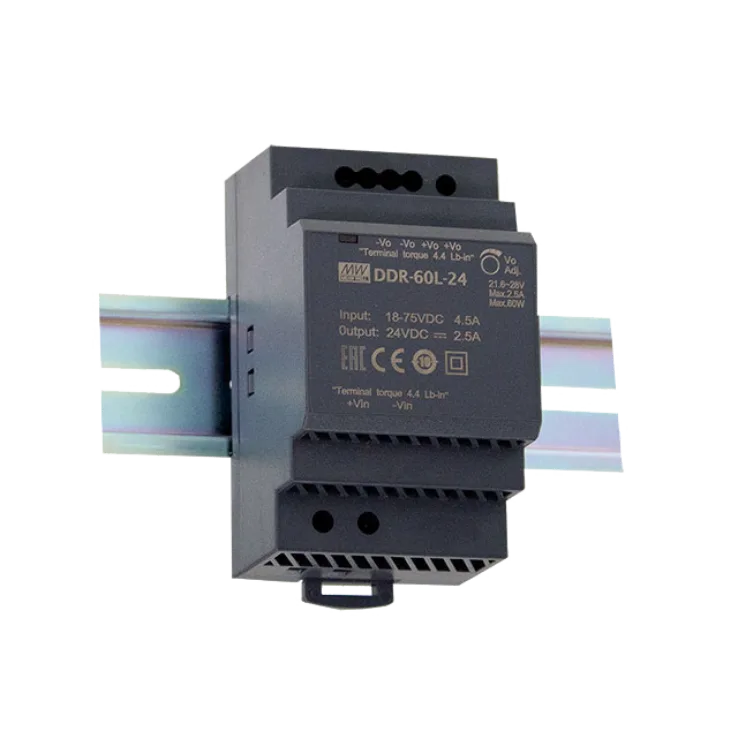

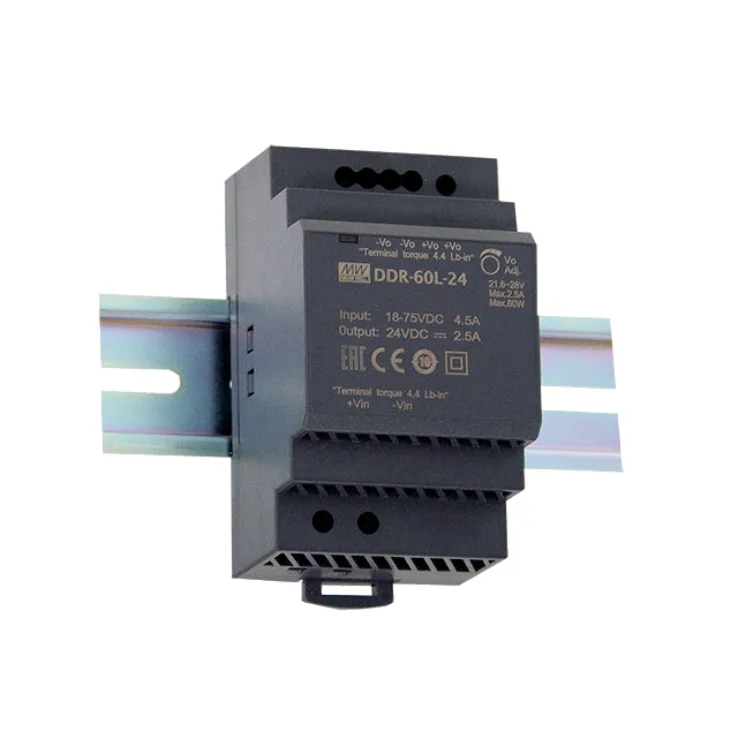

DDR-60 Series DIN Rail Power Supplies 30W

Models:	DDR-60G-5 DDR-60G-12 DDR-60G-15 DDR-60G-24 DDR-60L-5 DDR-60L-12 DDR-60L-15 DDR-60L-24
Manufacturer:	MEAN WELL
Type:	DIN Rail Power Supplies

DDR-60 Series Features:

No minimum load required

Width only 52.5mm (1SU)

Protections: Short circuit / Overload / Over voltage

Other features:

Spec	DDR-60G-5	DDR-60G-12	DDR-60G-15	DDR-60G-24	DDR-60L-5	DDR-60L-12	DDR-60L-15	DDR-60L-24
Wattage	30	30	30	30	30	30	30	30
Output Current	0-10.8A	0-5A	0-4A	0-2.5A	0-12A	0-5A	0-4A	0-2.5A
Output Voltage	5	12	15	24	5	12	15	24
Output Voltage Options	Single	Single	Single	Single	Single	Single	Single	Single
DC output adjustment	4.5-5.5V	9-13.2V	13.5-16.5V	21.6-28V	4.5-5.5V	9-13.2V	13.5-16.5V	21.6-28V
Dimensions	52.5x 90x 54.5	52.5x 90x 54.5	52.5x 90x 54.5	52.5x 90x 54.5	52.5x 90x 54.5	52.5x 90x 54.5	52.5x 90x 54.5	52.5x 90x 54.5
Working Temperature	-40-+85°C
Safety Standards	IEC 62368-1 (LVD) approved, Design refer to UL508
EMC Standards	Compliance to EN55032, EN61000-3-3. Compliance to EN55024, EN61000-6-2 (EN50082-2), EN61000-4-2,3,4,5,6,8
