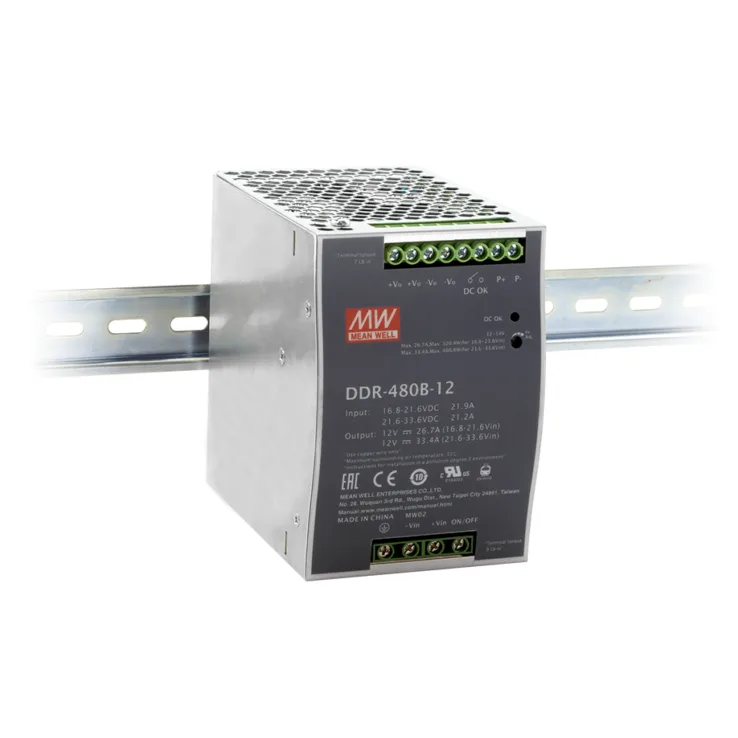

DDR-480 Series DIN Rail Power Supplies 400.8–480W

Download Datasheet
Models:
  • DDR-480B-12
  • DDR-480B-24
  • DDR-480B-48
  • DDR-480C-12
  • DDR-480C-24
  • DDR-480C-48
  • DDR-480D-12
  • DDR-480D-24
  • DDR-480D-48
Manufacturer: Mean Well
Type: DIN Rail Power Supplies

DDR-480 Series Features:

DDR-480 series is a 480W DIN Rail type DC-DC converter with main features including DIN rail-type easy installation, ultra slim width (85.5mm), 2:1 wide input voltage, fanless design, -40~+80°C wide operating temperature, 4KVdc I/O isolation, 150% peak load, current sharing, DC OK, adjustable output voltage and full protective functions.

Features:

  • Compliance to EN50155 and EN45545-2 railway standard
  • Width only 85.5mm
  • 2:1 wide input range
  • -40~+80°C wide operating temperature
  • 150% peak load capability
  • Current sharing up to 1920W(3+1)
  • DC output adjustable
  • Cooling by free air convection
  • Can be installed on DIN rail TS-35/7.5 or 15
  • Protections: Short circuit/ Overload, Over voltage/ Over temperature/ Input reverse polarity/ Input under voltage protection
  • 4KVdc I/O isolation (Reinforced isolation)
  • DC OK relay contact
  • Remote ON-OFF control
  • Operating attitude up to 5000 meters(Note.6)
  • 3 years warranty
Wattage 400.8 480 480 400.8 480 480 400.8 480 480
Input Voltage 16.8~33.6Vdc 14.4~16.8Vdc 16.8~33.6Vdc 14.4~16.8Vdc 16.8~33.6Vdc 14.4~16.8Vdc 33.6~67.2Vdc 28.8~33.6Vdc 33.6~67.2Vdc 28.8~33.6Vdc 33.6~67.2Vdc 28.8~33.6Vdc 67.2~154Vdc 66~67.2Vdc 67.2~154Vdc 66~67.2Vdc 67.2~154Vdc 66~67.2Vdc
Output Current 33.4A 20A 10A 33.4A 20A 10A 33.4A 20A 10A
Output Voltage 12V 24V 48V 12V 24V 48V 12V 24V 48V
Dimensions 85.5*125.2*128.5mm 85.5*125.2*128.5mm 85.5*125.2*128.5mm 85.5*125.2*128.5mm 85.5*125.2*128.5mm 85.5*125.2*128.5mm 85.5*125.2*128.5mm 85.5*125.2*128.5mm 85.5*125.2*128.5mm
Working Temperature -40~+80°C
Safety Standards UL62368-1, IEC 62368-1, AS/NZS 6268-1, EAC TP TC 004 approved
EMC Standards EN55032(CISPR32), EN61000-3-3
