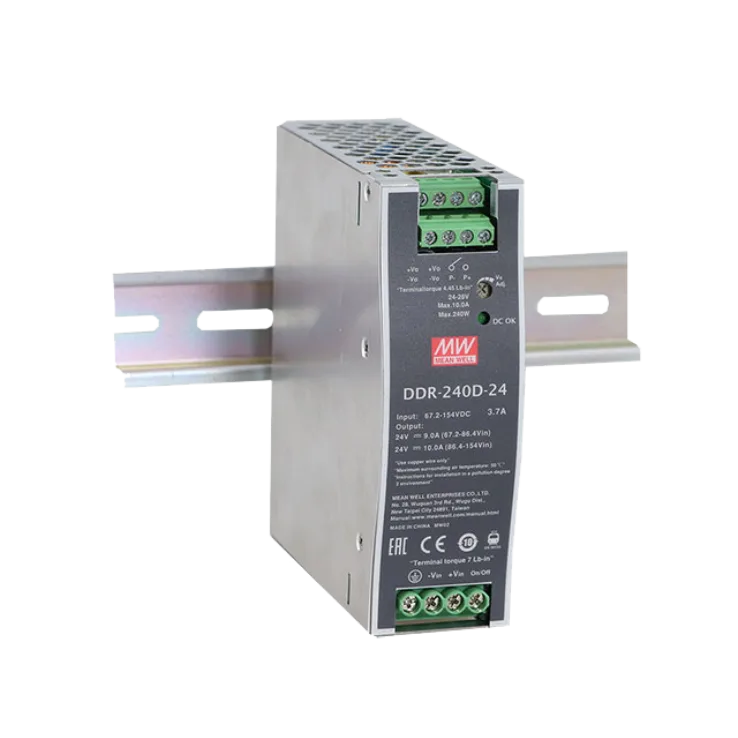

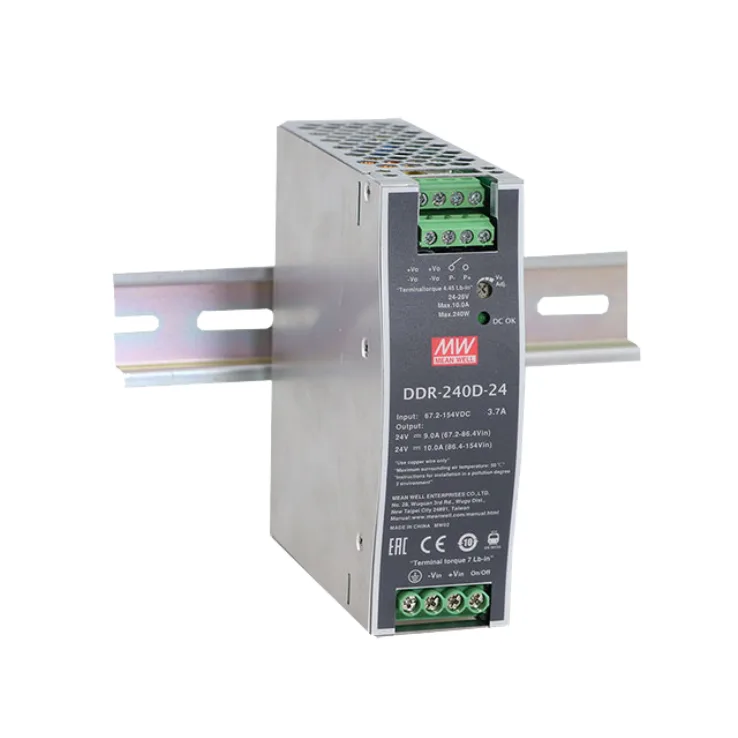

Mean Well DDR-240 Series DIN Rail Power Supplies 240W

Download Datasheet
Models:
  • DDR-240B-24
  • DDR-240B-48
  • DDR-240C-24
  • DDR-240C-48
  • DDR-240D-24
  • DDR-240D-48
Manufacturer: Mean Well
Type: DIN Rail Power Supplies

DDR-240 Series Features:

Can be installed on DIN rail TS-35/7.5 or 15

Protections: Short circuit/ Overload/ Over voltage/ Over temperature/ Input reverse polarity/ Input under voltage protection

Other features:

  • Compliance to EN50155 and EN45545-2 railway standard
  • Width only 40mm
  • 2:1 wide input range
  • 150% peak load capability
  • DC output adjustable
  • Cooling by free air convection
  • 4KVdc I/O isolation (Reinforced isolation)
  • -40~+70B0C wide working temperature
  • 3 years warranty
Wattage 240 240 240 240 240 240
Output Current 0-10A 0-5A 0-10A 0-5A 0-10A 0-5A
Output Voltage 24 48 24 48 24 48
Output Voltage Options Single Single Single Single Single Single
DC output adjustment 24-28V 48-56V 24-28V 48-56V 24-28V 48-56V
Dimensions 40x 125.2x 113.5 40x 125.2x 113.5 40x 125.2x 113.5 40x 125.2x 113.5 40x 125.2x 113.5 40x 125.2x 113.5
Working Temperature -40B0C-+70B0C
Safety Standards IEC 62368-1 (LVD, except for 67.2-154VIN) approved, EAC TP TC 004 approved; Design refer to UL508
EMC Standards Compliance to EN55032, EN61000-3-3. Compliance to EN55024, EN61000-6-2 (EN50082-2), EN61000-4-2,3,4,5,6,8. Compliance to EN45545-2 for fire protection ; Meet EN50155 / IEC60571 including IEC61373 for shock & vibration EN50121-3-2 for EMC
