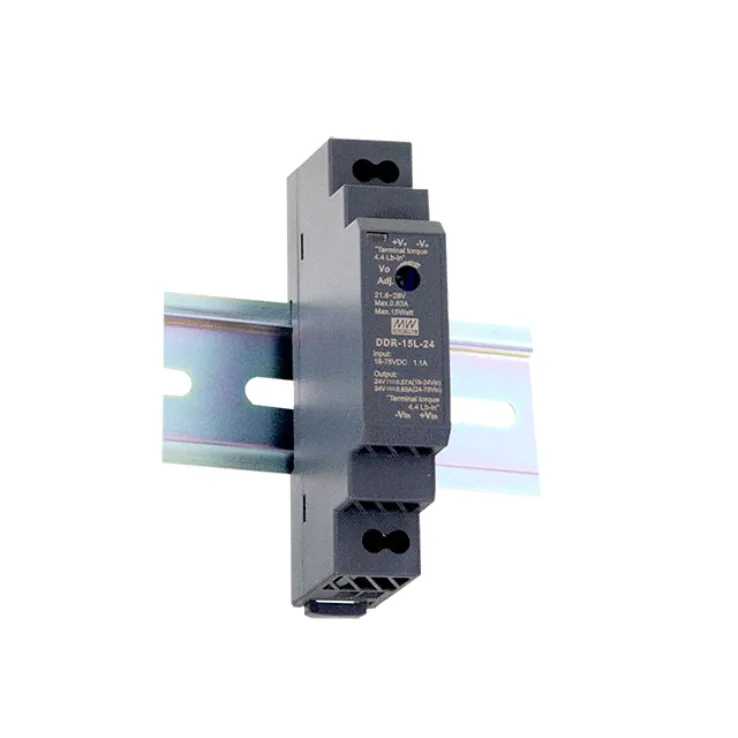

DDR-15 Series DIN Rail Power Supplies 11.6–15W

Models:	DDR-15G-3.3 DDR-15G-5 DDR-15G-12 DDR-15G-15 DDR-15G-24 DDR-15L-3.3 DDR-15L-5 DDR-15L-12 DDR-15L-15 DDR-15L-24
Manufacturer:	MEAN WELL
Type:	DIN Rail Power Supplies

DDR-15 Series Features:

No minimum load required

Width only 17.5mm (1SU)

Protections: Short circuit / Overload / Over voltage

Other features:

Spec	DDR-15G-3.3	DDR-15G-5	DDR-15G-12	DDR-15G-15	DDR-15G-24	DDR-15L-3.3	DDR-15L-5	DDR-15L-12	DDR-15L-15	DDR-15L-24
Wattage	11.6	15	15	15	15	15	15	15	15	15
Output Current	0-3.5A	0-3A	0-1.25A	0-1A	0-0.63A	0-4.5A	0-3A	0-1.25A	0-1A	0-0.63A
Output Voltage	3.3	5	12	15	24	3.3	5	12	15	24
Output Voltage Options	Single	Single	Single	Single	Single	Single	Single	Single	Single	Single
DC output adjustment	3-3.6V	4.5-5.5V	9-13.2V	13.5-16.5V	21.6-28V	3-3.6V	4.5-5.5V	9-13.2V	13.5-16.5V	26.1-28V
Dimensions	17.5x 90x 54.5	17.5x 90x 54.5	17.5x 90x 54.5	17.5x 90x 54.5	17.5x 90x 54.5	17.5x 90x 54.5	17.5x 90x 54.5	17.5x 90x 54.5	17.5x 90x 54.5	17.5x 90x 54.5
Working Temperature	-40-+85°C
Safety Standards	IEC 62368-1 (LVD) approved, Design refer to UL508
EMC Standards	Compliance to EN55032, EN61000-3-3. Compliance to EN55024, EN61000-6-2 (EN50082-2), EN61000-4-2,3,4,5,6,8
