Advanced Energy

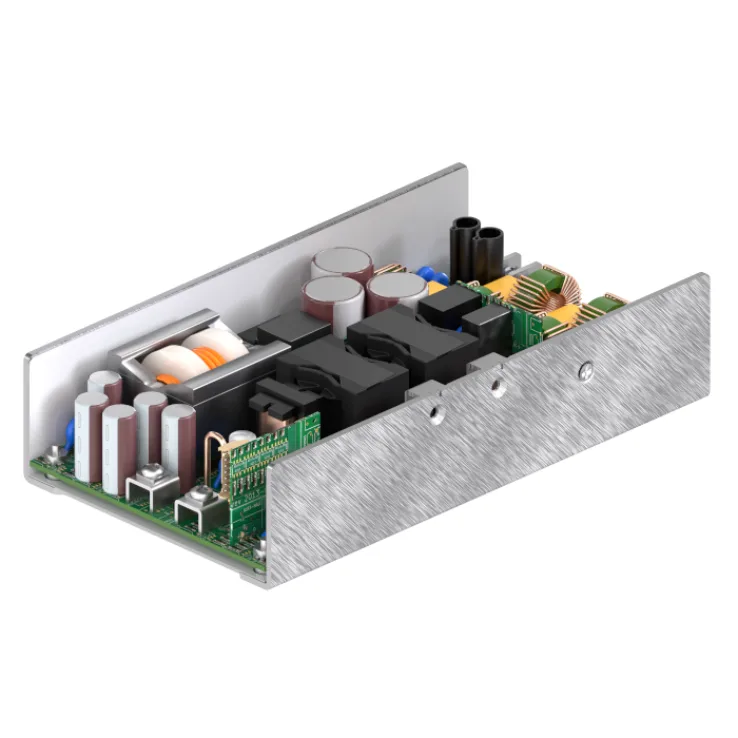

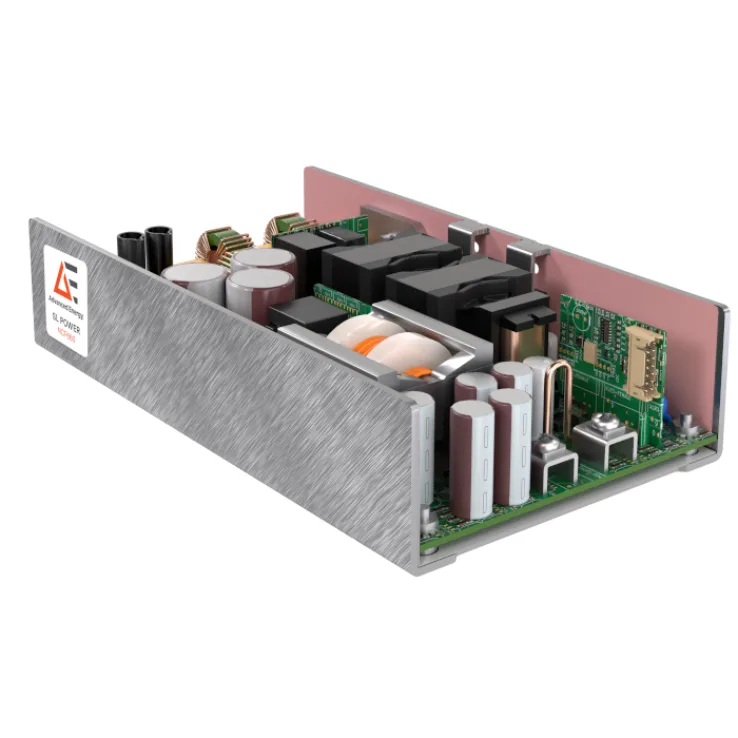

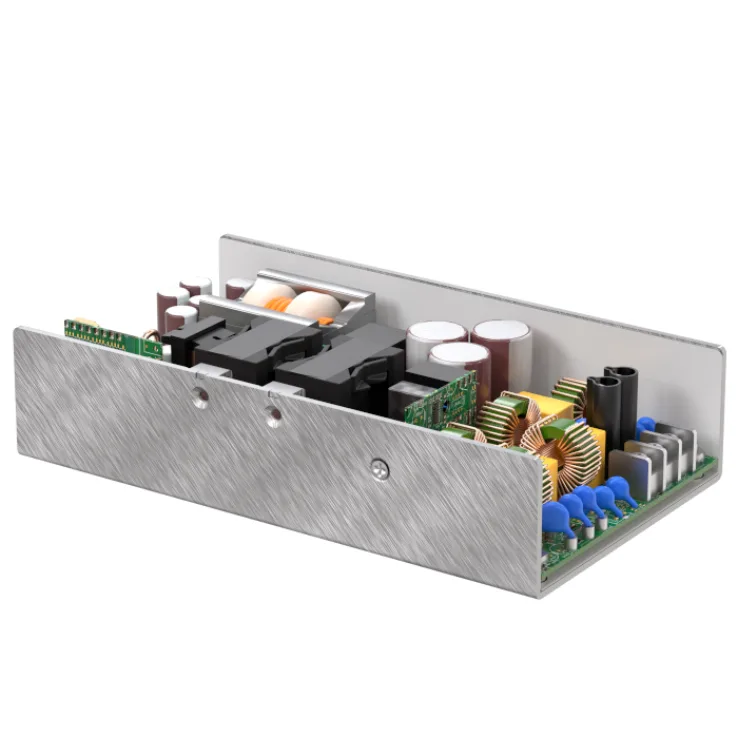

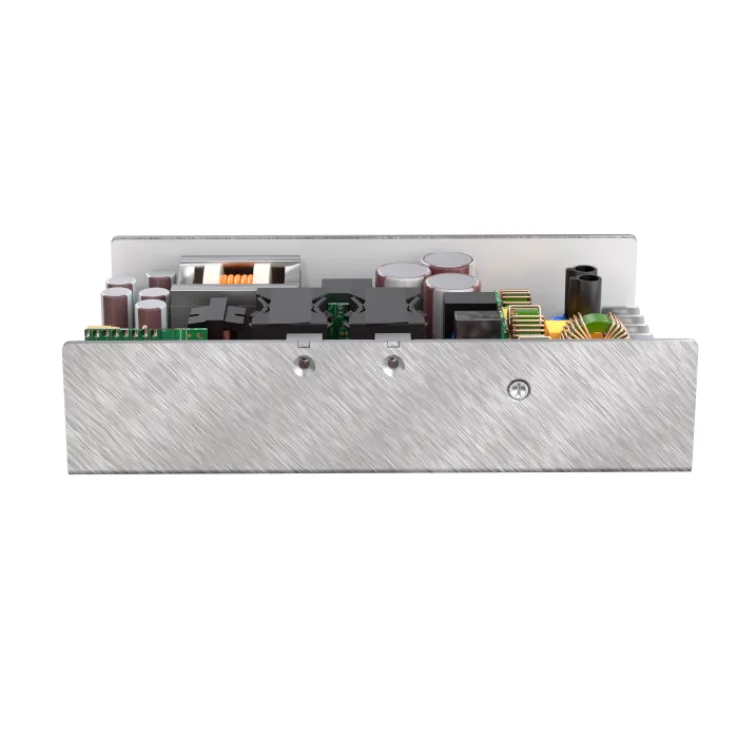

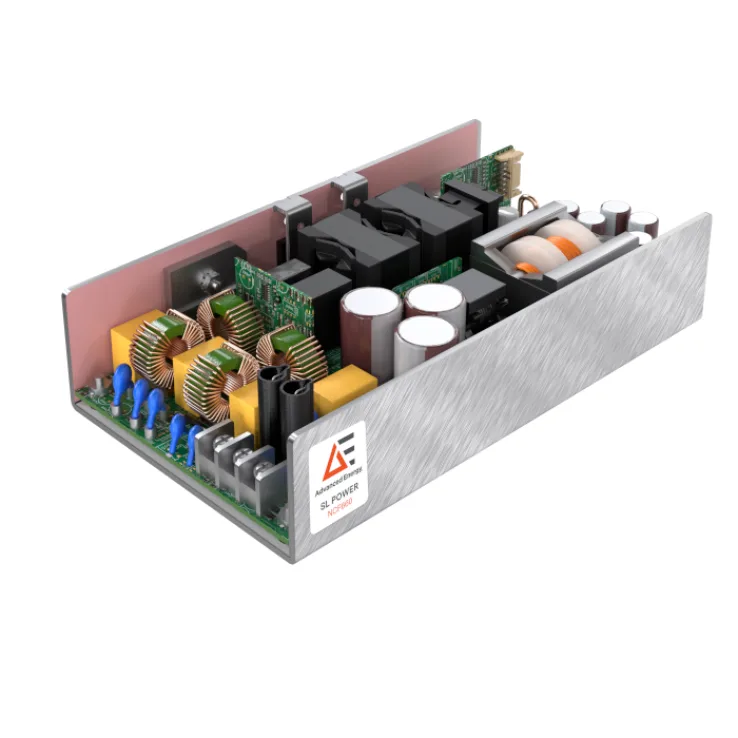

SL Power NCF660 Series Open Frame Power Supplies 560–660W
Download Datasheet
| Models: |
|
| Manufacturer: | Advanced Energy |
| Type: | Open Frame Power Supplies |
SL Power NCF660 Series Features:
- 5 kV Defibrillator Withstand
- Up to 660 W with Air Flow
- Up to 440 W Convection Cooled
- 4”W x 7”L x 1.6”H Size
- Universal Input 85 to 264 VAC
- Meets Class B Emissions Levels
- 7+ Years Electrolytic Capacitor Lif
- Meets EN60601-1-2 4th Edition EMC
- Less than 10 μA Leakage Current
- Class I Input
- RoHS, REACH Compliant
- Includes 5 V Standby Output
- 3 Years Warranty
| Wattage | 560 | 560 | 660 | 660 |
|---|---|---|---|---|
| Input Voltage | 85-264 VAC | 85-264 VAC | 85-264 VAC | 85-264 VAC |
| Output Current | 46.2A (with fan) | 37A (with fan) | 27.2A (with fan) | 9.1A (with fan) |
| Output Voltage | 12V | 15V | 24V | 48V |
| Dimensions | 178.0 × 101.6 × 40.6 mm | 178.0 × 101.6 × 40.6 mm | 178.0 × 101.6 × 40.6 mm | 178.0 × 101.6 × 40.6 mm |
| Working Temperature | -20°C to +70°C; output power derated linearly from 50°C to 70°C, reaching 50% load at 70°C | |||
| Safety Standards | IEC/UL/cUL/EN60601-1, Edition 3.2; AAMI ES60601-1:2005 + AMD1:2012 + AMD2:2021; CAN/CSA-C22.2 No. 60601-1:14/AM2:2022; CB IEC60601-1:2005/AMD2:2020; CE EN60601-1:2006+A1:2013+A12:2014+A2:2021 | |||
| EMC Standards | EN55011/32 Class B; CISPR11/15/32 Class B (conducted); CISPR11/32 Class B (radiated); FCC Part 15.107 Class B; EN61000-3-2 Class A; IEC61000-3-3; IEC/EN61000-4-2, -4-3, -4-4, -4-5, -4-6, -4-8, -4-11; IEC60601-1-2, 4th Edition | |||
