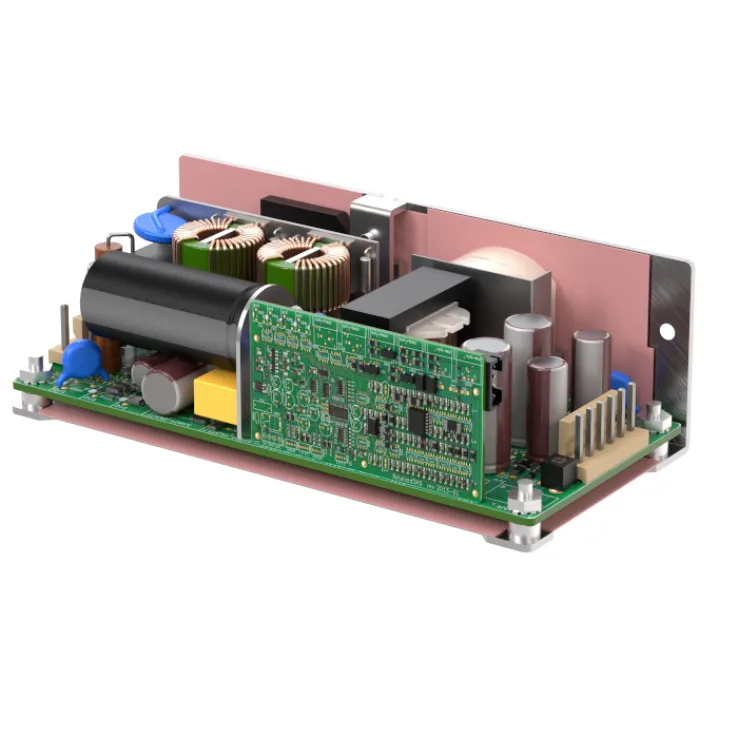

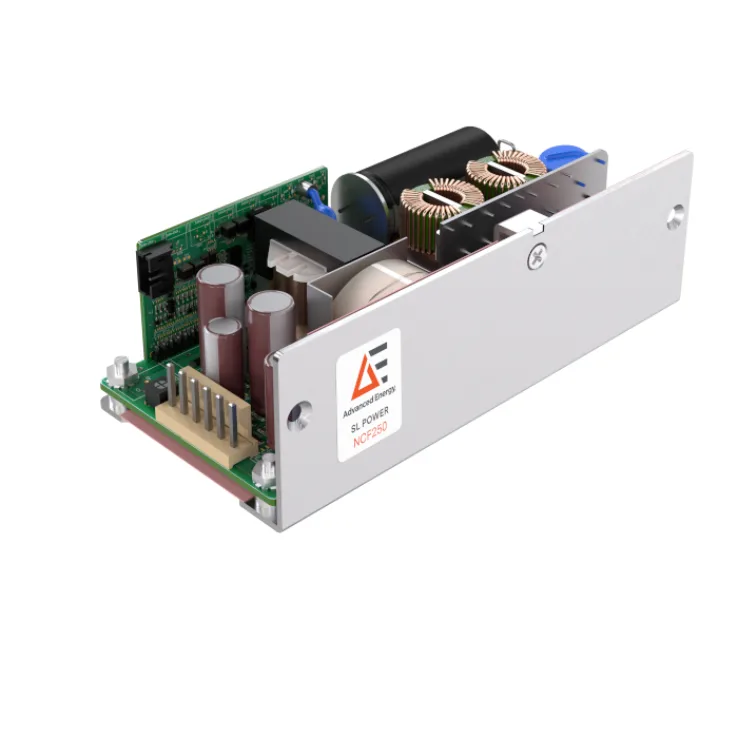

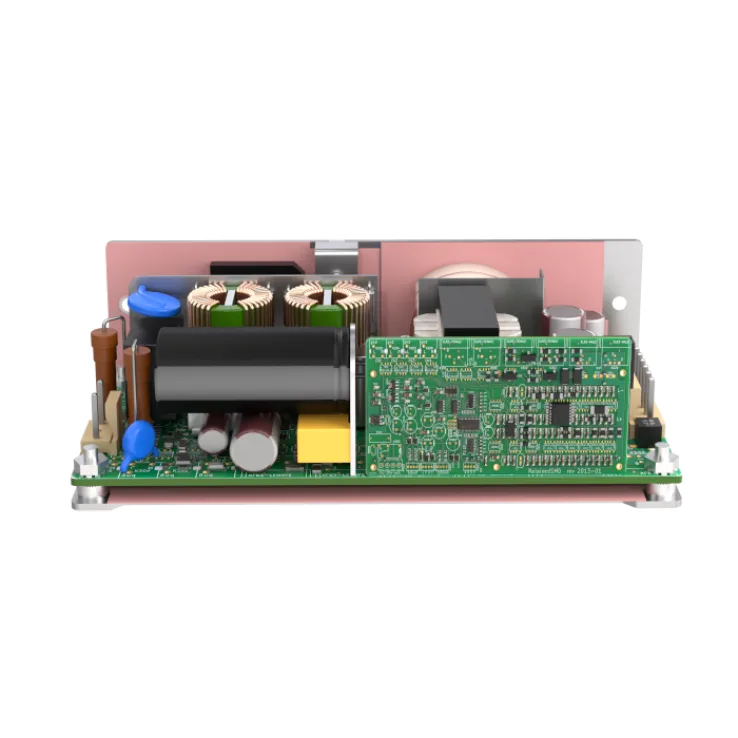

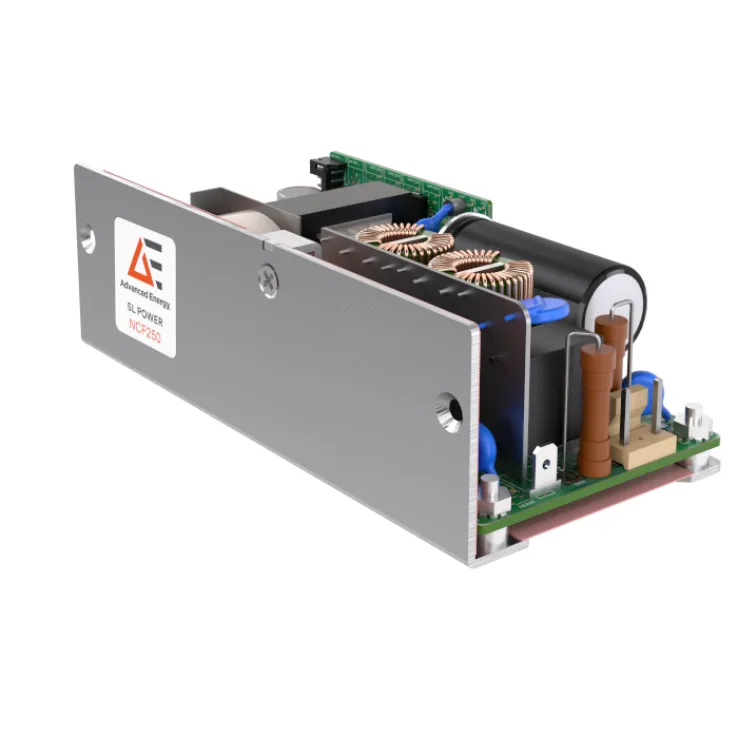

SL Power NCF250 Series Open Frame Power Supplies 230–250W
Download Datasheet
| Models: |
|
| Manufacturer: | Advanced Energy |
| Type: | Open Frame Power Supplies |
SL Power NCF250 Series Features:
- 5 kV Defibrillator Withstand
- Up to 250 W with Air Flow
- Up to 175 W Convection Cooled
- 2.4”W x 5.0”L x 1.6”H Size
- Universal Input 85 to 264 VAC
- Meets Class B Emissions Levels
- 7+ Years Electrolytic Capacitor Life
- Meets IEC60601-1-2 4th Edition EMC
- Less than 10 μA Leakage Current
- Class I Input
- RoHS Compliant
- REACH Compliant
- 3 Years Warranty
| Wattage | 230 | 230 | 250 | 250 |
|---|---|---|---|---|
| Input Voltage | 85-264VAC | 85-264VAC | 85-264VAC | 85-264VAC |
| Output Current | 19.1A (with fan) | 15.3A (with fan) | 10.4A (with fan) | 5.2A (with fan) |
| Output Voltage | 12V | 15V | 24V | 48V |
| Dimensions | 127.0 × 61.0 × 40.6 mm | 127.0 × 61.0 × 40.6 mm | 127.0 × 61.0 × 40.6 mm | 127.0 × 61.0 × 40.6 mm |
| Working Temperature | -20°C to +70°C; output power derated linearly from 50°C to 70°C, reaching 50% load at 70°C. | |||
| Safety Standards | IEC/UL/cUL/EN60601-1, Edition 3.2; AAMI ES60601-1:2005 + AMD1:2012 + AMD2:2021; CAN/CSA-C22.2 No. 60601-1:14/AM2:2022; CB IEC60601-1:2005/AMD2:2020; CE EN60601-1:2006+A1:2013+A12:2014+A2:2021. | |||
| EMC Standards | EN55011/32 and CISPR11/32 Class B; FCC Part 15.107 Class B; EN61000-3-2 Class A; IEC61000-3-3; IEC/EN61000-4-2, -4-3, -4-4, -4-5, -4-6, -4-8, -4-11; IEC60601-1-2, 4th Edition. | |||
