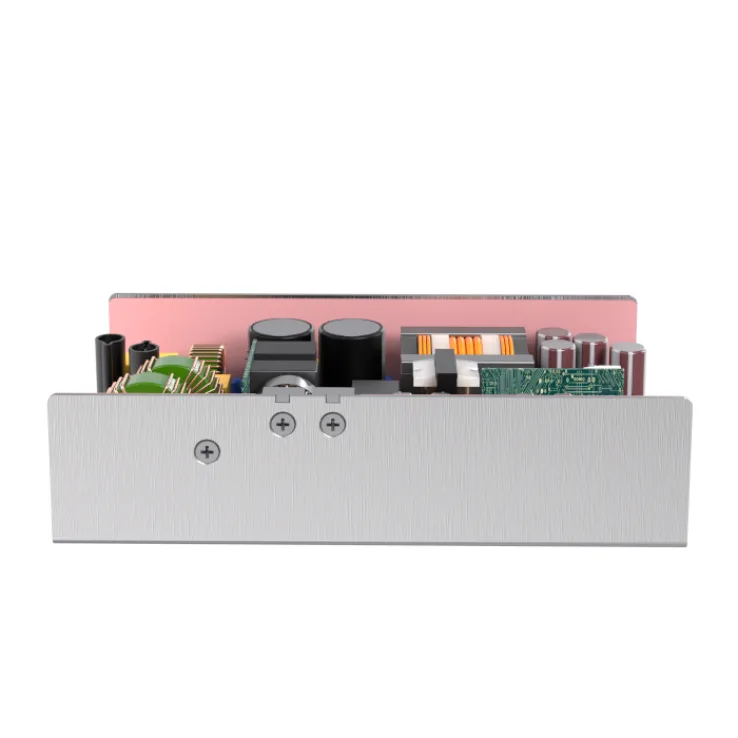

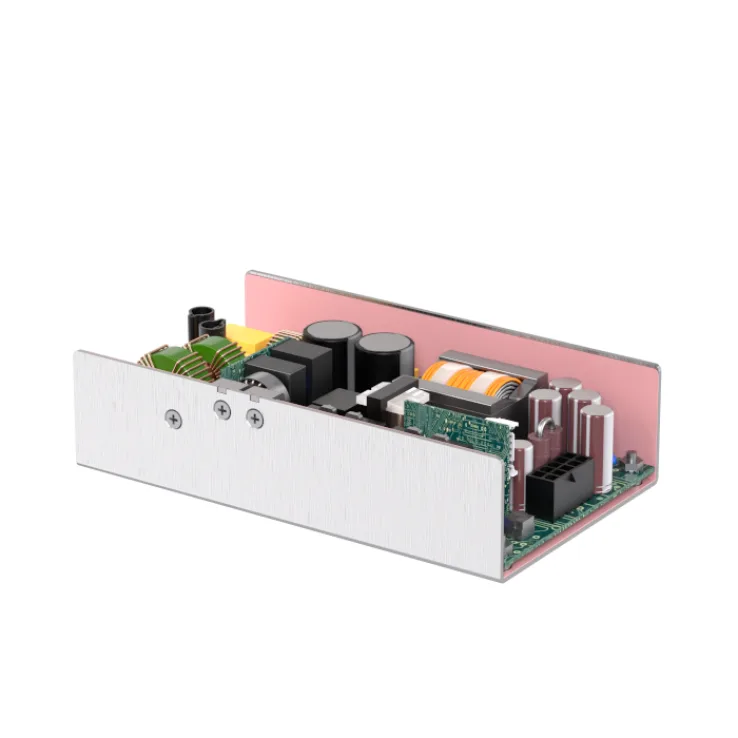

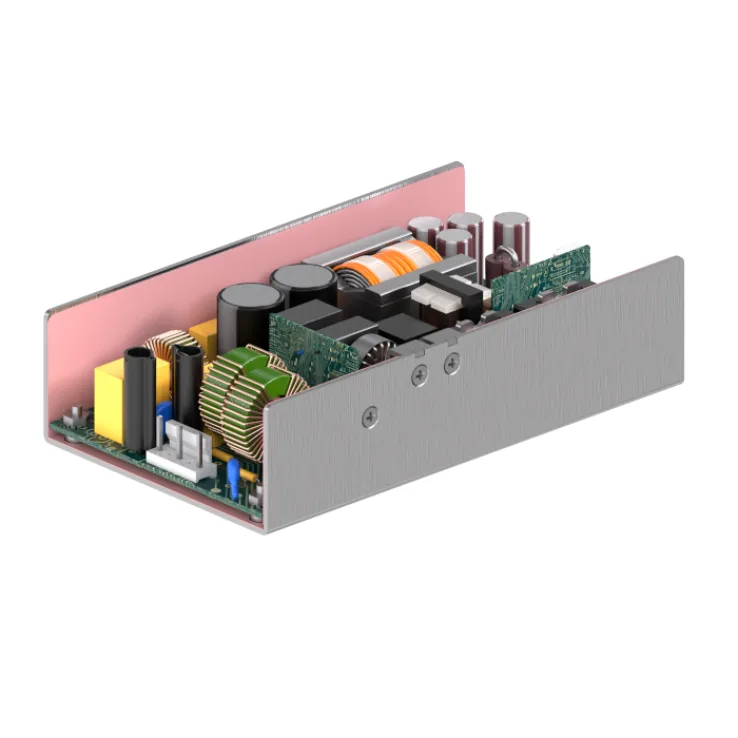

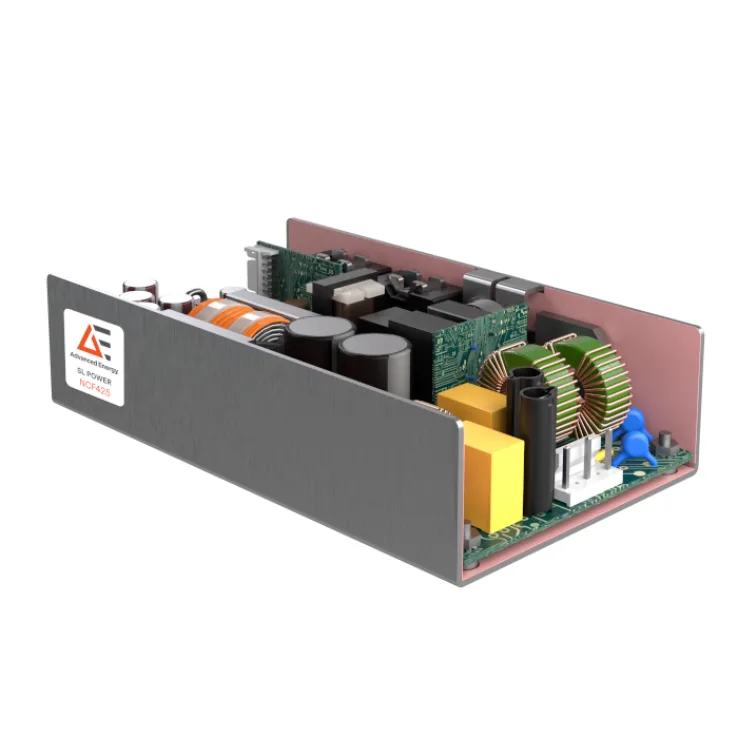

SL Power NCF425 Series Open Frame Power Supplies 240W
Download Datasheet
| Models: |
|
| Manufacturer: | Advanced Energy |
| Type: | Open Frame Power Supplies |
SL Power NCF425 Series Features:
- 5 kV Defibrillator Withstand
- Up to 425 W with Air Flow
- Up to 270 W Convection Cooled
- 3.5”W x 6”L x 1.5”H Size
- Universal Input 85 to 264 VAC
- Meets Class B Emissions Levels
- 7+ Years Electrolytic Capacitor Life
- Meets EN60601-1-2 4th Edition EMC
- Less than 10 μA Leakage Current
- Class I Input
- RoHS, REACH Compliant
- Includes 5 V Standby Output
- 3 Years Warranty
| Wattage | 240 | 240 | 240 |
|---|---|---|---|
| Input Voltage | 85-264 VAC | 85-264 VAC | 85-264 VAC |
| Output Current | 30A (with fan) | 17.5A (with fan) | 8.75A (with fan) |
| Output Voltage | 12v | 24v | 48v |
| Dimensions | 152.4 × 88.9 × 38.1 mm | 152.4 × 88.9 × 38.1 mm | 152.4 × 88.9 × 38.1 mm |
| Working Temperature | -20°C to +70°C; output power derated linearly from 50°C to 70°C, reaching 50% load at 70°C | ||
| Safety Standards | IEC/UL/cUL/EN60601-1, Edition 3.2; AAMI ES60601-1:2025 + AMD1:2012 + AMD2:2021; CAN/CSA-C22.2 No. 60601-1:14:AM2:2022; CB IEC60601-1:2005/AMD2:2020; CE EN60601-1:2006+A1:2013+A12:2014+A2:2021 | ||
| EMC Standards | EN55011/32 Class B; CISPR11/15/32 Class B (conducted); CISPR11/32 Class B (radiated); FCC Part 15.107 Class B; EN61000-3-2 Class A; IEC61000-3-3; IEC/EN61000-4-2, -4-3, -4-4, -4-5, -4-6, -4-8, -4-11; IEC60601-1-2, 4th Edition | ||
