Advanced Energy

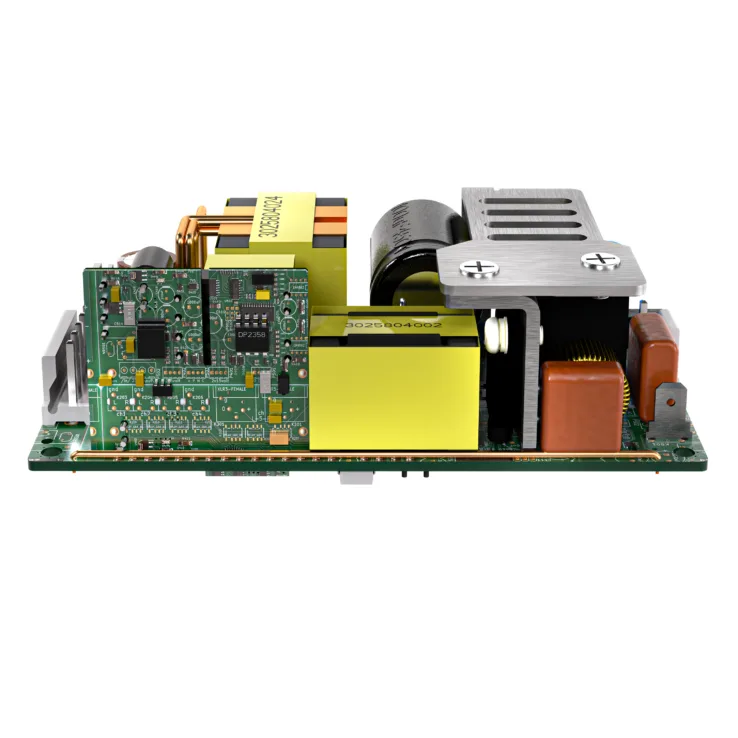

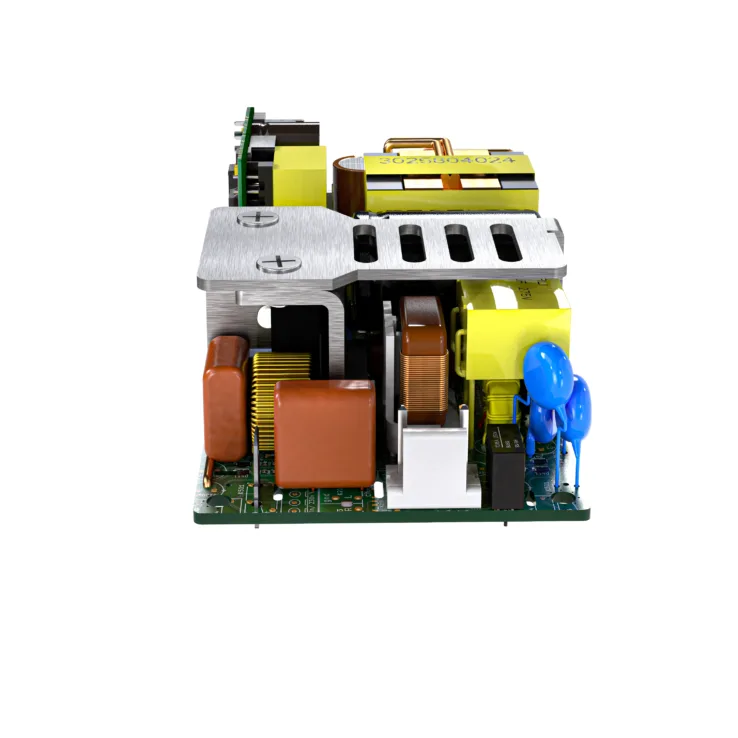

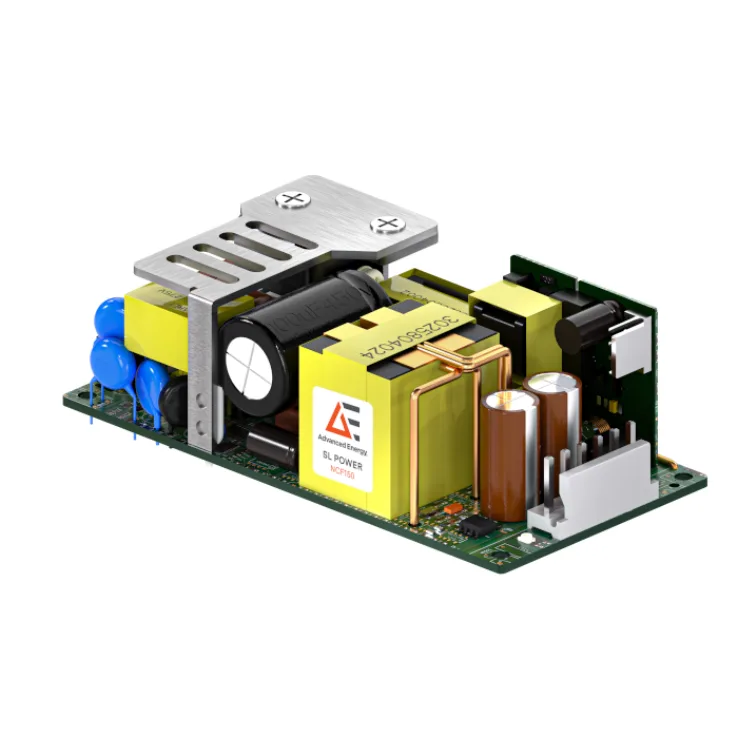

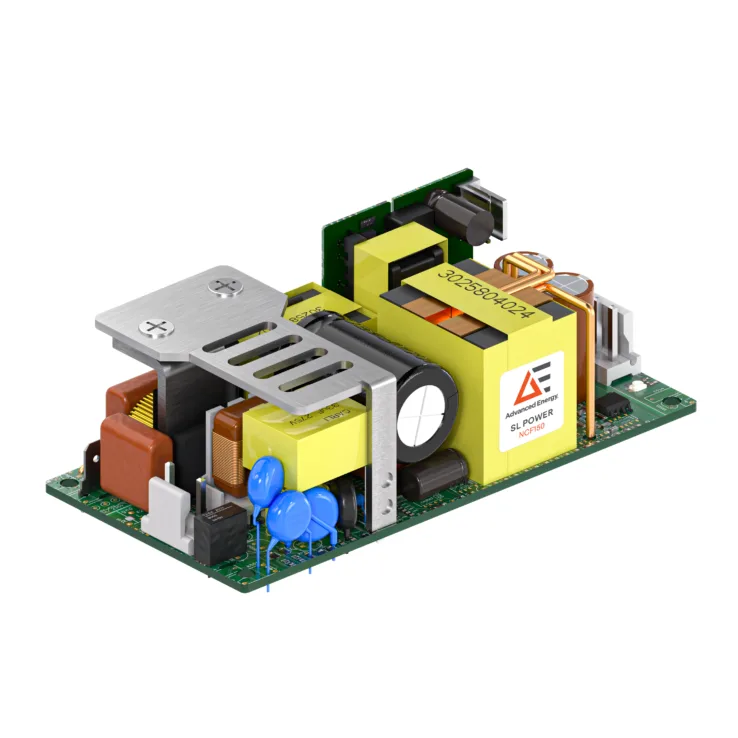

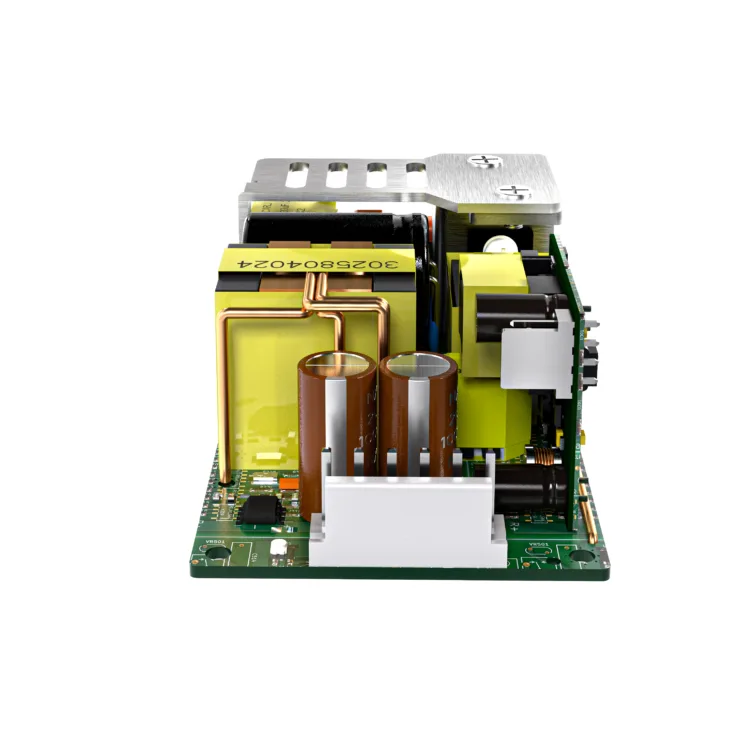

SL Power NCF150 Series Open Frame Power Supplies 150W
Download Datasheet
| Models: |
|
| Manufacturer: | Advanced Energy |
| Type: | Open Frame Power Supplies |
SL Power NCF150 Series Features:
- 150 W max output power
- 4.0” x 2.0” x 1.26”
- Industrial/Medical safety
- -40°C to 70°C with derating
- 5 V standby @ 0.5 A
- 12 V fan output @ 0.4 A
- High efficiency: 90% typical
- ± 10% adjustment range
| Wattage | 150 | 150 | 150 | 150 | 150 | 150 |
|---|---|---|---|---|---|---|
| Input Voltage | 85-264VAC | 85-264VAC | 85-264VAC | 85-264VAC | 85-264VAC | 85-264VAC |
| Output Current | 12.5A (with 200LFM Forced Air) | 10A (with 200LFM Forced Air) | 7.9A (with 200LFM Forced Air) | 6.25A (with 200LFM Forced Air) | 4.16A (with 200LFM Forced Air) | 3.13A (with 200LFM Forced Air) |
| Output Voltage | 12V | 15V | 19V | 24V | 36V | 48V |
| Dimensions | 101.6 × 50.8 × 32.1 mm | 101.6 × 50.8 × 32.1 mm | 101.6 × 50.8 × 32.1 mm | 101.6 × 50.8 × 32.1 mm | 101.6 × 50.8 × 32.1 mm | 101.6 × 50.8 × 32.1 mm |
| Working Temperature | -20°C to +70°C (output power derated to 50% load at 70°C). | |||||
| Safety Standards | UL60601; CSA No. 60601; CB Report EN60601-1 / IEC60601-1 | |||||
| EMC Standards | EMC: CISPR32 / EN55032 Class B; EN61000-3-2 Class A; IEC61000-3-3; IEC61000-4-2, -4-3, -4-4, -4-5, -4-6, -4-8, -4-11; IEC60601-1-2, 4th Edition | |||||
