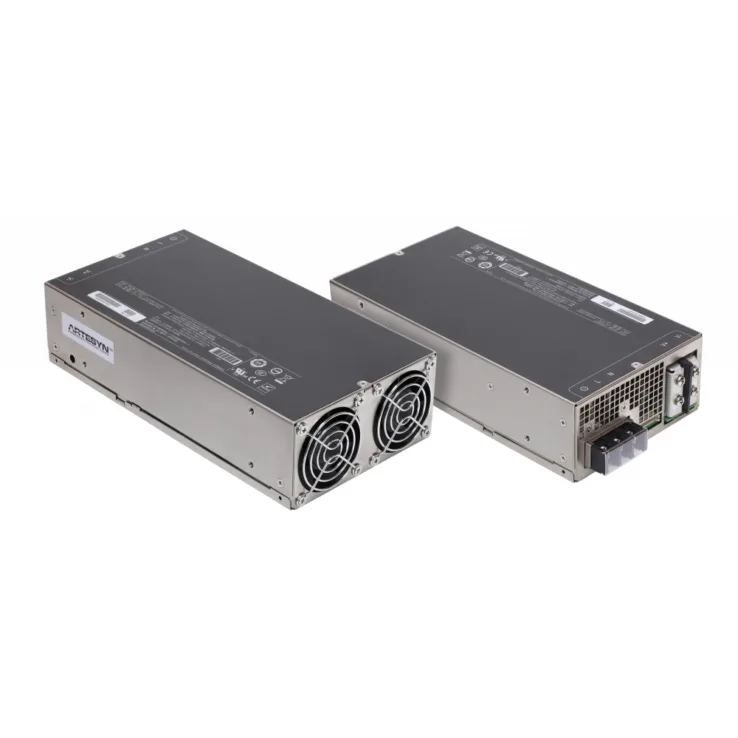

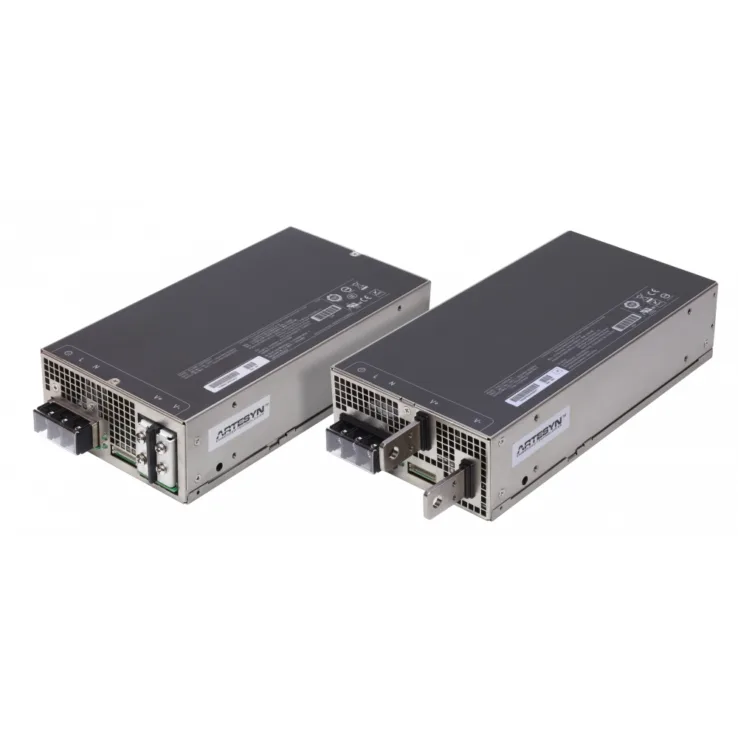

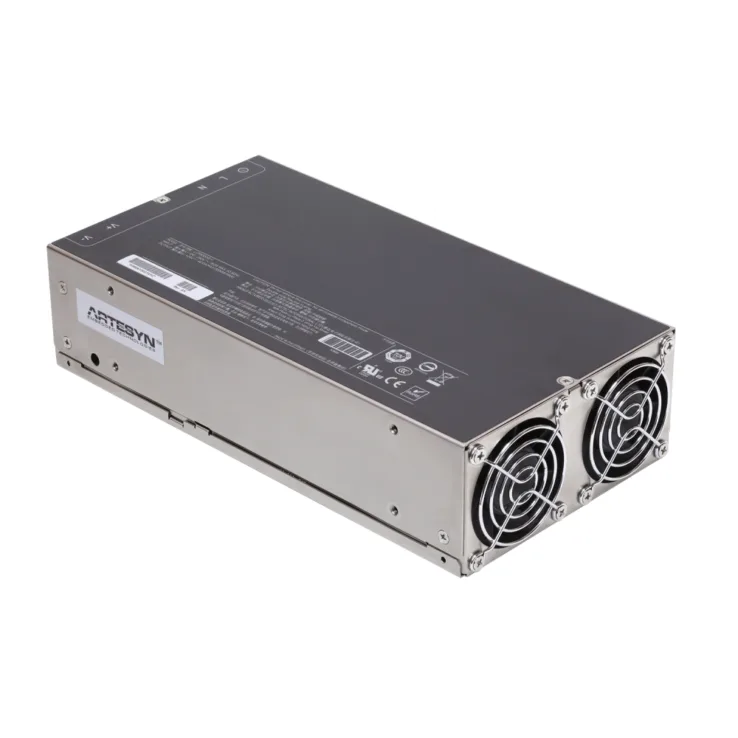

ARTESYN LCM1000 Enclosed Power Supplies 1000W

ARTESYN LCM1000 Features:

1000 W high-power AC/DC power supply for industrial and medical applications.
Single DC output with 12 V, 15 V, 24 V, 28 V, 36 V and 48 V variants.
±10% output-voltage adjustment.
Optional 5 V / 2 A standby (housekeeping) output.
>90% typical efficiency at full load / 230 V AC.
0.99 typical power factor and EN 61000-3-2 compliance.
DSP-controlled architecture.

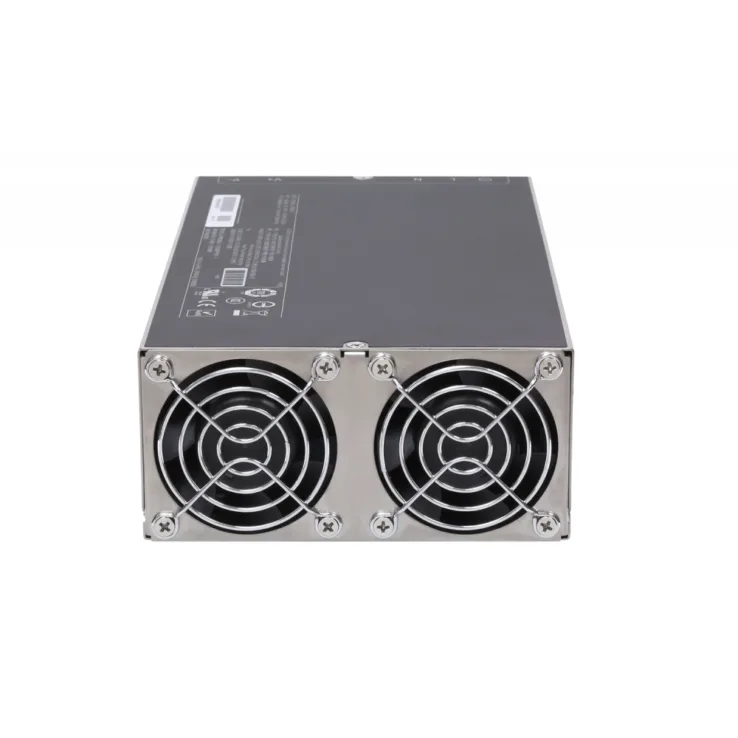

Variable-speed Smart Fans for thermal management and low acoustic noise.
<45 dBA fan noise at 100% load and 30°C.
Supports reverse airflow at full rating.
Optional conformal coating.
Constant-current operation option.
Margin programming and remote-sense capability.
OR-ing FET and forced load sharing.
Up to 10 units can operate in parallel without I-share, or up to 4 with I-share connected.
Short-circuit, over-current, over-voltage and over-temperature protection.

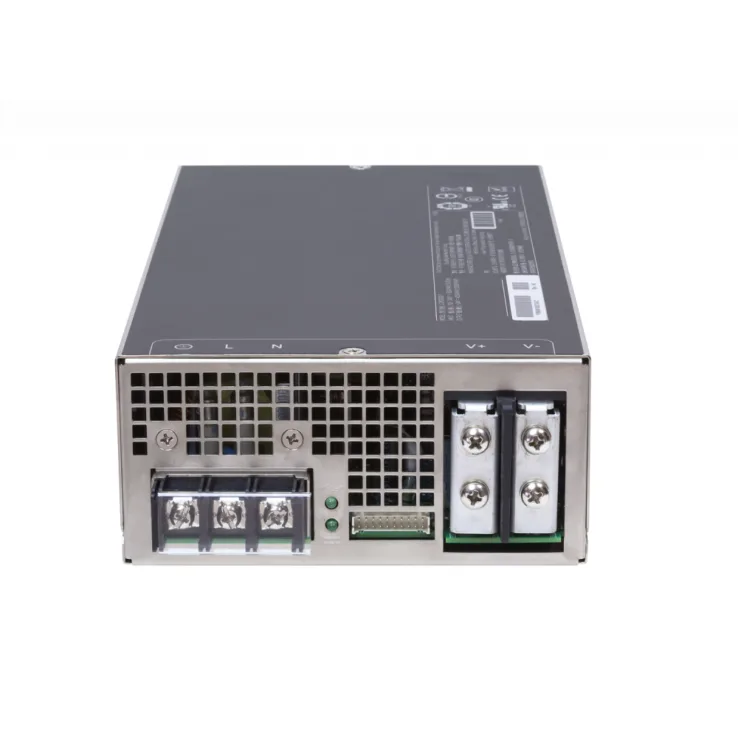

AC_OK and DC_OK LED status indicators.
I²C communication and control/status connections.
SEMI F47 compliance at high line.
Industrial and medical safety approvals, including reinforced 2×MOPP primary-to-secondary isolation.
Operating altitude up to 5,000 m.
Minimum 300,000-hour MTBF, with the datasheet also stating the supply shall demonstrate an MTBF level above 500,000 hours.
3-year warranty.

Spec	LCM1000L	LCM1000N	LCM1000Q	LCM1000R	LCM1000U	LCM1000W
Wattage	1000	1000	1000	1000	1000	1000
Input Voltage	90–264 VAC, nominal 115/230 V AC	90–264 VAC, nominal 115/230 V AC	90–264 VAC, nominal 115/230 V AC	90–264 VAC, nominal 115/230 V AC	90–264 VAC, nominal 115/230 V AC	90–264 VAC, nominal 115/230 V AC
Output Current	83.3 A	66.7 A	42 A	40 A	27.8 A	20.8 A
Output Voltage	12 VDC	15 VDC	24 VDC	28 VDC	36 VDC	48 VDC
DC output adjustment	10.8-13.2 V	13.5–16.5 V	21.6–26.4 V	25.2–30.8 V	32.4–39.6 V	40.8–52.8 V
Dimensions	61 × 132 × 254	61 × 132 × 254	61 × 132 × 254	61 × 132 × 254	61 × 132 × 254	61 × 132 × 254
Working Temperature	-20°C to +70°C, with linear 50% derating from 50°C to 70°C
Safety Standards	UL/CSA 62368-1, ANSI/AAMI ES60601-1, EN 62368-1, EN 60601-1, IEC 60601-1, CE LVD, CB, BSMI, CCC, UKCA
EMC Standards	EN 61000 immunity; EN 61000-3-2 harmonics; IEC 60601-1-2 4th Edition; EMI Class A, Class B optional
