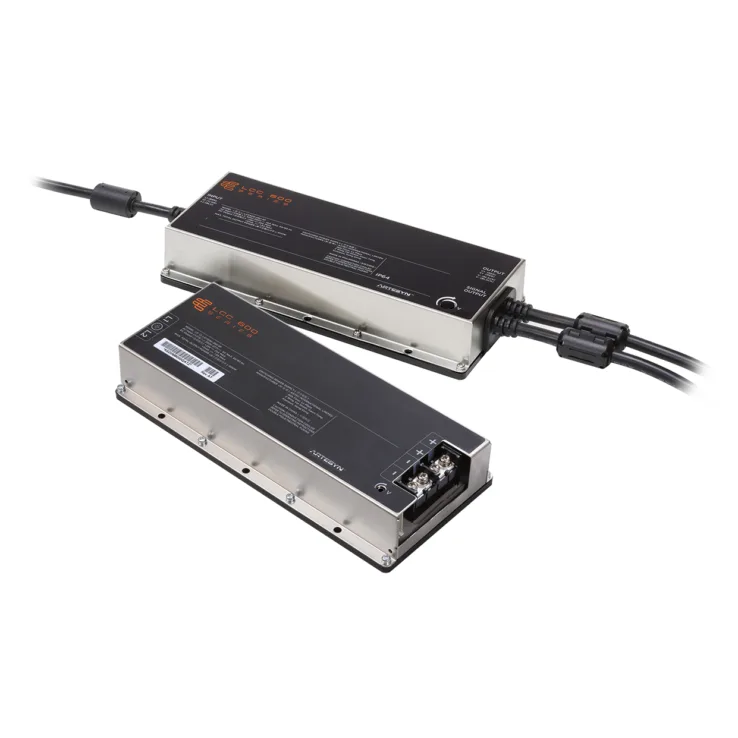

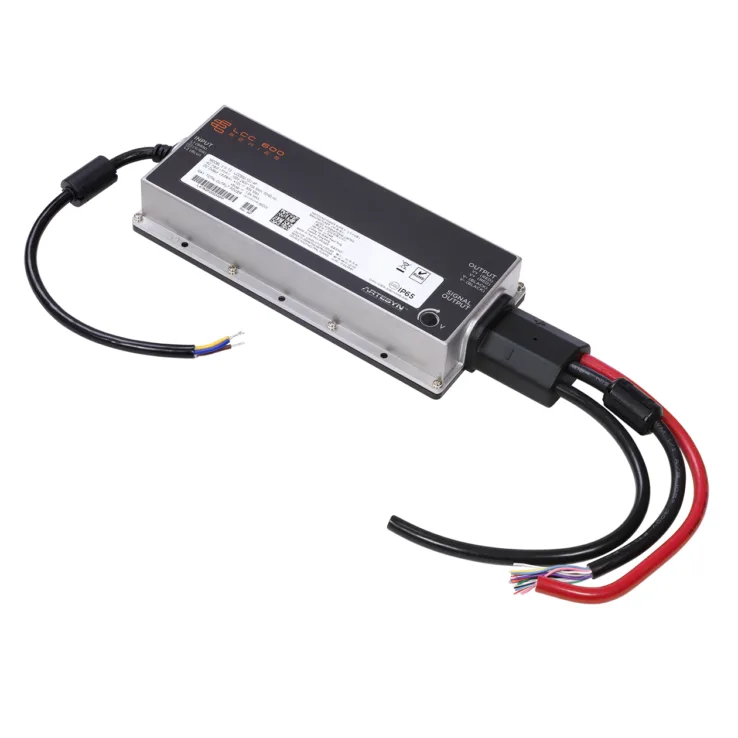

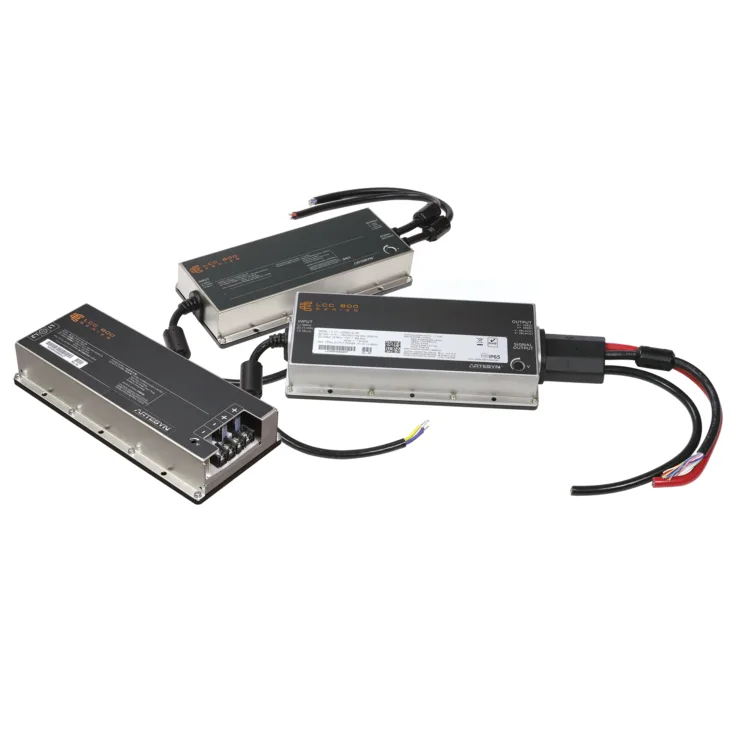

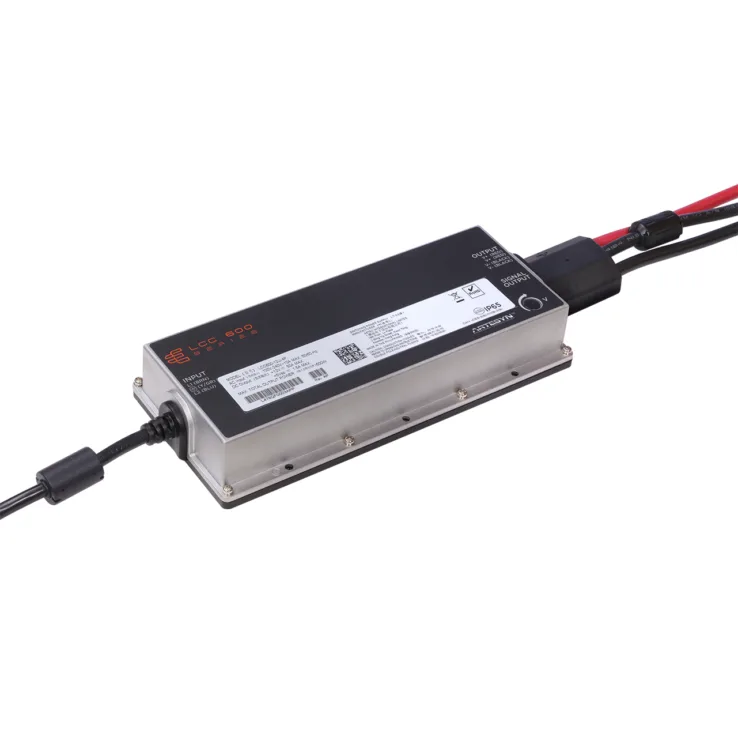

ARTESYN LCC600 Enclosed Power Supplies 600W
Download Datasheet
| Models: |
|
| Manufacturer: | Advanced Energy |
| Type: | Enclosed Power Supplies |
ARTESYN LCC600 Features:
FEATURES
- 600 W full power at elevated temperatures
- Wide operating temperature range (-40°C to 85°C baseplate)
- Adjustable output
- Remote output On/Off
- AC_OK; DC_OK signals
- 5 V standby voltage
- Active current share
- Conduction-cooled/fanless
- I²C / PMBus
- Medical and ITE Safety
- Suited for BF-type applications
- Active power factor correction
- IP Rating: -4P / -4PR variants: IP65
- Optional 277 Vac input variant
COMPLIANCE
- EMI Class B
- EN61000 Immunity
SAFETY
- UL + CSA: 62368-1 2nd Ed.; ANSI ES60601-1 3rd Ed.; UL 8750; CSA-C22.2 No. 250.13
- TÜV: 62368-1 2nd Ed.; 60601-1 3rd Ed.; EN 61347-1; -2-13
- CB Scheme: IEC 60950-1; IEC 62368-1; IEC 60601-1; IEC 61347-1; -2-13
- China: CCC
- CE mark/UKCA mark
- LCC600 tested according to the medical standard IEC 60601-1-2 4th Edition.
| Wattage | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 |
|---|---|---|---|---|---|---|---|---|---|
| Input Voltage | 90 - 264 | 90 - 264 | 180-305 | 90-264 | 180-305 | 90-264 | 180-305 | 90-264 | 180-305 |
| Output Current | 11.1 | 12.5 | 12.5 | 16.7 | 16.7 | 25*** | 25*** | 50 | 50 |
| Output Voltage | 54V | 48V | 48V | 36V | 36V | 28V | 28V | 12V | 12V |
| DC output adjustment | 44 - 54 V | 44 - 54 V | 44 - 54 V | 32 - 38 V | 32 - 38 V | 24 - 30 V | 24 - 30 V | 12 - 15V | 12 - 15V |
| Dimensions | 228 × 101 × 39.8 mm (L × W × H) | 228 × 101 × 39.8 mm (L × W × H) | 228 × 101 × 39.8 mm (L × W × H) | 228 × 101 × 39.8 mm (L × W × H) | 228 × 101 × 39.8 mm (L × W × H) | 228 × 101 × 39.8 mm (L × W × H) | 228 × 101 × 39.8 mm (L × W × H) | 228 × 101 × 39.8 mm (L × W × H) | 228 × 101 × 39.8 mm (L × W × H) |
| Working Temperature | -40°C to +85°C Baseplate temperature | ||||||||
| Safety Standards | UL/CSA 62368-1 2nd Ed.; ANSI ES60601-1; UL 8750; CSA-C22.2 No. 250.13; TÜV 62368-1 2nd Ed.; 60601-1 3rd Ed.; EN 61347-1/-2-13; CB Scheme IEC 60950-1, IEC 62368-1, IEC 60601-1, IEC 61347-1/-2-13; China CCC; CE/UKCA | ||||||||
| EMC Standards | EMI Class B; EN 61000 Immunity; FCC Class B; CISPR22/EN55022 Class B; designed to meet EN61000-4-2/-3/-4/-5/-8/-11, EN60601-1-2 and EN55024. | ||||||||
