Advanced Energy

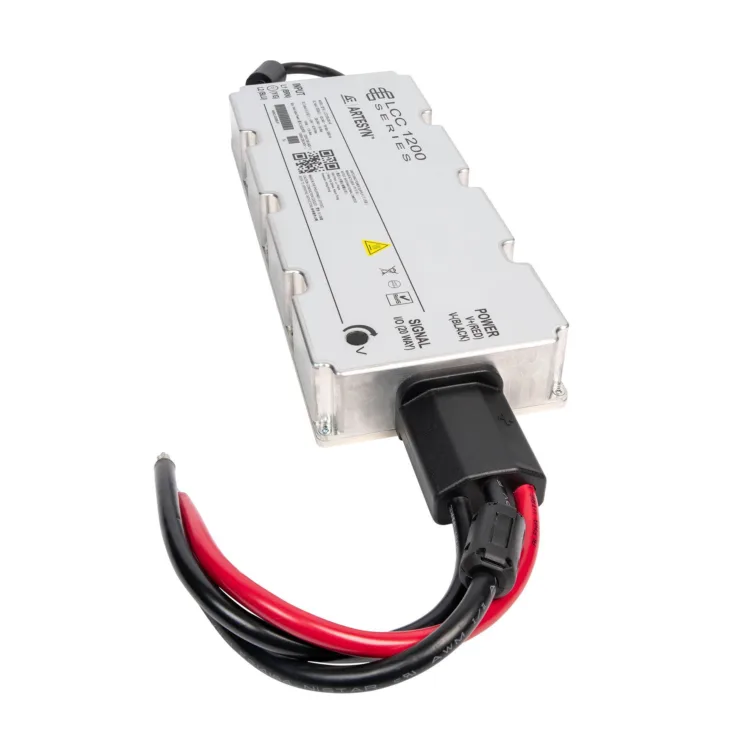

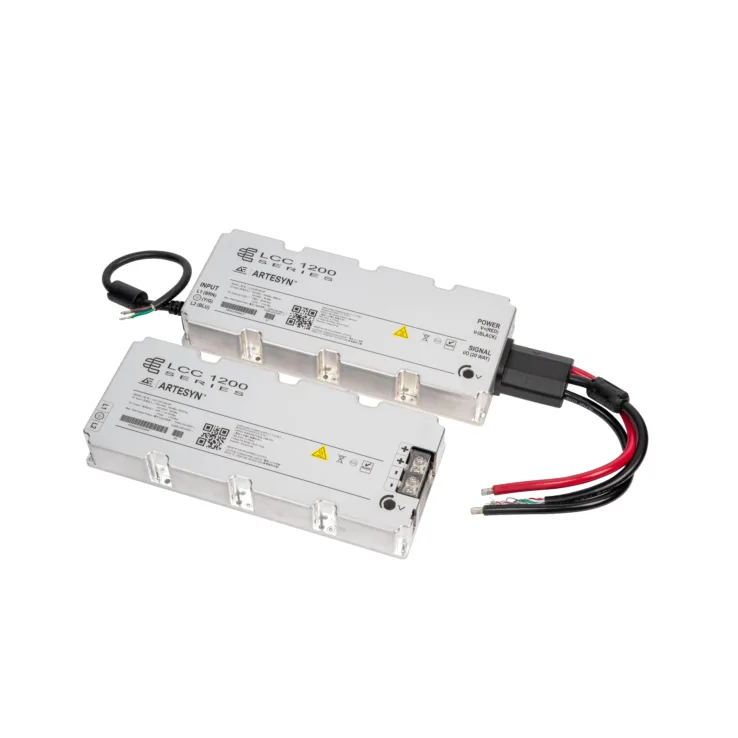

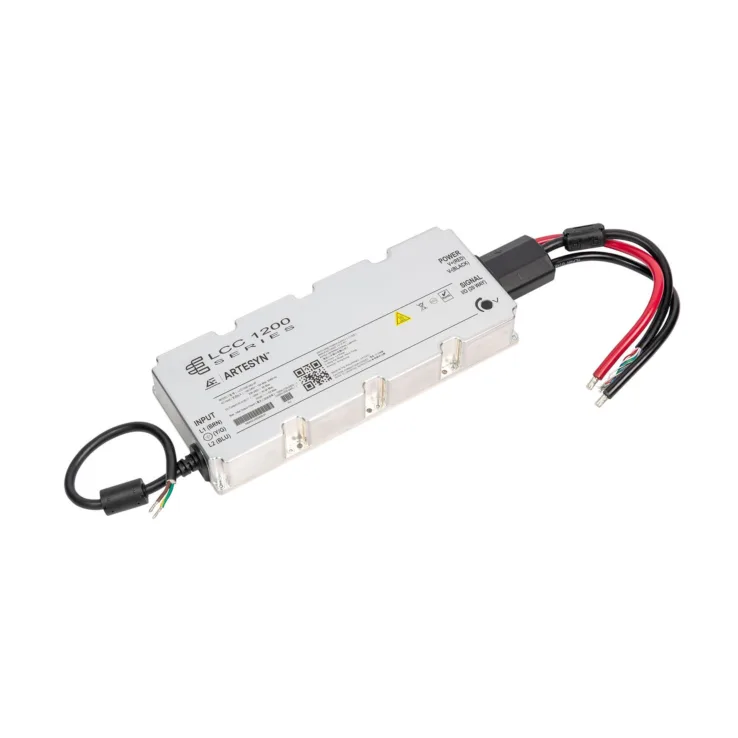

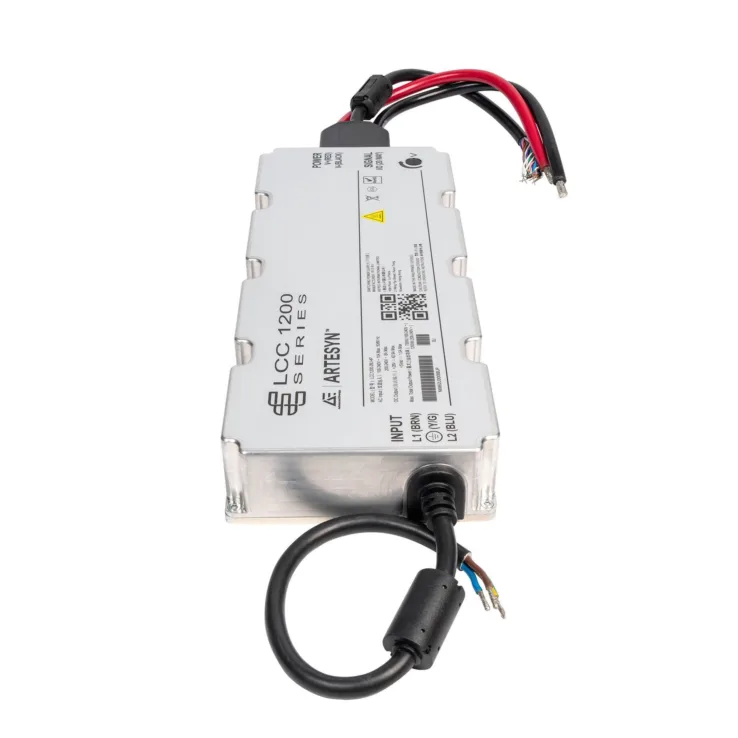

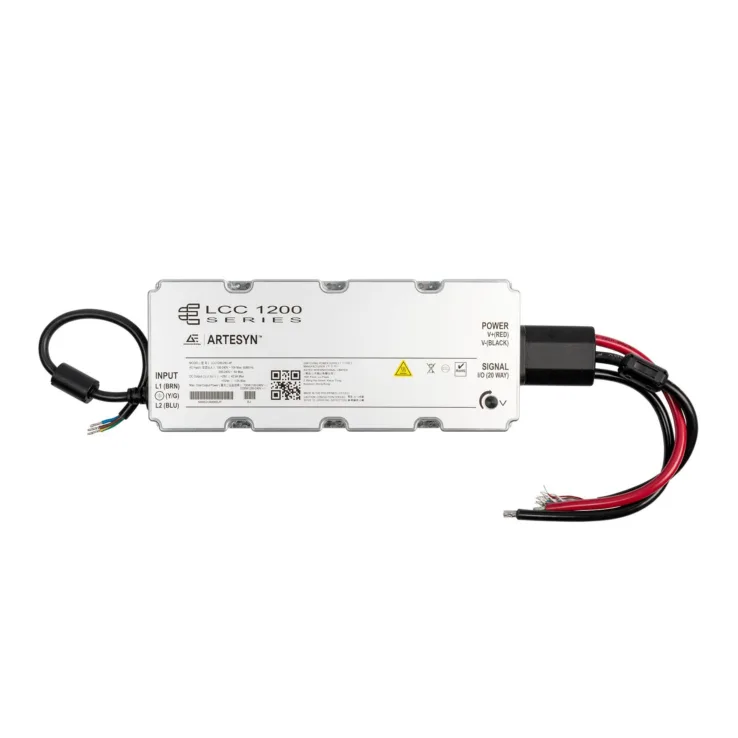

ARTESYN LCC1200 Enclosed Power Supplies 1200W
Download Datasheet
| Models: |
|
| Manufacturer: | Advanced Energy |
| Type: | Enclosed Power Supplies |
ARTESYN LCC1200 Features:
FEATURES
- 1200 W full power at elevated temperatures
- Wide operating temperature range (-40°C to 85°C baseplate)
- Adjustable output voltage for CV mode
- Adjustable output current level for CC mode via CC_SET_POINT pin
- Operate as constant voltage source or constant current source via selector pin
- Remote output On/Off
- AC_OK; DC_OK signals
- 5 V standby voltage
- Active current share
- Conduction-cooled/fanless
- I²C / PMBus
- ITE Safety
- Active power factor correction
- 4P Model: IP65
- 9P Model: IP20
COMPLIANCE
- EMI Class B
- EN61000 Immunity
SAFETY
- UL + CSA: IEC 62368-1
- Demko: IEC 62368-1
- CB Scheme: IEC 60950-1, IEC 62368-1
- CCC
- CE Mark
- UKCA Mark
| Wattage | 1200 | 1200 | 1200 | 1200 | 1200 | 1200 |
|---|---|---|---|---|---|---|
| Input Voltage | 90 to 264 VAC (Safety rating: 100 to 240 VAC) | 90 to 264 VAC (Safety rating: 100 to 240 VAC) | 90 to 264 VAC (Safety rating: 100 to 240 VAC) | 90 to 264 VAC (Safety rating: 100 to 240 VAC) | 90 to 264 VAC (Safety rating: 100 to 240 VAC) | 90 to 264 VAC (Safety rating: 100 to 240 VAC) |
| Output Current | 42.9A | 42.9A | 50A | 50A | 25A | 25A |
| Output Voltage | 28V | 28V | 24V | 24V | 48V | 48V |
| DC output adjustment | 24-30V | 24-30V | ||||
| Dimensions | 279.4 × 114.3 × 39.88 mm | 279.4 × 114.3 × 39.88 mm | 279.4 × 114.3 × 39.88 mm | 279.4 × 114.3 × 39.88 mm | 279.4 × 114.3 × 39.88 mm | 279.4 × 114.3 × 39.88 mm |
| Working Temperature | -40°C to +85°C Baseplate temperature | |||||
| Safety Standards | IEC 62368-1, IEC 62368-1, IEC 60950-1, IEC 62368-1 | |||||
| EMC Standards | EMI Class B, EN61000 Immunity | |||||
