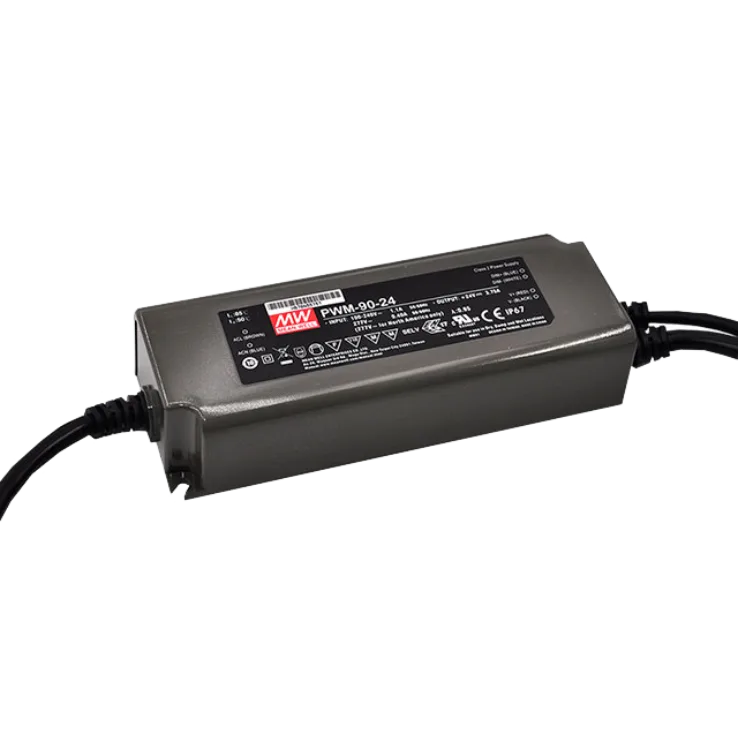

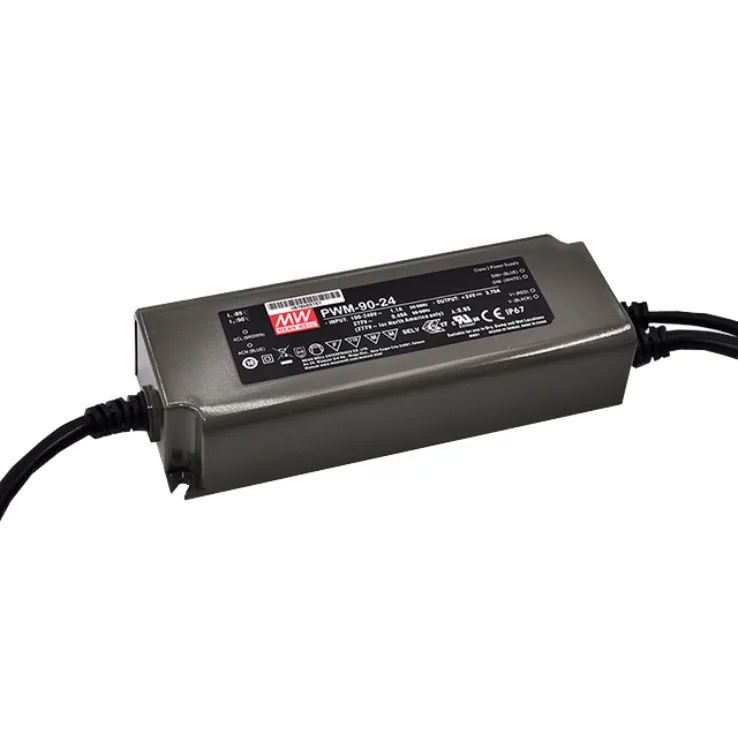

PWM-90 Series 0-10V Dimmable Constant Voltage LED Drivers 90W

Download Datasheet
Models:
  • PWM-90-12
  • PWM-90-24
  • PWM-90-36
  • PWM-90-48
Manufacturer: Mean Well
Type: Constant Voltage LED Drivers

PWM-90 Series Features:

Constant voltage PWM form output

0~10Vdc or PWM input signal dimming function

Protections: Short circuit/ Overload/ Over voltage/ Over temperature

Other features:

  • Universal AC input/ Full range (up to 305VAC)
  • Dimming range: 0~100%
  • High efficiency up to 90.5%
  • Class II power unit, no FG
  • Suitable for dry/ damp/ wet locations
  • No load power consumption <0.5W
  • 5 years warranty
Wattage 90 90 90 90
Input Voltage 90~305VAC 127~431VDC 90~305VAC 127~431VDC 90~305VAC 127~431VDC 90~305VAC 127~431VDC
Output Voltage 12 24 36 48
Output Voltage Options Single Single Single Single
Dimensions 171x 63x 37.5 171x 63x 37.5 171x 63x 37.5 171x 63x 37.5
Working Temperature -40-+85°C
Safety Standards UL8750, CSA C22.2 No. 250.13-12, EN61347-1, EN61347-2-13, EN62384 independent, IP67 approved; Design refer to EN60335-1
EMC Standards Compliance to EN55015, EN61000-3-2 Class C (b '60% load) ; EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024, light industry level (surge L-N: 2KV), criteria A
